Dold Monitoring Relay 2 Phase DPDT DIN Rail 80-230 V AC/DC, 10mA to 3A Current RN5883.12/61 AC/DC80-230V 10-3000mA 0-10s

Free Delivery in India | Lowest Global Shipping Charges

Dold Monitoring Relay 2 Phase DPDT DIN Rail 80-230 V AC/DC, 10mA to 3A Current RN5883.12/61 AC/DC80-230V 10-3000mA 0-10s

Name: Dold Monitoring Relay 2 Phase DPDT DIN Rail 80-230 V AC/DC, 10mA to 3A Current RN5883.12/61 AC/DC80-230V 10-3000mA 0-10s
Brand: Dold
SKU: 251152
Price: 951.08 USD
Availability: InStock



Category Monitoring Relay Brand Dold Condition New

Specifications

Country of Origin	Germany
Brand	Dold
Height	90mm
Length	71mm
Model	RN5883.12/61 AC/DC80-230V 10-3000mA 0-10s
IP Rating	IP30, IP20
Width	52.5mm
Mount Type	DIN Rail
Series	RN5883
Maximum Operating Temperature	60°C
Contact Configuration	DPDT
Time Delay	0 to 10 s
Minimum Operating Temperature	+60°C
Terminal type	Screw
Standards/Approvals	CE, CCC, UL, cUL, RoHS
Supply DC Voltage	230 V ac
Supply AC Voltage	230, 80V ac
Minimum Current Sensed	10mA
Maximum Current Sensed	3A
Current Sensitivity	Residual
Relay Contact Current	3A

Key Features

Detects earth faults with sensitivity range from 10mA to 3A.
Features adjustable switching delay from 0 to 10 seconds.
Equipped with manual reset along with alarm and pre-warning capabilities.
Includes LED indicators to show operational and fault statuses clearly.
Complies with CE, CCC, UL, cUL, and RoHS standards ensuring safety.
Compact design for DIN rail mounting with robust screw terminal connections.
Operates reliably at temperatures up to 60°C with IP30 and IP20 protection ratings.

Product Description

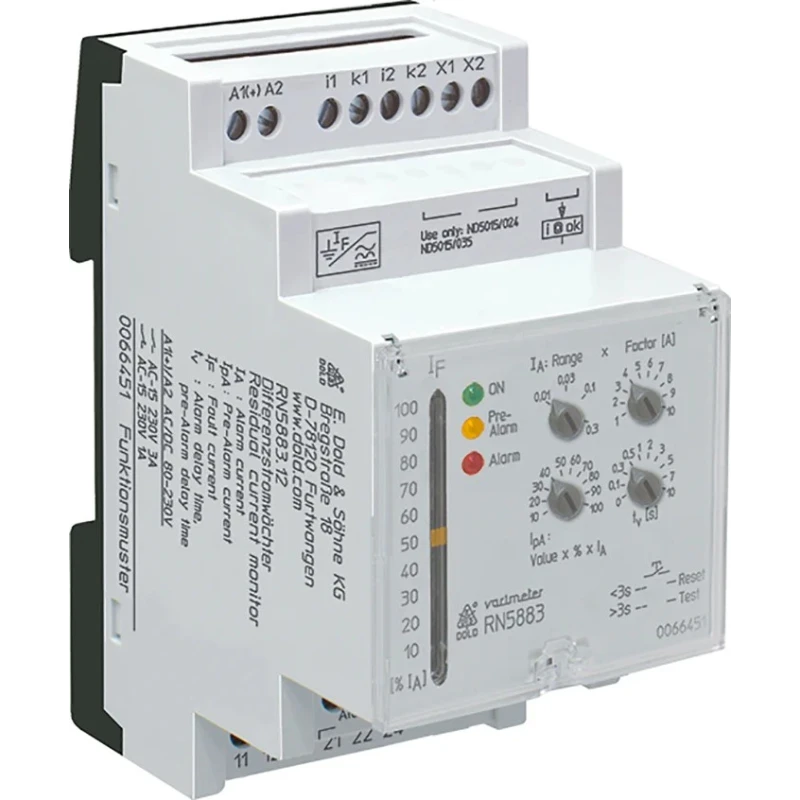

Dold RN5883.12/61 AC/DC80-230V 10-3000mA 0-10s Monitoring Relay is engineered for accurate monitoring and protection of AC and DC electrical systems, ideal for industrial, automation, and electrical applications requiring residual current detection.

This monitoring relay incorporates a 2-phase DPDT contact configuration mounted on a DIN rail, enabling easy integration into electrical panels. It has a high sensitivity with adjustable current detection ranges from 10mA to 3A, allowing early detection of earth faults in grounded voltage systems. The device supports adjustable time delays up to 10 seconds to reduce nuisance trips while ensuring prompt fault response.

Additional features include manual reset with alarm and pre-warning capabilities, LED indications for operation, pre-alarm, alarm, and fault current status. It includes a test function and an LED-chain indicating fault current, enhancing maintenance and troubleshooting efficiency. Optional analog output and broken wire detection support advanced system monitoring.

The unit is designed to withstand temperatures up to 60°C and offers IP30 and IP20 rated protection. It meets numerous international standards including CE, CCC, UL, cUL, and RoHS, guaranteeing compliance and safety in demanding industrial environments. The compact form factor measures 90mm in height, 71mm in length, and 52.5mm in width.

This Monitoring Relay safeguards systems by preventing fires and ensuring system availability through early fault detection, suitable for AC/DC mains with frequencies up to 250 Hz. Its sealed transparent cover protects setting switches against tampering, adding an extra layer of security.

Applications include industrial automation, electrical installations requiring residual current monitoring, and protection of critical electrical equipment in manufacturing and commercial facilities. Users benefit from enhanced plant availability and preventive system protection, making this product a reliable choice for advanced electrical safety.

Explore EnvMart’s extensive range of monitoring and control relays for comprehensive solutions to electrical protection and automation needs. Detects earth faults with sensitivity range from 10mA to 3A. Adjustable switching delay from 0 to 10 seconds.

Manual reset with alarm and pre-warning functions. LED indicators for operational and fault statuses. Compliance with CE, CCC, UL, cUL, and RoHS certifications. Compact DIN rail mount design with screw terminal connections.

Operates at temperatures up to 60°C with IP30/IP20 protection.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This monitoring relay has a current sensitivity range from 10mA to 3A, allowing for the detection of earth faults in grounded voltage systems.

It features an adjustable switching delay that can be set from 0 to 10 seconds to help reduce nuisance trips while ensuring prompt fault response.

The relay is designed with a 2-phase DPDT (Double Pole Double Throw) contact configuration, suitable for various applications in electrical systems.

The compact design measures 90mm in height, 71mm in length, and 52.5mm in width, making it suitable for DIN rail mounting.

It operates reliably at temperatures up to 60°C, ensuring functionality in demanding environments.

This model is designed for DIN rail mounting, which facilitates easy integration into electrical panels.

It has IP30 and IP20 protection ratings, which provide a degree of protection against solid objects and moisture.

It complies with several international standards including CE, CCC, UL, cUL, and RoHS, ensuring safety and regulatory compliance.

Yes, it is equipped with LED indicators that clearly show operational and fault statuses, enhancing monitoring capabilities.

It features screw terminal connections, which provide secure and reliable electrical connections.

It is suitable for industrial automation, electrical installations requiring residual current monitoring, and protection of critical electrical equipment.

The relay operates with a supply voltage range of 80-230 V AC and DC, making it versatile for different electrical systems.
