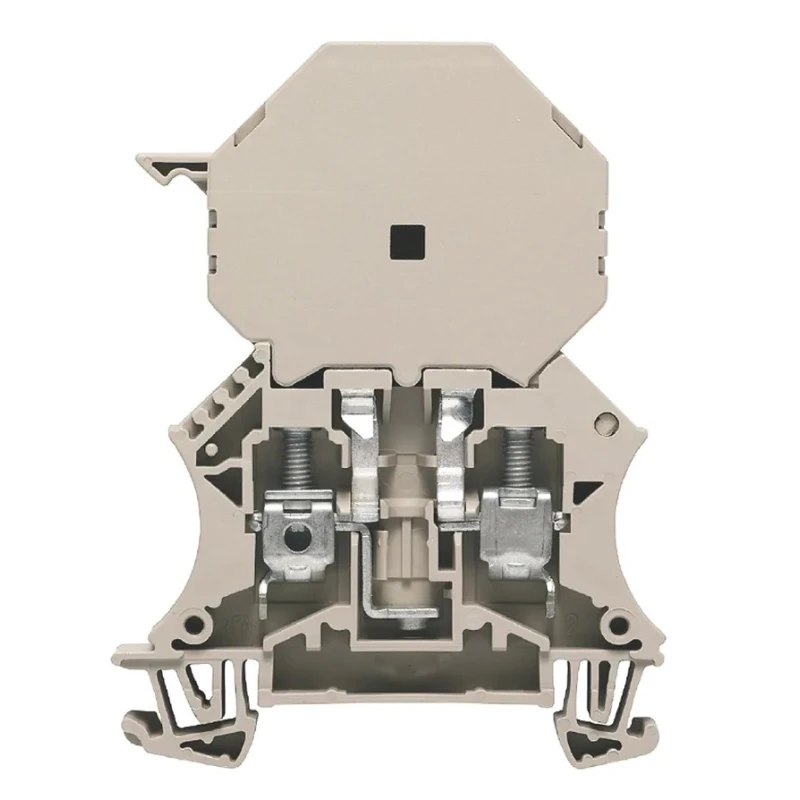

Weidmüller Beige W Series 1-Level Fused DIN Rail Terminal 70V AC 6.3A Screw Connection 1014200000

Weidmüller 1014200000 W Series 1-Level Fused DIN Rail Terminal in beige is engineered for reliable electrical connections in industrial and commercial settings. This fused DIN rail terminal block offers a screw connection type, ensuring strong and maintenance-friendly wiring termination.

Manufactured from high-quality nylon 6.6, the terminal is self-extinguishing to UL94V-0 standards and rated for continuous operation at temperatures up to 120°C, with short-term tolerance of 180°C. It is designed exclusively for symmetric 'Top Hat' DIN rails per BS5584:1978 and EN 50022 standards.

The integrated WSI fuse terminals enhance circuit safety by providing overcurrent protection and accommodate wire sizes ranging from AWG20 to AWG8. The terminal block supports currents up to 6.3 A and operates reliably within a wide temperature range between -50°C and 120°C.

The current bars are constructed with 10-mm electrolytic copper to maintain superior electrical conductivity and continuous current loading capacity beyond the nominal rating. The design conforms to BS 3042 for touch-proof safety, making it suitable for use in electrical distribution, automation systems, and control panels in manufacturing, industrial, commercial, and building applications.

This product is a preferred choice for professional engineers and installers who require robust and safe terminal block solutions with integrated fuse protection. Manufactured in the Czech Republic, it ensures compliance with quality and safety standards.

Constructed from nylon 6.6 with a continuous temperature rating of 120°C and UL94V-0 self-extinguishing properties. Suitable for top hat DIN Rail mounting with a pitch of 11.9 mm and touch-proof according to BS 3042. Current rating of 6.3 A, compatible with wire sizes from AWG20 to AWG8.

Fused design enhances circuit protection with integrated WSI fuse terminals. Operating temperature range from -50°C to 120°C ensures reliability in harsh environments. Screw clamp connection type provides secure and durable wiring termination.

Manufactured in the Czech Republic with robust electrolytic copper current bars. Explore more reliable DIN Rail Terminal Blocks and industrial connectors at EnvMart for your electrical assembly and automation needs.
