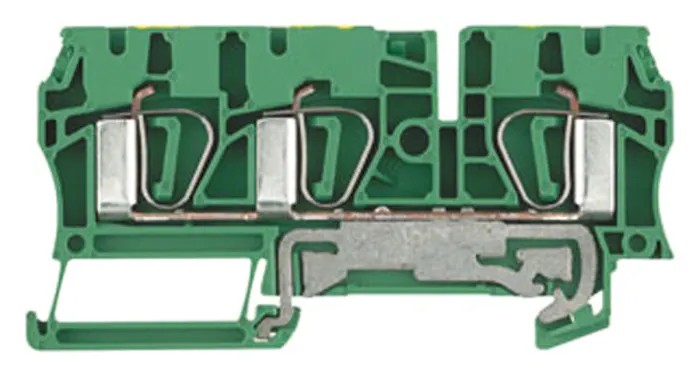

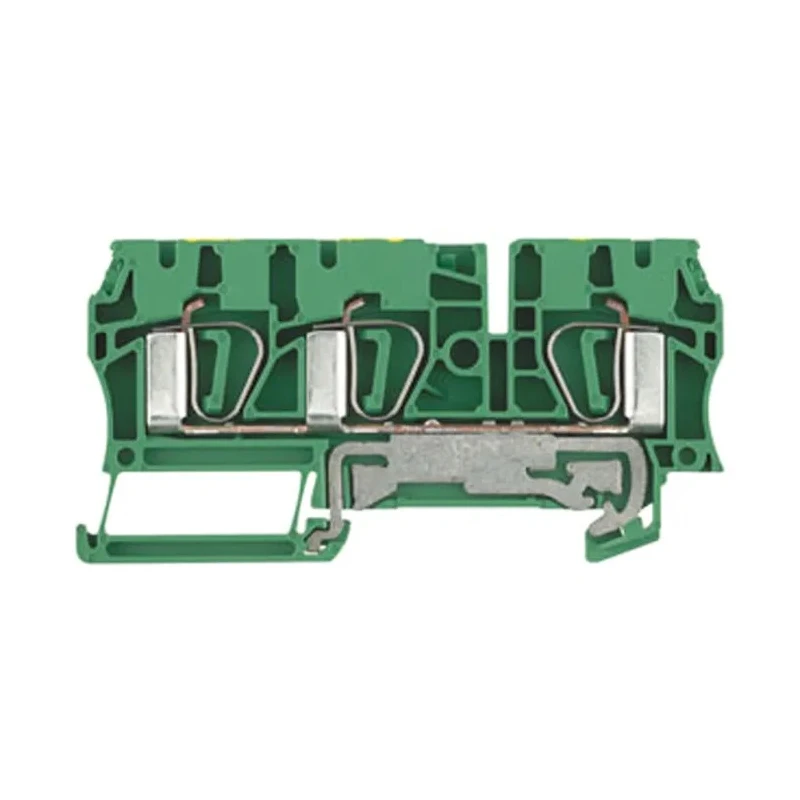

Weidmüller Z Series PE Terminal Clamp 1-Level Green, Yellow, 4mm², 800V, 480A 7904170000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 800V |
| Brand | Weidmüller |
| Colour | Green, Yellow |
| Series | Z |
| Termination Type | Clamp |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -50°C |
| Pitch | 6.1mm |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 10AWG |
| Cable CSA | 4mm² |
| Terminal Block Current | 480A |
Key Features
- Designed for 4mm² cable cross-sectional area facilitating secure wiring.
- Supports a high terminal block current rating of 480 amps.
- Operates safely over a voltage of up to 800 volts.
- Features tension clamp technology suited for various conductor types.
- Suitable temperature range from -50°C minimum to 120°C maximum for diverse industrial environments.
- Constructed with green and yellow colors for easy phase identification.
- Pitch of 6.1 mm ensures compatibility with standard DIN rail systems.
- Snap-on mounting and spring connection enable efficient installation and maintenance.
Product Description
Weidmüller 7904170000 Z Series PE Terminal Clamp is a high-performance DIN rail terminal block designed for industrial and electronic applications requiring reliable earth conductor connections. This model features tension clamp technology which provides a universal contact system compatible with all common conductor types, ensuring a strong and vibration-resistant connection.
The terminal supports a cable cross-sectional area of 4mm² and accommodates wire sizes ranging from 26 AWG to 10 AWG. It is rated for 480 amps current and can safely operate at voltages up to 800V. The device sustains operating temperatures between -50°C and 120°C, making it suitable for a wide range of environments including industrial automation, electrical panels, and power distribution systems.
This product is finished in green and yellow for easy phase identification in earth conductor applications. Its 1-level design and 6.1 mm pitch make it adaptable for DIN rail mounting in control cabinets and electrical enclosures. The clamp type termination ensures quick and secure wire connections without the need for additional tools.
Additional features include spring connection and snap-on mounting which facilitate fast and tool-free installation, helping reduce setup times in industrial and manufacturing settings. Although the product has no hazardous area certification, it adheres to robust construction standards suitable for demanding electrical environments.
Operates at voltages up to 800V and current ratings of 480A. Supports 4mm² cable cross-sections with tension clamp technology. Wide temperature range suitability from -50°C to 120°C. Snap-on mounting and spring connection for ease of installation.
Colors green and yellow designed for clear earth conductor marking.
This terminal block is ideal for use in industrial supplies, electrical power distribution, manufacturing automation, and control system installations. It supports efficient and safe wiring in professional electrical setups. Browse the Electronics & Electricals category at EnvMart for a comprehensive range of DIN Rail Terminal Blocks and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this terminal clamp is 800 volts.
This terminal clamp has a current rating of 480 amps.
It supports a cable cross-sectional area of 4mm².
The operating temperature range for this model is from -50°C to 120°C.
It uses a clamp termination type, which provides a strong and vibration-resistant connection.
Installation is facilitated through snap-on mounting and spring connection, allowing for quick and tool-free setup.
The pitch size of this terminal block is 6.1 mm, making it compatible with standard DIN rail systems.
It can accommodate wire sizes ranging from 26 AWG to 10 AWG.
The terminal clamp is designed in green and yellow colors for easy phase identification.
Yes, it is suitable for various industrial applications including electrical power distribution and manufacturing automation.
The country of origin for this terminal clamp is India.
This terminal block has a 1-level design.
