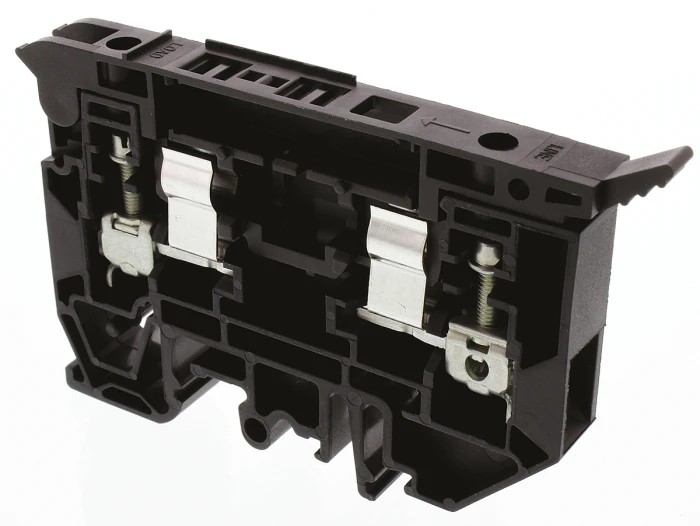

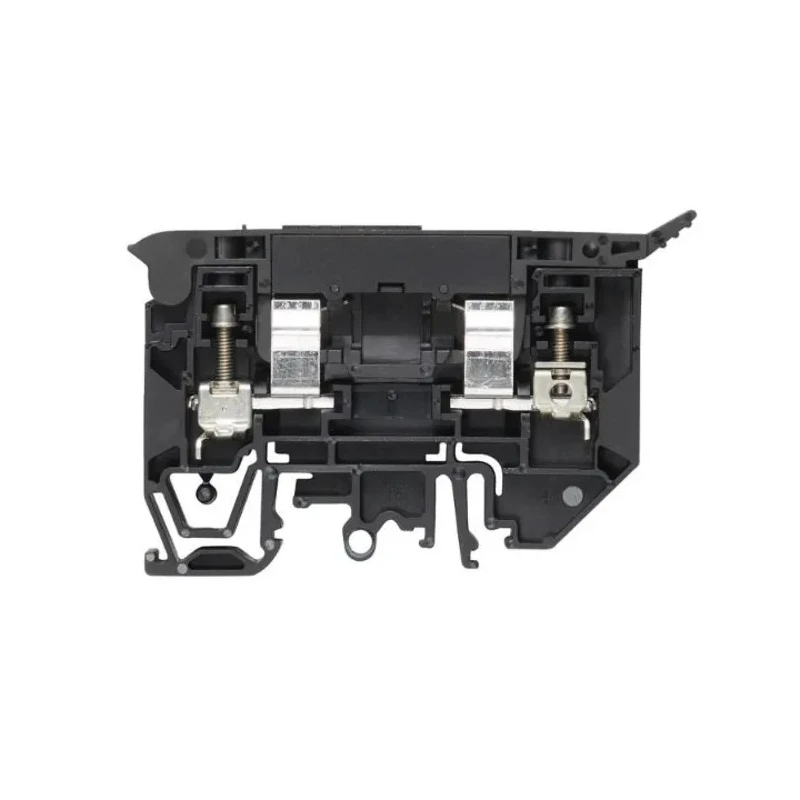

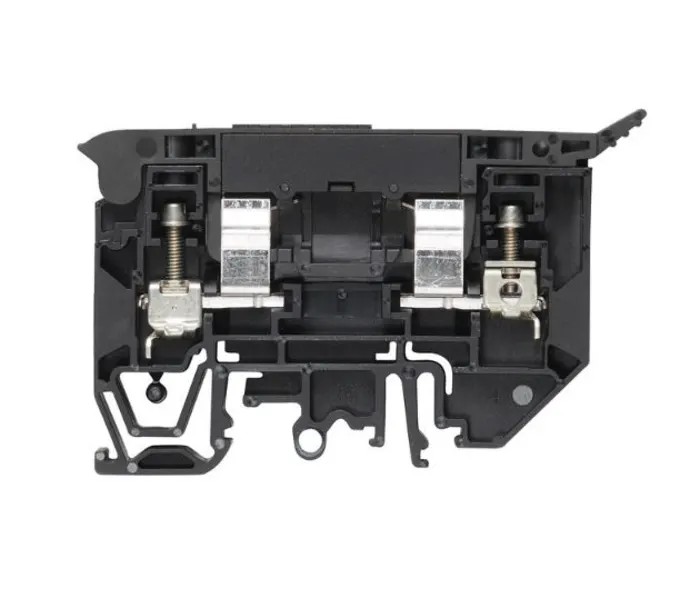

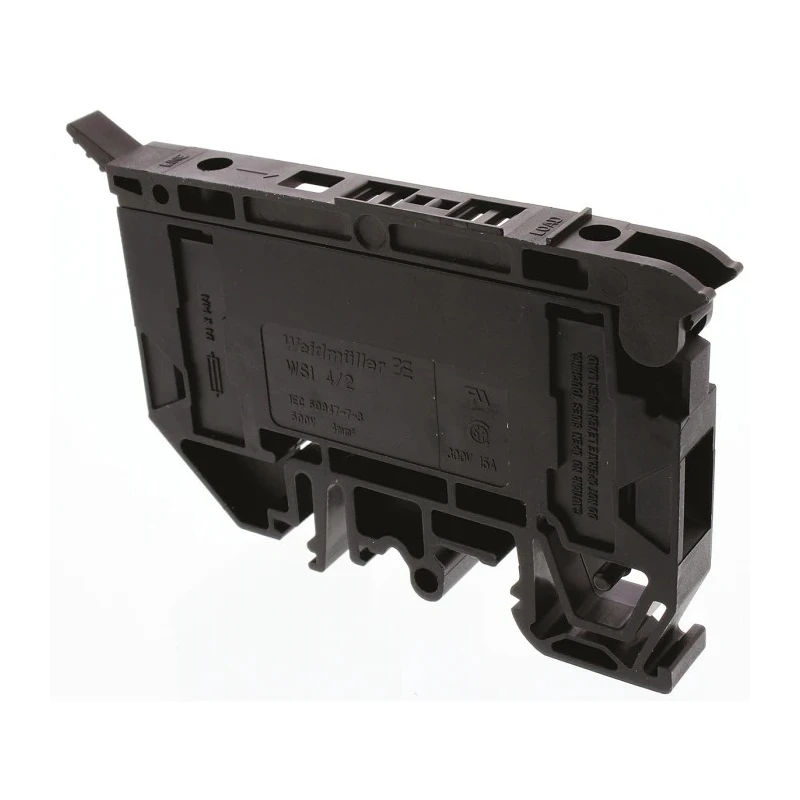

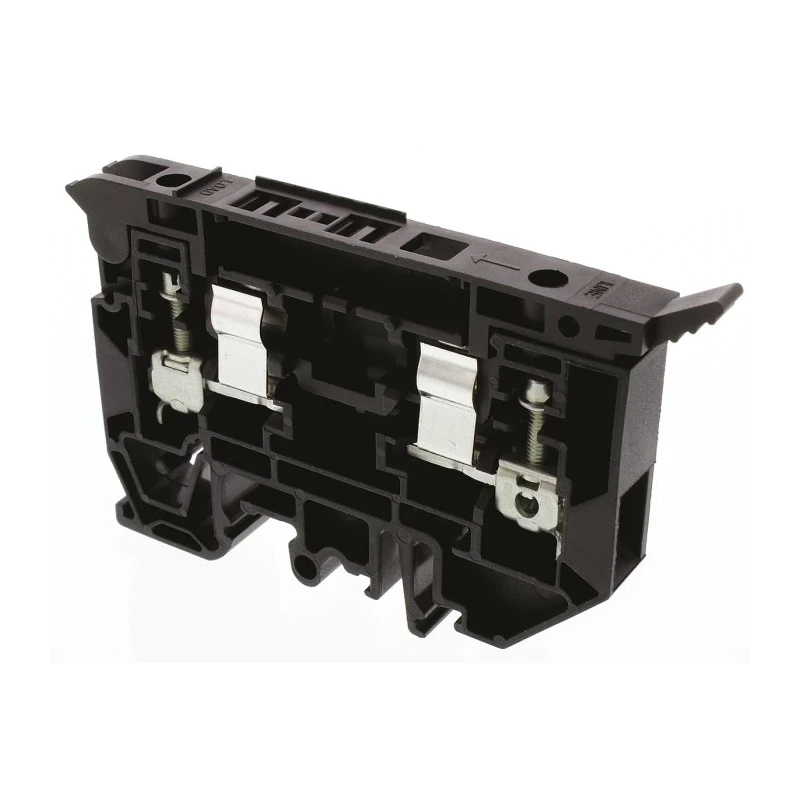

Weidmüller W Series Fused DIN Rail Terminal Black 4mm² 1-Level Fused Screw 1880430000

Weidmüller 1880430000 W Series fused DIN rail terminal features advanced protection and connectivity for industrial electrical systems. The black thermoplastic Wemid housing is flame-retardant and built to withstand high operating temperatures up to 120°C. This terminal block supports a nominal voltage rating of 300V and terminal block current rated at 15A with reliable screw clamp termination for secure wiring.

The product accepts cable cross-sectional areas of 4mm², corresponding to wire sizes between 30AWG and 10AWG, accommodating a wide range of wiring requirements. Its pitch of 9.1mm and compact dimensions (81.6 mm height × 9.1 mm width × 53.5 mm depth) provide an efficient space-saving design on standard TS35 or deep top hat-compatible DIN rails.

This single-level fused DIN rail terminal incorporates short circuit and overload protection mechanisms to prevent damage from sudden electrical surges. The impulse withstand voltage rating of 6kV ensures reliable protection from transients in demanding industrial environments, such as telecommunications, energy management, and manufacturing.

Constructed from nylon 6.6 material, it has a continuous temperature rating of 120°C and is self-extinguishing to UL94V-0 standards. The current bars are made from high-quality 10 mm electrolytic copper, delivering a current load exceeding its nominal rating for enhanced safety and performance.

Certified to RoHS, EAC, CSA, and CE standards, the terminal block meets worldwide compliance criteria. It is designed for easy snap-on mounting and connects firmly with screw terminations for robust system integrity. The lightweight design (21.76 grams) minimizes strain on DIN rail assemblies.

Black flame-retardant Wemid thermoplastic housing. Accepts 30AWG to 10AWG wire sizes with 4mm² cable cross-section. 15A terminal current rating with screw clamp termination. Operates at 300V with impulse withstand voltage of 6kV.

Compact size with 9.1 mm pitch suitable for TS35 DIN rails. Wide operating temperature range from -50°C to 120°C. Short circuit and overload protection with single-level fuse. Constructed with UL94V-0 nylon 6.6 and electrolytic copper current bars.

Compliant with RoHS, EAC, CSA, and CE certifications. Ideal for telecommunications, energy management, and manufacturing applications. Explore more Weidmüller DIN Rail Terminal Blocks and related electrical components at EnvMart for reliable industrial automation and control solutions.
