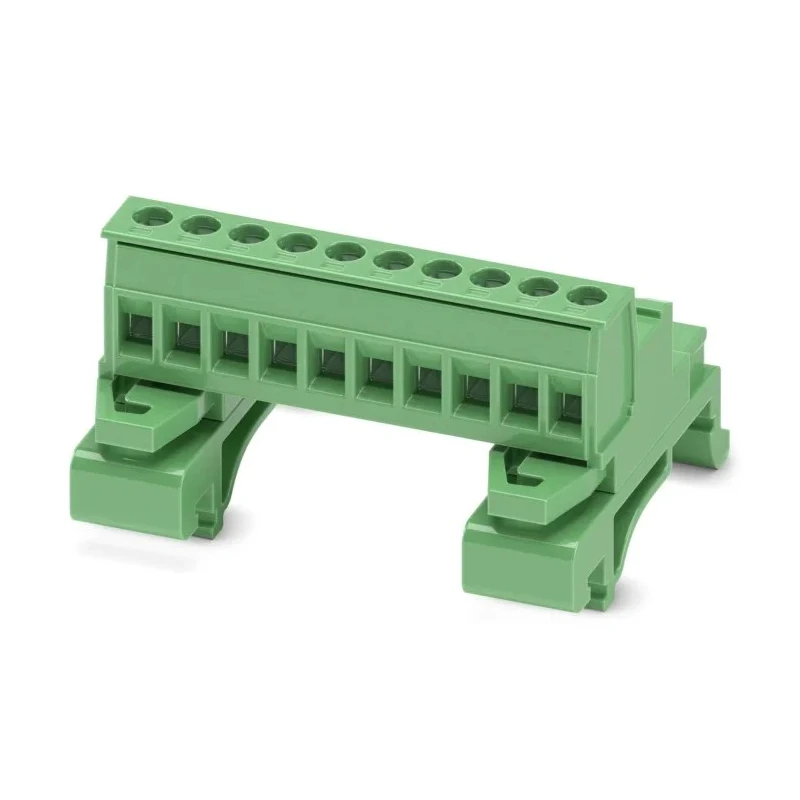

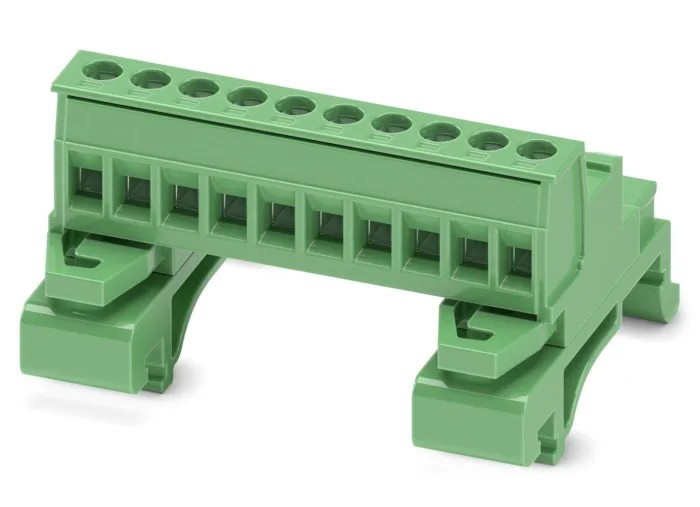

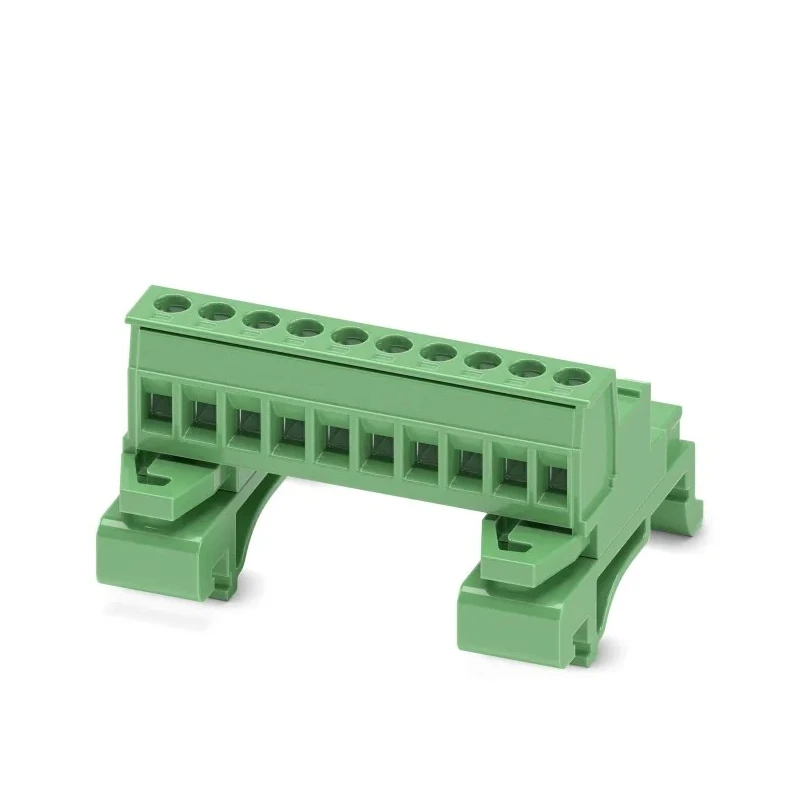

Phoenix Contact UMSTBHK 2.5/10-G Series 1-Level 10-Position Green DIN Rail Connector, 320V, 12A, Screw Termination 1765768
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Colour | Green |
| Model | 1765768 |
| Series | UMSTBHK 2.5/10-G |
| Termination Type | Screw |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 1 |
| Number of Positions | 10 |
| Sub Type | Modular |
| Minimum Operating Temperature | -40°C |
| Pitch | 5mm |
| Standards/Approvals | EAC |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 0.2, 2.5mm² |
| Terminal Block Current | 12A |
Key Features
- The connector supports wire sizes ranging from 0.2 mm² to 2.5 mm² (24 to 12 AWG).
- It features a durable polyamide body with a green color for easy identification.
- The screw termination with a tension sleeve ensures tight and secure conductor connections.
- Rated for 320 volts and 12 amperes with a 5 mm pitch, suitable for various control panel installations.
- Operates effectively in temperatures ranging from -40°C to 105°C, ensuring performance under harsh conditions.
- Constructed with corrosion-resistant tin-plated copper alloy contacts for enhanced conductivity and durability.
- Designed for easy snapping onto DIN rails and modular expansion in electronic assemblies.
- UL 94-V0 flammability rating provides high safety by stopping burning within 10 seconds.
Product Description
Phoenix Contact 1765768 UMSTBHK 2.5/10-G Series DIN Rail Connector features a 1-level, 10-position modular design with a green polyamide body and screw termination for secure electrical connections. Rated for 320V and 12A, this connector supports wire sizes from 0.2 mm² to 2.5 mm², ideal for a wide range of industrial and automation applications.
The compact 5mm pitch design allows easy integration into control panels and electrical enclosures. Tin-plated copper alloy contacts provide excellent corrosion resistance and reliable current conduction, while the screw connection with tension sleeve ensures safe conductor grip even under vibration or mechanical stress.
It operates safely within a temperature range of -40°C to 105°C, making it suited for demanding environments such as manufacturing plants, HVAC systems, and industrial automation setups. The connector can be quickly mounted onto DIN rails, facilitating fast installation and maintenance.
Safety is enhanced by the UL 94-V0 flammability rating, which restricts fire spread, and compliance with EAC standards assures regulatory approval. The terminal block also withstands surge voltages up to 4 kV, protecting connected equipment.
Extensively tested for insertion and withdrawal forces with up to 25 cycles, this connector promises durable performance in daily operations. Its modular nature allows easy scalability in complex wiring projects.
The connector supports wire sizes ranging from 0.2 mm² to 2.5 mm² (24 to 12 AWG). Durable polyamide construction with green color coding. Screw termination with tension sleeve for secure connections. Rated operating voltage of 320V and current of 12A.
5 mm pitch standard for DIN Rail Terminal Blocks. Operating temperature from -40°C to 105°C. Corrosion-resistant tin-plated copper contacts. UL 94-V0 flammability rating for safety. Tested for 25 insertion and withdrawal cycles for longevity.
This Phoenix Contact DIN Rail Terminal Block is well-suited for industrial, manufacturing, automation, HVAC, and control panel wiring applications. Its robust design and reliable electrical characteristics ensure long-term service and operator safety. Explore a broad range of Phoenix Contact connectors and related products available on EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this connector is 320V.
This model has a current capacity of 12A.
It supports wire sizes ranging from 0.2 mm² to 2.5 mm², equivalent to 24 to 12 AWG.
The operating temperature range is from -40°C to 105°C.
Connections are made using screw termination with a tension sleeve for secure grip.
The pitch size for this connector is 5mm.
The contacts are made from corrosion-resistant tin-plated copper alloy.
It complies with EAC standards and has a UL 94-V0 flammability rating.
This terminal block has 10 positions.
The country of origin for this product is India.
It has been tested for up to 25 insertion and withdrawal cycles.
It is suitable for various industrial and automation applications, including control panel wiring.
