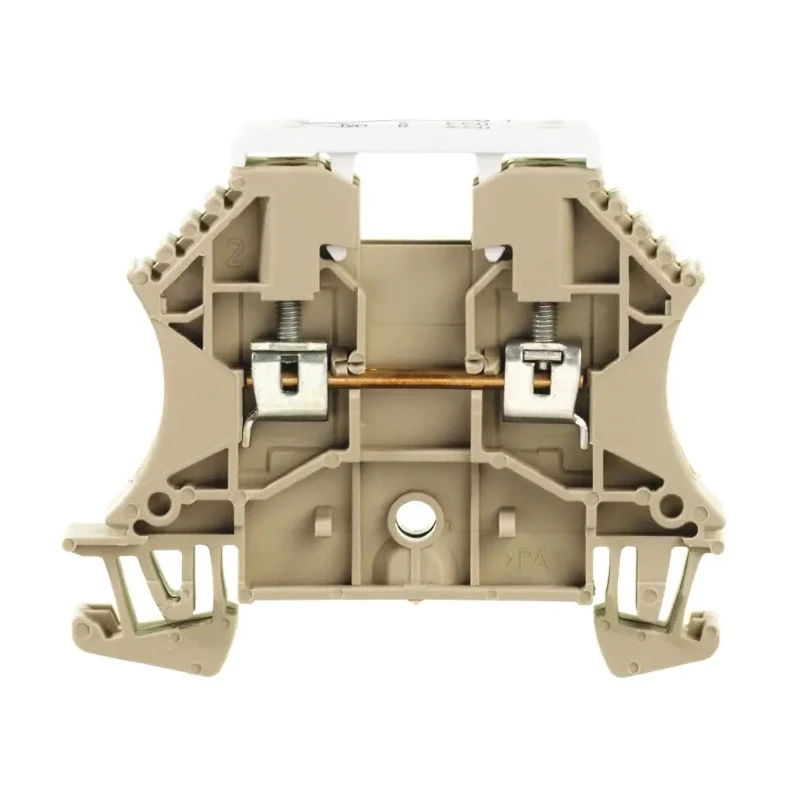

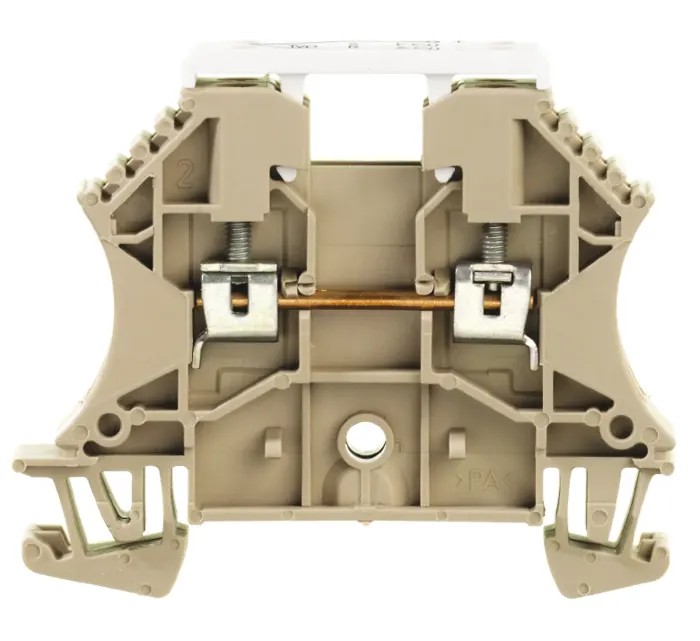

Weidmüller W Series Thermoelectric Voltage Terminal Block 2.5mm², 1-Level, Screw Termination 55V 1A 1024400000

Name: Weidmüller W Series Thermoelectric Voltage Terminal Block 2.5mm², 1-Level, Screw Termination 55V 1A 1024400000
Brand: Weidmuller
SKU: 250494
Price: 20.22 USD
Availability: InStock



Category DIN Rail Terminal Blocks Brand Weidmuller Condition New

Specifications

Country of Origin	India
Voltage	55V
Brand	Weidmüller
Colour	Dark Beige
Series	W
Termination Type	Screw
Maximum Operating Temperature	120°C
Number of Levels	1
Minimum Operating Temperature	-50°C
Pitch	10.2mm
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	12AWG
Cable CSA	2.5mm²
Terminal Block Current	1A

Key Features

Feature a dark beige nylon 6.6 housing with a continuous temperature rating of 120°C.
Supports a voltage of 55V and current rating of 1A suitable for thermocouple connections.
Compatible with several thermocouple types including K, T, J, SR, B, E, and NH.
Equipped with spring and screw connection technology and snap-on mounting for Top Hat DIN Rail standards.
Constructed with hardened steel and high-quality tinned copper contacts for reliable conductivity.
Termination type is screw, accommodating wire sizes from 26 AWG to 12 AWG.
Pitch between terminals is 10.2mm providing standard spacing for wiring.
Operational temperature range from -50°C minimum to 120°C maximum.

Product Description

Weidmüller 1024400000 W Series thermoelectric voltage terminal block offers a robust and efficient solution for secure electrical connections in industrial and instrumentation applications. Designed with a dark beige nylon 6.6 body, the terminal block withstands continuous operation temperatures up to 120°C and short-term exposure up to 180°C. This product facilitates reliable thermocouple connections across various types such as K, T, J, SR, B, E, and NH.

It features screw termination technology combined with spring and snap-on mounting designed for symmetric 'Top Hat' DIN Rail mounts conforming to BS5584:1978 and EN 50022 standards. The 10.2mm pitch ensures standard spacing for wiring, supporting wire sizes ranging between 26 AWG and 12 AWG with a cable cross-sectional area of 2.5mm².

The terminal block delivers a current rating of 1A and voltage rating of 55V, making it suitable for low-voltage signal distribution in control and measuring instruments. Hardened steel construction provides mechanical strength while the high-quality tinned copper contacts guarantee optimum conductivity and corrosion resistance. The design complies with RoHS regulations, is free of halogens and cadmium, and is self-extinguishing to UL94V-0 standards ensuring enhanced electrical safety.

This terminal block is ideal for use in industrial automation, instrumentation, laboratory, HVAC controls, and manufacturing environments requiring reliable thermoelectric voltage connections. The product does not carry hazardous area certification but adheres to stringent quality and environmental standards.

Dark beige nylon 6.6 housing rated for continuous 120°C operation. Screw and spring connection technology with snap-on mounting for DIN Rail. Compatible with multiple thermocouple types including K, T, J, SR, B, E, NH. Rated for 55V voltage and 1A current, suitable for instrumentation applications.

Wire size support from 26 AWG to 12 AWG with cable CSA 2.5mm². Pitch of 10.2mm between terminals to standard specifications. Hardened steel body with tinned copper contacts for durability and conductivity. RoHS compliant and free from halogens and cadmium.

Self-extinguishing to UL94V-0 enhancing fire safety. Suitable for industrial, laboratory, HVAC, and manufacturing uses. Discover a wide range of DIN Rail Terminal Blocks and connectors at EnvMart to complete your electrical and instrumentation projects with trusted quality and performance.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating temperature for this terminal block is 120°C, with short-term exposure capable of withstanding up to 180°C.

This terminal block has a current rating of 1A and a voltage rating of 55V, making it suitable for low-voltage applications.

It is compatible with several thermocouple types including K, T, J, SR, B, E, and NH.

This model accommodates wire sizes ranging from 26 AWG to 12 AWG, with a cable cross-sectional area of 2.5mm².

The pitch between terminals is 10.2mm, providing standard spacing for wiring.

It features screw termination technology, ensuring secure connections for the wires.

The terminal block is constructed with a dark beige nylon 6.6 housing, hardened steel body, and high-quality tinned copper contacts for reliable conductivity.

The operational temperature range for this terminal block is from -50°C to 120°C.

It is designed for snap-on mounting to Top Hat DIN Rail standards, ensuring easy installation.

This terminal block is suitable for use in industrial automation, instrumentation, laboratory, HVAC controls, and manufacturing environments requiring reliable thermoelectric voltage connections.

The country of origin for this terminal block is India.
