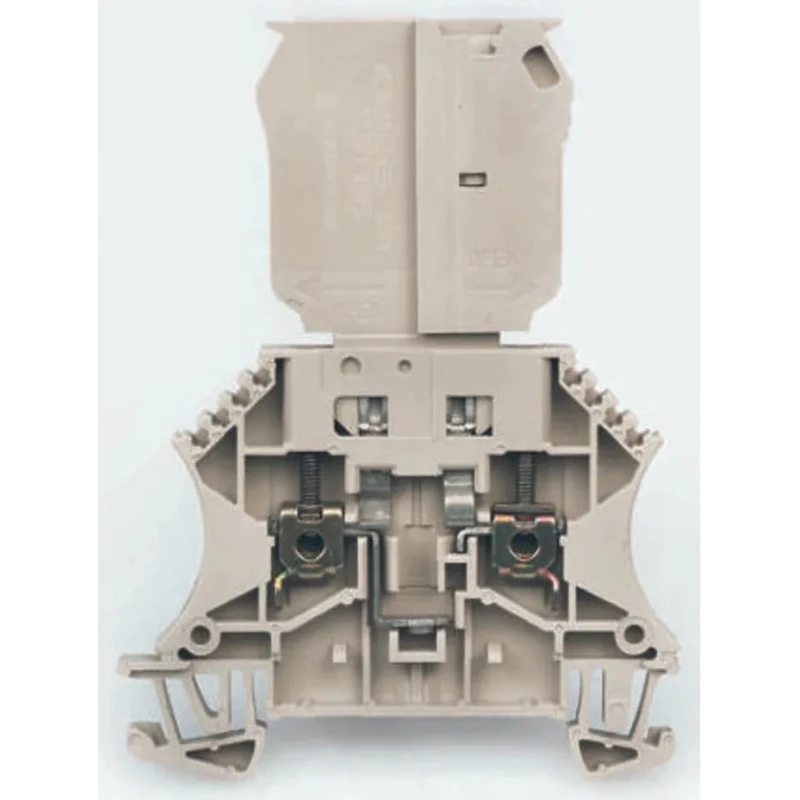

Weidmüller WTR Series Fused DIN Rail Terminal Block Beige, 2.5mm² Cable CSA, 1-Level Fused, Screw Termination 1763940000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | Weidmüller |
| Colour | Beige |
| Series | WTR |
| Termination Type | Screw |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 1 |
| Sub Type | Fuse Isolator |
| Minimum Operating Temperature | 50°C |
| Pitch | 5mm |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 2.5mm² |
| Terminal Block Current | 6.3A |
Key Features
- Constructed with nylon 6.6 for high temperature resistance up to 120°C.
- Compatible with 5x20mm fuses ensuring effective fuse isolation.
- Supports wire sizes from AWG 26 to AWG 12 with 2.5mm² cable cross-sectional area.
- Rated for 400V voltage and 6.3A terminal block current.
- Features a 5mm pitch and incorporates copper alloy rising cage screw clamp technology.
- Vertical mount design suitable for standard Top Hat DIN rails.
- Self-extinguishing to UL94V-0 standard and free from cadmium and halogen materials.
- Operates reliably in temperatures ranging from 50°C to 120°C.
Product Description
Weidmüller 1763940000 WTR Series fused DIN Rail terminal block is a high-quality electrical component designed for industrial and commercial electrical installations. Featuring a beige nylon 6.6 housing, it is built to withstand continuous operating temperatures up to 120°C, with short-term tolerance of 180°C. This products' construction ensures reliable mechanical and electrical connections through advanced copper alloy rising cage screw clamp technology.
This terminal block is equipped with a screw termination type, compatible with wire sizes from AWG 26 (minimum) to AWG 12 (maximum), supporting a cable cross-sectional area of 2.5mm². It is rated for a maximum operating voltage of 400V and a terminal block current of 6.3A, with a standard pitch of 5mm between connection points. The design supports vertical mounting on standard 'Top Hat' DIN rails, making it suitable for a wide range of electrical control and distribution systems.
The WTR series terminal block integrates fuse isolation functionality, compatible with 5x20mm fuses to offer additional circuit protection. The housing is self-extinguishing to UL94V-0 standards and free from hazardous substances such as cadmium and halogen. This product is ideal for use in industrial automation, manufacturing electrical panels, and various electrical power distribution applications where compact, safe, and reliable connections are required.
Constructed from nylon 6.6 for durability and high temperature resistance. Incorporates copper alloy rising cage screw clamp for reliable electrical contact. Compatible with 5x20mm fuse elements for fuse isolation. Supports voltage up to 400V and current rating of 6.3A.
Suitable for wire sizes ranging from AWG 26 to AWG 12. Designed for vertical mounting on Top Hat DIN rail systems. Meets UL94V-0 self-extinguishing standards and is free from cadmium and halogen. Operates within temperature range of 50°C to 120°C.
This Weidmüller DIN Rail terminal block, model 1763940000, originating from Germany, provides robust electrical connection solutions ideal for electronic components, power systems, and industrial automation setups. Explore more in the Electronics & Electricals, and Connectors categories on EnvMart for compatible components and accessories.
Explore more products in our DIN Rail Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum operating voltage of 400V.
The terminal block has a current rating of 6.3A.
This terminal block supports wire sizes from AWG 26 to AWG 12, with a cable cross-sectional area of 2.5mm².
It features a screw termination type for secure connections.
The pitch between connection points is 5mm.
It operates reliably within a temperature range of 50°C to 120°C.
It is compatible with 5x20mm fuses for effective fuse isolation.
Yes, it is designed for vertical mounting on standard Top Hat DIN rails.
The housing is constructed from nylon 6.6, which provides high temperature resistance.
This product originates from Germany.
It features a single level design.
