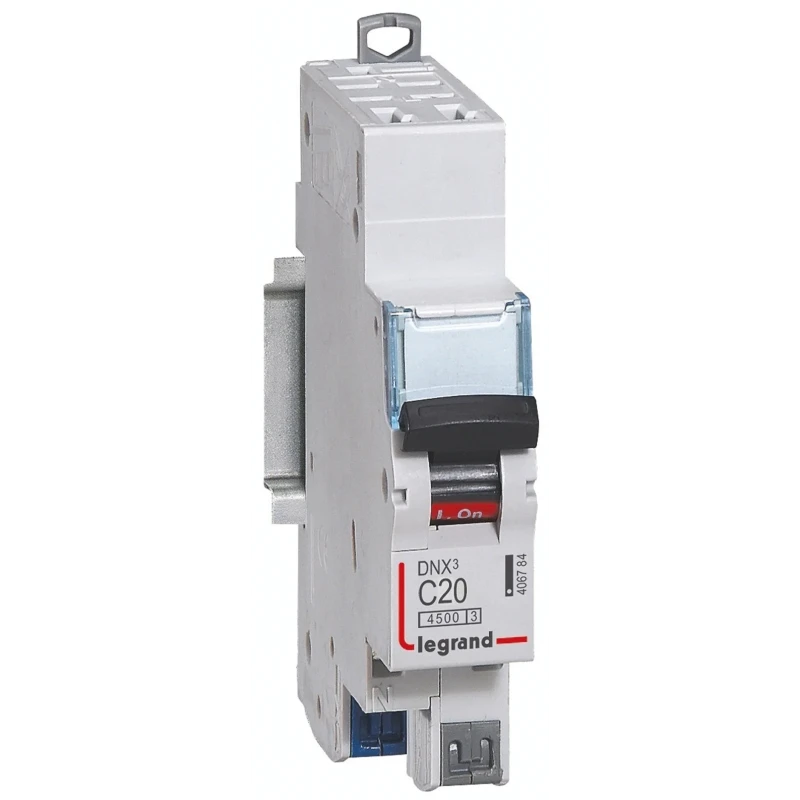

Legrand DX DNX3 Miniature Circuit Breaker, 1-Pole, 20A, Type C, 250V AC, 12V DC, 4.5 kA Breaking Capacity
Specifications
| Country of Origin | France |
|---|---|
| Range | DX |
| Brand | Legrand |
| Height | 77.7mm |
| Model | DNX3 |
| Depth | 95mm |
| IP Rating | IP20, IP40 |
| Width | 17.8mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | DNX3 |
| Terminal type | Cage Type |
| Breaking Capacity | 4.5kA |
| Number of Poles | 1 |
| Standards/Approvals | EN 60947-2, NF EN 60891-1 |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 12V dc |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Magnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Rated current of 20A with type C tripping characteristics for fast response.
- Supports 250V AC and 12V DC voltage ratings for versatile applications.
- Mounts easily on DIN rail for convenient installation.
- Breaking capacity of 4.5 kA limits short circuit power to protect cables.
- Equipped with a toggle switch reset actuator for simple operation.
- Suitable for residential, commercial, and industrial settings requiring high performance and safety.
- Complies with IEC/EN 60898 and IEC/EN 60947-2 standards for circuit breakers.
- IP20 and IP40 IP ratings provide adequate protection against ingress.
Product Description
Legrand DNX3 Miniature Circuit Breaker, model 4 067 84, is a high-performance 1-pole circuit breaker rated for 20A current with type C tripping characteristics. It supports 250V AC and 12V DC voltages, providing reliable overcurrent protection for a broad range of electrical installations.
This miniature circuit breaker mounts easily on DIN rails, making system integration straightforward. Its breaking capacity of 4.5 kA limits short circuit power, thereby protecting electrical cables and infrastructure from damage due to faults.
The device features a toggle switch actuator allowing quick manual reset after tripping. Compact physical dimensions (17.8mm width, 77.7mm height, and 95mm depth) make it suitable for dense electrical panels.
Complying with internationally recognized standards IEC/EN 60898 and IEC/EN 60947-2, the Legrand DNX3 circuit breaker is designed for residential, commercial, and industrial applications requiring selectivity and high electrical safety.
Additional IP20 and IP40 ratings ensure ingress protection, enhancing durability in various environments. Manufactured in France, it guarantees premium quality and durability. Rated current of 20A with type C tripping characteristics for fast response.
Supports 250V AC and 12V DC voltage ratings for versatile applications. Mounts easily on DIN rail for convenient installation. Breaking capacity of 4.5 kA limits short circuit power to protect cables. Equipped with a toggle switch reset actuator for simple operation.
Compact dimensions: 17.8mm width, 77.7mm height, and 95mm depth. Suitable for residential, commercial, and industrial settings requiring high performance and safety. Complies with IEC/EN 60898 and IEC/EN 60947-2 standards for circuit breakers.
IP20 and IP40 IP ratings provide adequate protection against ingress. Manufactured in France ensuring quality standards.
This Legrand DNX3 Miniature Circuit Breaker is a reliable and durable choice for electrical power distribution and protection solutions. Browse more Miniature Circuit Breakers by Legrand on EnvMart for comprehensive electrical safety options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a rated current of 20A.
It supports voltage ratings of 250V AC and 12V DC.
The breaking capacity of this unit is 4.5 kA.
It mounts easily on DIN rails for convenient installation.
The dimensions are 17.8mm in width, 77.7mm in height, and 95mm in depth.
It features Type C tripping characteristics for fast response.
It complies with IEC/EN 60898 and IEC/EN 60947-2 standards for circuit breakers.
It is equipped with a toggle switch reset actuator for simple operation.
This model has IP20 and IP40 ratings for ingress protection.
It is suitable for residential, commercial, and industrial settings requiring high performance and safety.
It features cage type terminals.
It is manufactured in France.
