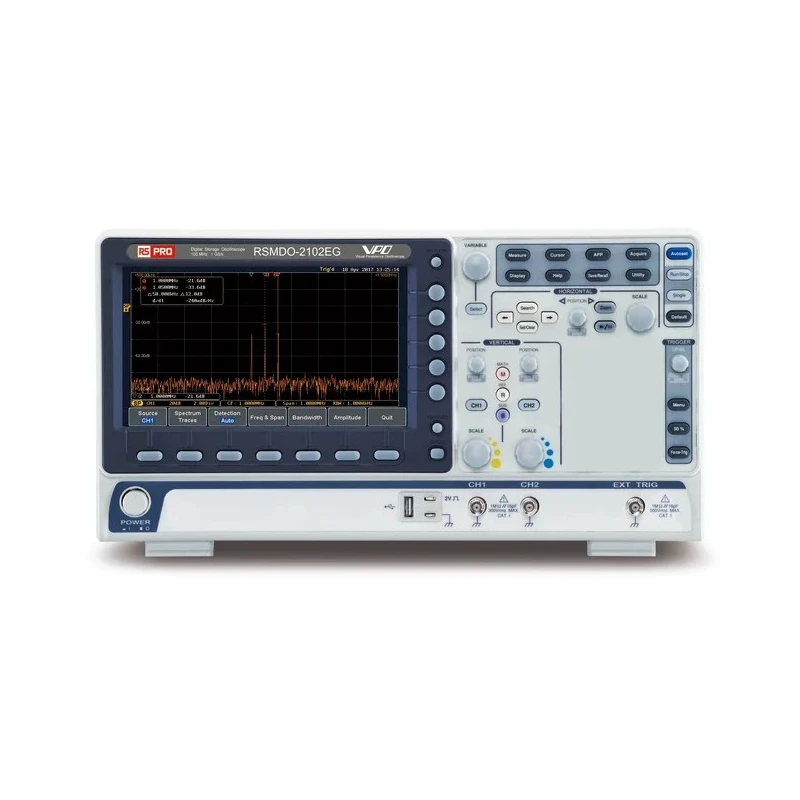

RS PRO 100 MHz Bench Mixed Domain Digital Storage Oscilloscope 2 Channels 8 in TFT LCD RSDM-2000EG 180-4797

RS PRO 180-4797 is a 100 MHz bench mixed domain digital storage oscilloscope designed for precision electronic signal testing in industrial, laboratory, and educational settings. It features two analog channels with an 8 inch WVGA TFT LCD screen that provides clear and detailed real-time waveform display.

This oscilloscope is equipped with advanced technology such as a built-in spectrum analyzer and a dual channel 25 MHz arbitrary waveform generator, enabling comprehensive frequency domain and waveform analysis. It offers 10 million points of memory depth for capturing complex signals and supports a high waveform refresh rate of 120,000 per second to accurately monitor fast and dynamic signals.

The device supports multiple interface types including CAN, IIC, LIN, RJ45, SPI, UART, and USB ports, offering extensive connectivity options for diverse test environments. With an 8 bit vertical resolution and minimum time base of 1 ns/div, it delivers precise signal capture and measurement capabilities essential for electrical engineering, manufacturing, and research applications.

Its compact footprint with dimensions measuring 384mm width, 208mm height, and 127.3mm depth makes it suitable for benchtop use in workshops and laboratories. The oscilloscope is powered by mains electricity and built to meet rigorous quality standards with its country of origin being Taiwan, Province Of China.

Bandwidth of 100 MHz supports wide electronic signal testing. Dual channel 25 MHz arbitrary waveform generator included. Real-time sample rate per channel is 1 GSa/s. Waveform refresh rate of 120,000 per second enables efficient analysis.

Supports multiple standard serial interfaces including CAN, IIC, SPI, UART, and USB. High vertical resolution of 8 bit for detailed waveform accuracy. Compact and ergonomic benchtop form factor with precise dimensions. Manufactured in Taiwan, Province Of China, ensuring robust build quality.

This Oscilloscope is an essential instrument for professionals in electrical engineering, testing laboratories, manufacturing environments, and educational institutions. It delivers reliable and precise electronic signal measurement and analysis for troubleshooting, design validation, and signal characterization tasks.
