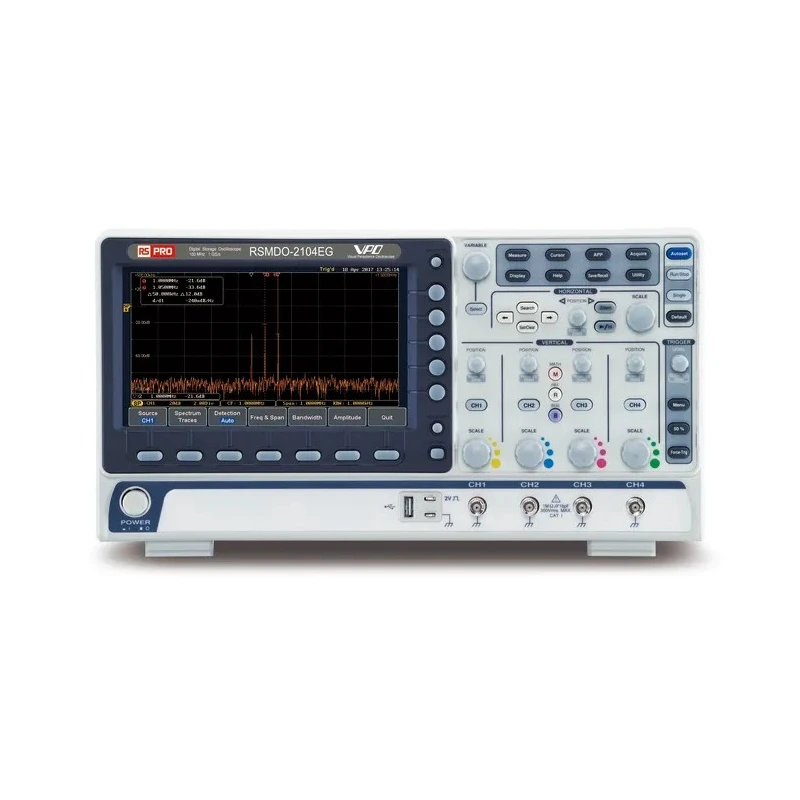

RS PRO 100 MHz Bench Mixed Domain Oscilloscope 4 Channels, 8 Inch TFT LCD, 1GSa/s Sampling Rate 180-4798

RS PRO 180-4798 is a 100 MHz bench mixed domain oscilloscope designed for precise measurement and analysis of electronic signals across industrial, laboratory, and educational settings. Featuring four input channels and an 8 inch TFT LCD, this oscilloscope delivers clear, detailed real-time waveform visualization and advanced data capture capabilities.

The device integrates a built-in spectrum analyzer and a dual channel 25 MHz arbitrary waveform generator (AWG), enabling comprehensive frequency domain and waveform generation functions. With a real-time sampling rate of 1GSa/s for 4 channels and a high waveform refresh rate of up to 120,000 waveforms per second, it supports rapid and accurate signal analysis.

This mixed domain oscilloscope supports multiple serial bus protocols including CAN, IIC, LIN, RJ45, SPI, UART, and USB interfaces, facilitating flexible connectivity and protocol decoding. Its large memory depth of 10 million points (10Mpts) allows extensive data logging and detailed waveform review.

Additional features include high pass, low pass, and band pass filters to support complex signal analysis needs. The device also provides a mask test function and network storage, making it suitable for industrial quality control and continuous monitoring applications.

Compact bench dimensions (384 mm width x 208 mm height x 127.3 mm depth) make installation straightforward in diverse work environments. The oscilloscope is powered by mains supply and is manufactured in Taiwan, Province Of China, ensuring adherence to manufacturing quality standards.

Ideal applications include electrical engineering testing, maintenance diagnostics, industrial manufacturing quality assurance, telecommunications, and education laboratories. 8 inch TFT LCD display offers clear waveform visualization in real-time.

Supports mixed domain operation with built-in spectrum analyzer and dual channel 25 MHz arbitrary waveform generator. Sampling rate up to 1GSa/s for accurate signal capture. Advanced waveform refresh rate of up to 120,000 waveforms per second enhances measurement speed.

Multiple interface types including CAN, IIC, LIN, RJ45, SPI, UART, and USB for diverse connectivity. High memory depth of 10Mpts for detailed waveform storage and analysis. Offers comprehensive serial bus trigger and decoding for I2C, SPI, UART, CAN, and LIN protocols.

Features mask test function and network storage capabilities for industrial monitoring. Compact dimensions with 384mm width, 208mm height, and 127.3mm depth for bench use. Country of origin Taiwan, Province Of China ensuring quality manufacturing standards.
