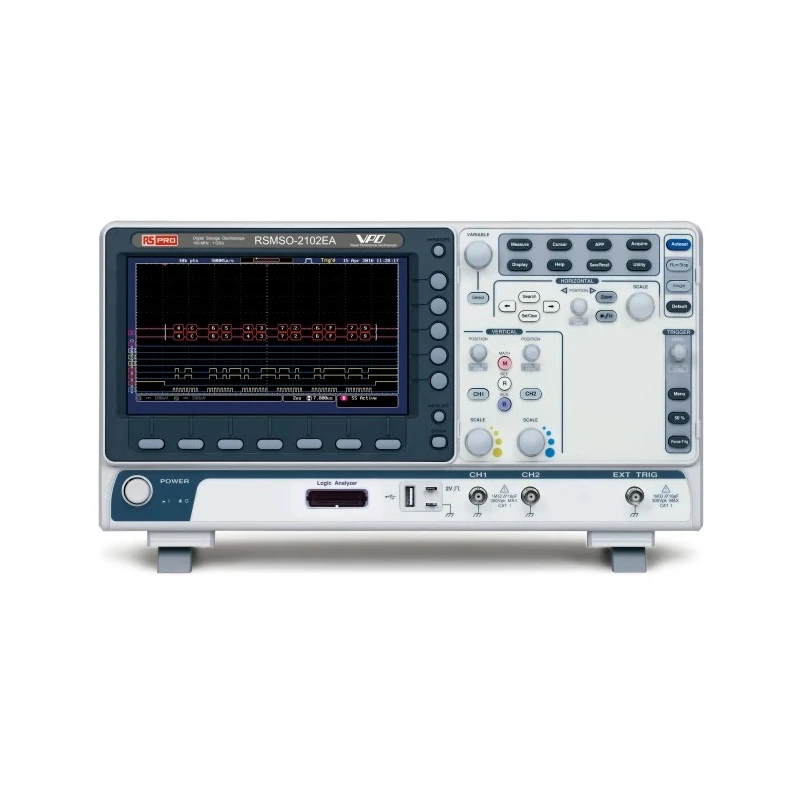

RS PRO 100 MHz Mixed Signal Bench Oscilloscope 16 Channels 8 in WVGA TFT Screen RSMSO-180-4790

RS PRO 180-4790 is a high-performance 100 MHz mixed signal bench oscilloscope featuring 16 digital channels and an 8 inch WVGA TFT LCD color screen, ideal for precise waveform analysis and diagnostics.

This oscilloscope integrates dual analogue inputs plus 16 digital channels, enabling comprehensive measurement of complex signals. It offers a real-time sampling rate up to 1 GSa/s per channel and a deep selectable memory depth up to 10 million points, allowing capture of fast dynamic waveforms as well as long duration signals.

The built-in arbitrary waveform generator enhances testing capabilities by producing custom signals for simulation and validation. Its advanced segmented memory with 29,000 sections and waveform search function streamlines data retrieval, saving time by locating relevant waveform data efficiently.

Connectivity supports numerous serial bus protocols including CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB, providing versatile integration into varied test environments.

Designed with clarity in mind, the 8 inch color display presents crisp measurement results and features an intuitive user interface suited for industrial, laboratory, educational, and research applications.

Compact and robust, the Oscilloscope’s dimensions (height 208 mm, width and depth 127.3 mm) fit comfortably on workbenches without occupying excessive space. Its 8-bit vertical resolution and sensitivity ranging from 1 mV/div to 10 V/div enables detailed signal analysis with rise time of 3.5 ns and waveform update rates of up to 120,000 per second.

This RS PRO model originates from Taiwan and provides dependable performance with mains power operation, suitable for electronics diagnostics, circuit simulation, and educational test laboratories.

Includes features to decode serial buses such as I2C, SPI, UART, CAN, and LIN for detailed protocol analysis. Supports high pass, low pass, and band pass filters enhancing measurement accuracy by reducing noise. Offers FFT analysis with resolution up to 1 million points for frequency domain insights.

Built to serve demanding industrial and laboratory environments requiring precision and reliability. Explore more measurement and testing instruments in the EnvMart catalog for comprehensive test solutions.
