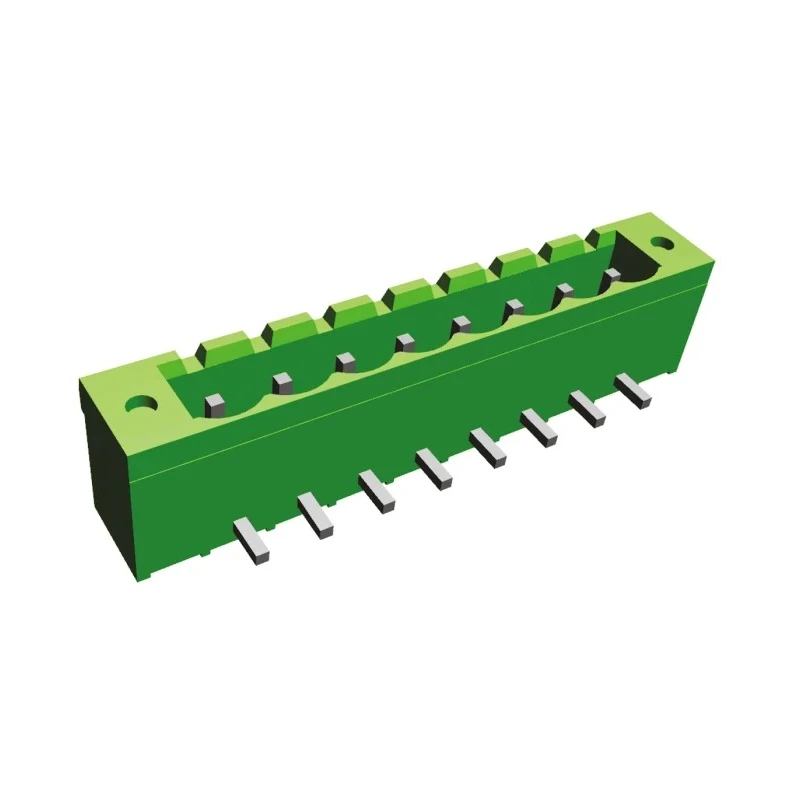

TE Connectivity Buchanan Series Pluggable Terminal Block 8-Contact 5.08 mm Pitch 1 Row 15A 300V ac 796866-8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Straight |
| Current | 15A |
| Model | 796866-8 |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Number of Contacts | 8 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
| Wire Connection Method | Solder |
Key Features
- Current rating up to 15 amperes for robust performance.
- Supports wire sizes ranging from 0.05 mm² to 3 mm², equivalent to 12 AWG to 30 AWG.
- Constructed with durable polyamide housing in a green color for identification.
- Designed with a female connector gender and straight orientation.
- Wire connection method uses soldering ensuring secure attachment.
- Buchanan series ensures compatibility with related system components.
- Compact footprint suited for PCB mounting applications.
Product Description
TE Connectivity 796866-8 Buchanan Series Pluggable Terminal Block is engineered for efficient and secure PCB connections. This 8-contact terminal block with a 5.08 mm pitch and one-row design is tailored for industrial and electronic components requiring reliable electrical junctions.
The terminal block supports a current rating of 15 A and accommodates a wide range of wire sizes from 0.05 mm² to 3 mm² (12 AWG to 30 AWG), making it versatile for different wiring standards. Its green polyamide housing offers excellent mechanical strength and chemical resistance.
The connection method is solder-based, providing stable and durable electrical contacts. The block features a female connector gender and straight orientation to suit standard PCB layouts and connector configurations.
Rated at 300 V AC, this Pluggable Terminal Block is ideal for various industrial, manufacturing, and electronic use cases including power connectors, PCB assemblies, and automation systems. As part of the Buchanan series by TE Connectivity, it assures high quality and compatibility in demanding environments.
Applications include industrial machinery, electronic device manufacturing, control panel assemblies, and power distribution modules requiring compact and dependable terminal solutions.
Current rating up to 15 amperes for robust performance. Supports wire sizes ranging from 0.05 mm² to 3 mm², equivalent to 12 AWG to 30 AWG. Constructed with durable polyamide housing in a green color for identification. Designed with a female connector gender and straight orientation.
Wire connection method uses soldering ensuring secure attachment. Voltage rating of 300 volts AC suitable for various industrial and electronic applications. Buchanan series ensures compatibility with related system components.
Compact footprint suited for PCB mounting applications. Explore more high-quality terminal blocks and connectors from TE Connectivity on EnvMart, your trusted industrial components partner.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this terminal block is up to 15 amperes, providing robust performance for various applications.
It supports wire sizes ranging from 0.05 mm² to 3 mm², which is equivalent to 12 AWG to 30 AWG.
The voltage rating of this terminal block is 300 volts AC, suitable for various industrial and electronic applications.
The pitch of this terminal block is 5.08 mm, designed for efficient PCB connections.
The housing is constructed from durable polyamide, which offers excellent mechanical strength and chemical resistance.
This model features a straight orientation, which is compatible with standard PCB layouts.
This terminal block has 8 contacts, allowing for multiple connections in a compact design.
The wire connection method for this terminal block uses soldering, ensuring a secure attachment.
The terminal block is manufactured in India.
It is suitable for applications such as industrial machinery, electronic device manufacturing, and control panel assemblies.
The connector gender of this terminal block is female, designed for compatibility with related system components.
Yes, this terminal block is part of the Buchanan series by TE Connectivity, ensuring compatibility with related components.
