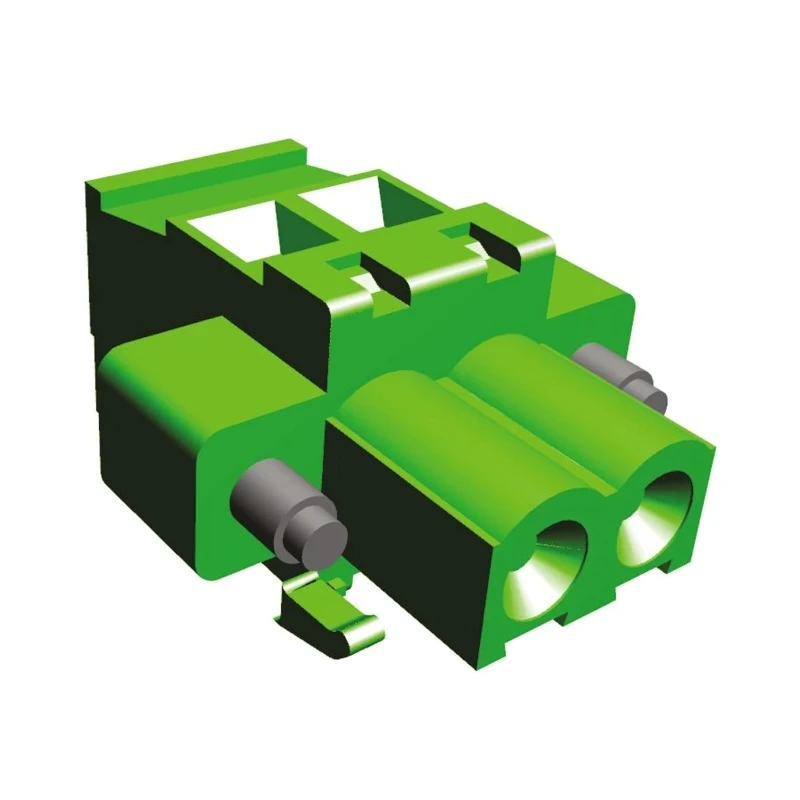

TE Connectivity Buchanan Series Pluggable Terminal Block, 2-Contact, 5.08 mm Pitch, 1 Row, 15A, 300V AC, Polyamide 796861-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Straight |
| Current | 15A |
| Length | 20.32mm |
| Model | 796861-2 |
| Depth | 25mm |
| Width | 12.5mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Number of Contacts | 2 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
Key Features
- Supports a maximum current of 15A for moderate power applications.
- Rated to handle up to 300V AC voltage for safety compliance.
- Constructed with durable polyamide 6.6 GF housing for robust insulation and mechanical strength.
- Compatible with wire sizes ranging from 0.05 mm² to 3 mm² and AWG sizes 12 to 30.
- Features male connector gender with straight orientation for easy PCB mounting.
- Compact dimensions measuring 12.5 mm width, 20.32 mm length, and 25 mm depth.
- Equipped with M3 screw clamp terminals and locking screw flange for secure connections.
- The green color coding aids in identification and wire management.
Product Description
TE Connectivity 796861-2 is a high-quality pluggable terminal block featuring two contacts arranged in a single row with a 5.08 mm pitch. It is engineered to support electrical connections requiring up to 15 amperes of current and rated for 300 volts AC, making it suitable for a variety of industrial and electronic applications.
The housing is made from polyamide 6.6 GF, a glass fiber reinforced polymer, which provides mechanical durability and electrical insulation. Its male connector gender and straight orientation enable straightforward PCB mounting and integration with compatible terminal block systems.
The terminal block supports wire sizes from 0.05 mm² up to 3 mm² (AWG 12 to 30), accommodating a range of wiring requirements. The M3 screw clamp terminals and locking screw flange ensure secure and vibration-resistant connections in dynamic environments.
With compact physical dimensions of 12.5 mm width, 20.32 mm length, and 25 mm depth, this component is ideal for space-constrained PCB assemblies.
The block's green color coding facilitates wire identification, improving safety and maintenance efficiency. This product is part of the Buchanan series, known for its reliable two-part terminal block designs, supporting easy assembly and disassembly processes.
Supports maximum current load of 15 amperes for reliable performance. Rated for 300 volts AC, providing electrical safety compliance. Polyamide housing material offers high mechanical strength and electrical insulation. Accommodates wire sizes from 0.05 mm² to 3 mm² (12 AWG to 30 AWG).
Male connector gender with straight orientation for PCB mounting versatility. Dimensions: 12.5 mm (W) x 20.32 mm (L) x 25 mm (D) for compact installations. Features M3 screw clamp terminals and locking screw flange for secure connections.
Green color enhances wire management and identification. Ideal for use in industrial electronics, manufacturing equipment, and PCB assemblies.
This Pluggable Terminal Block is suitable for demanding industrial, laboratory, manufacturing, and electronic device assembly settings. It provides a secure, reliable connection interface for wiring in a wide array of electrical circuits.
Browse the Electronics Components category at EnvMart for more TE Connectivity terminal blocks and connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum current of 15A, making it suitable for moderate power applications.
This model is rated to handle up to 300V AC, ensuring safety compliance in electrical applications.
The compact dimensions are 12.5 mm in width, 20.32 mm in length, and 25 mm in depth, suitable for space-constrained PCB assemblies.
It is compatible with wire sizes ranging from 0.05 mm² to 3 mm² and AWG sizes from 12 to 30.
The housing is constructed from polyamide 6.6 GF, providing mechanical durability and electrical insulation.
It features a male connector gender with a straight orientation, allowing for straightforward PCB mounting.
It is equipped with M3 screw clamp terminals and a locking screw flange for secure connections.
The terminal block has green color coding, which aids in wire identification and management.
This model features two contacts arranged in a single row, with a pitch of 5.08 mm.
Yes, it is designed for use in demanding industrial, laboratory, manufacturing, and electronic device assembly settings.
It is part of the Buchanan series, known for its reliable two-part terminal block designs.
The country of origin for this product is India.
