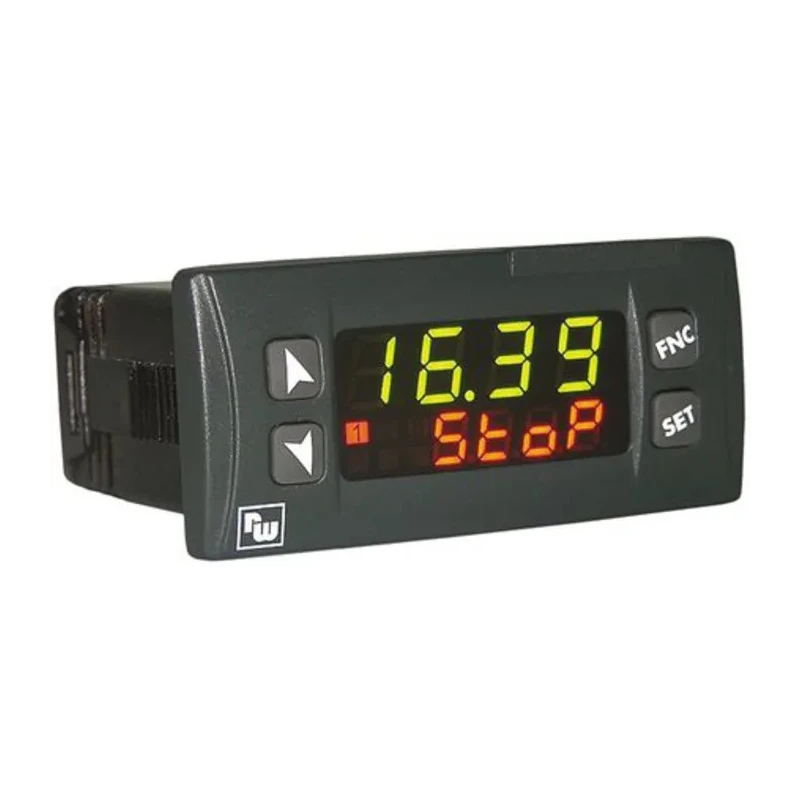

Wachendorff Panel Timer Relay Multifunction SPDT, 2-Contact, 24 to 230 V dc/ac, 5A, IP65 TI32

Wachendorff TI32 Panel Timer Relay is a multifunction, programmable timing device designed for panel mount applications in industrial environments. This relay incorporates two SPDT contacts and supports a wide supply voltage range of 24 to 230 V dc or ac. It is engineered for precision timer control with five configurable modes including timer-on, timer-off, pause-work, oscillator, and PWM output mode, each with independently settable on-off times.

The device features a robust design with an IP65 rating for dust and water resistance and an additional IP20 rating to protect internal components. It operates within a temperature range of 0°C to 40°C, making it adaptable to typical industrial ambient conditions. The relay supports a contact current capacity of 5 A suitable for switching moderate electrical loads.

Ease of use is enhanced by a two-line LED display and programming capability via front keys or software interface. Screw terminal connections facilitate secure wiring and installation. The timer also includes three digital inputs compatible with NPN, PNP, or potential-free contacts for start, stop, and reset functions. An analog input allows external potentiometer adjustment of operating times.

Constructed with UL 94 V0 flame retardant materials, the TI32 series meets strict safety standards. Its compact size (77 mm width, 53 mm height, 35 mm length) is optimized for integration into existing control panels.

This timer relay is ideal for use in industrial automation controls, electrical panel assemblies, HVAC systems, and other applications requiring precise timed switching and multifunctional relay operation. It enhances system reliability and operational flexibility in demanding industrial settings.

Multifunction timer with five programmable modes including PWM and oscillator. Wide input voltage range from 24 to 230 V dc and ac for versatile installation. IP65 and IP20 protection ratings ensure durability in harsh environments.

5 Amp contact rating supports industrial load switching requirements. LED display and software programming provide convenient user interface. Screw terminals enable secure and straightforward wiring connections. Supports digital inputs for remote control and analog input for timing adjustments.

UL 94 V0 certified flame retardant enclosure enhances safety. Compact panel mount form factor fits standard industrial enclosures. Explore more Timer Relays and automation products on EnvMart for reliable industrial control.
