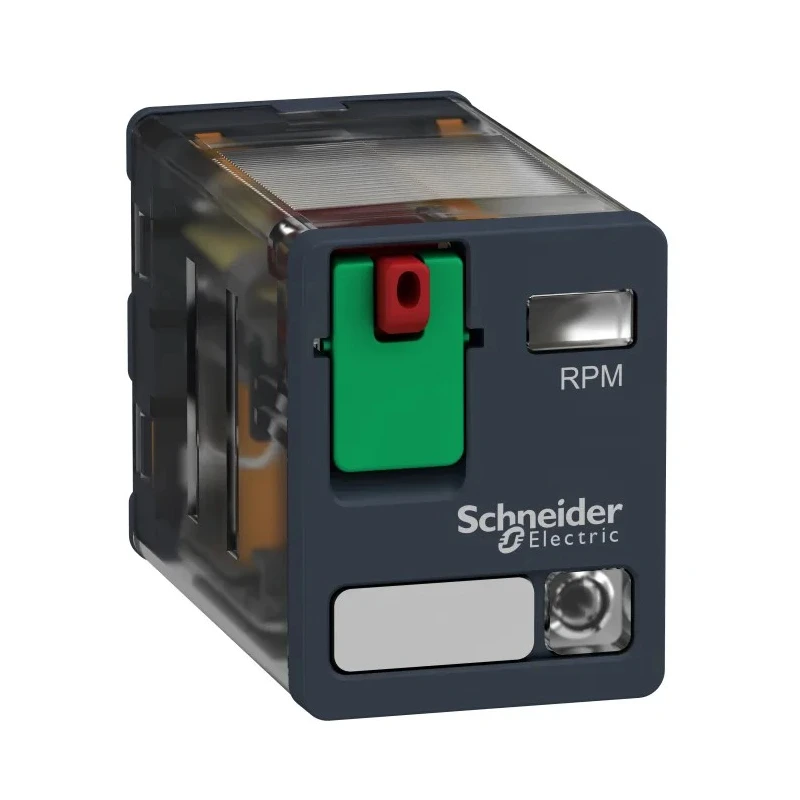

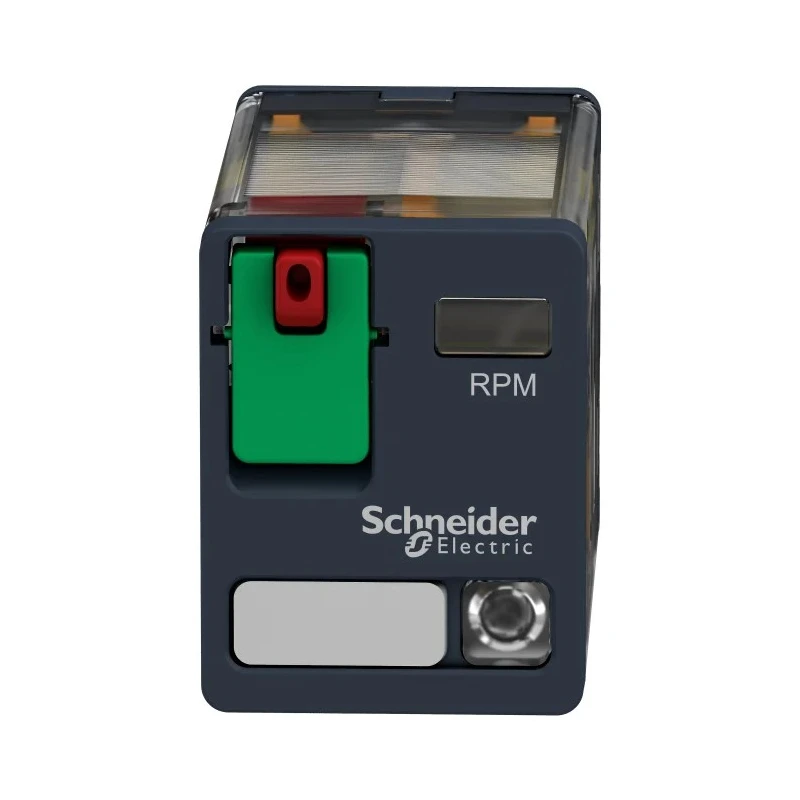

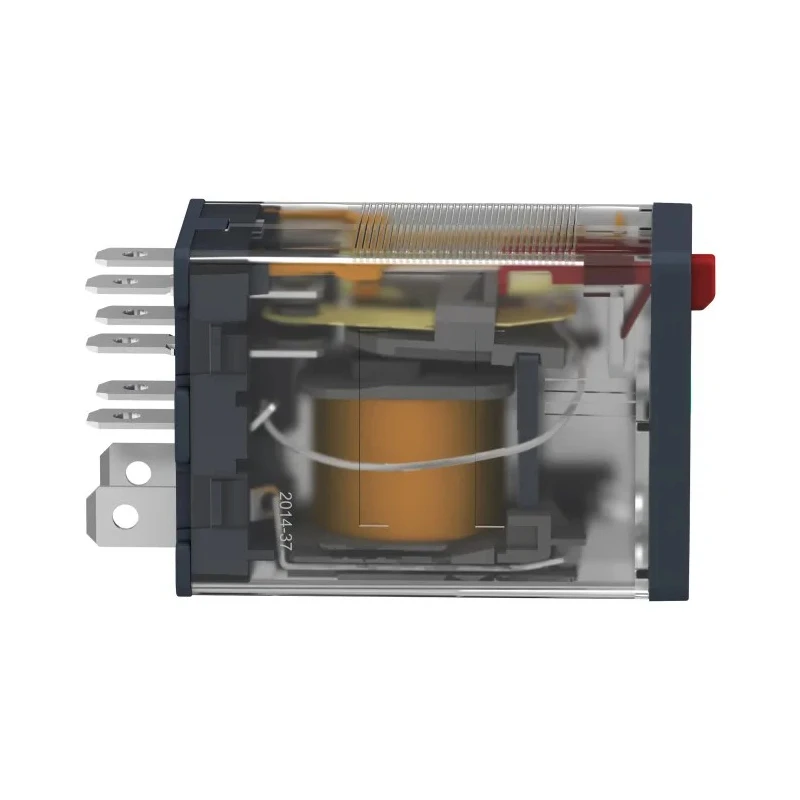

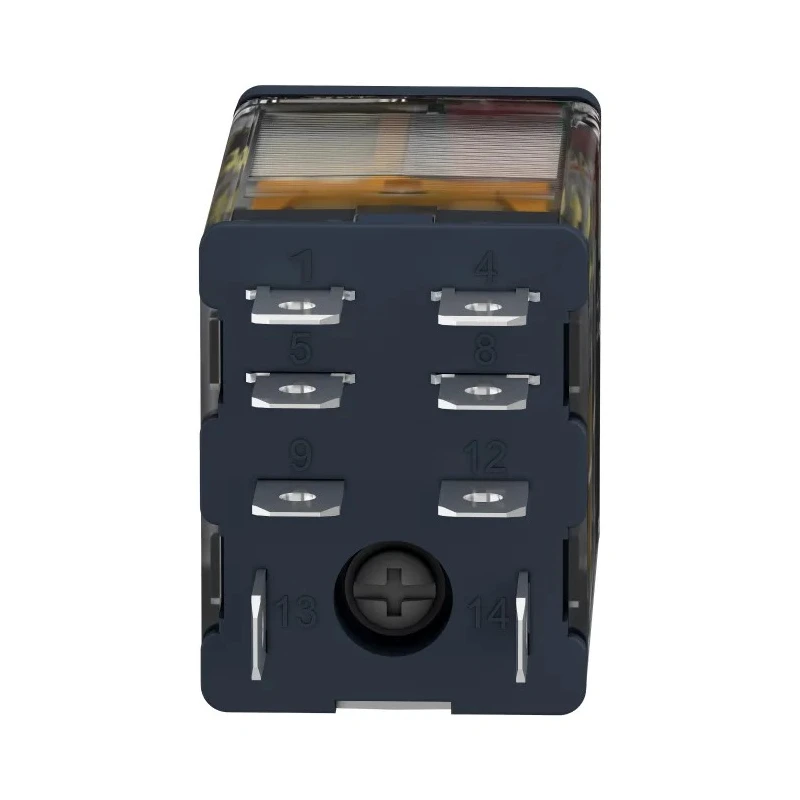

Schneider Electric Panel Power Relay 24V ac Coil 15A Switching Current DPDT RPM22B7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RPM22B7 |
| Width | 47mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RP |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 15A |
| Terminal type | Plug-In |
| Standards/Approvals | RoHS |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 277V |
| Coil Power | 1.1W |
| Switching Power | 420W |
Key Features
- Operates at coil voltage of 24V ac for efficient power relay function.
- Features a double-pole double-throw (DPDT) contact configuration for versatile switching.
- Supports switching AC voltage up to 277 volts and DC voltage up to 28 volts.
- Designed for panel mounting with plug-in terminal type for easy installation.
- Endures operating temperatures from -40°C to 55°C, suited for varied conditions.
- Switching capacity rated at 15 amps with maximum switching power of 420 watts.
- Equipped with silver alloy contact material for enhanced conductivity and durability.
- Compact dimensions of 47mm width, 21mm length, and 27mm height suitable for panel integration.
Product Description
Schneider Electric RPM22B7 is a robust Panel Power Relay designed for precise industrial and automation control applications. It operates at a coil voltage of 24V ac and provides a reliable DPDT (double-pole double-throw) contact configuration, ideal for switching various electrical circuits with a switching current capacity of 15 amperes.
This relay supports switching of AC voltages up to 277 volts and DC voltages up to 28 volts, ensuring compatibility with a wide range of electrical load requirements. It features a plug-in terminal type and is suited for panel mounting, allowing straightforward installation and maintenance in control panels and electrical assemblies.
Operating reliably within a temperature range from -40°C to +55°C, the relay withstands diverse environmental conditions. Its compact size, measuring 47mm in width, 21mm in length, and 27mm in height, allows integration into constrained panel spaces without compromise.
The relay utilizes silver alloy contacts which enhance conductivity and extend operational life, combined with a low coil power consumption of only 1.1 watts, promoting energy efficiency. Compliance with RoHS standards further confirms its adherence to safety and environmental guidelines.
Operates at 24V ac coil voltage with 15A switching current capacity. DPDT contact configuration supports complex control schemes. Suitable for panel mounting with plug-in terminals for ease of use. Switching AC voltage up to 277V and DC voltage up to 28V.
Wide operating temperature range from -40°C to 55°C for durability. Compact design with dimensions of 47x21x27 mm. Silver alloy contacts for reliable electrical performance. Low coil power consumption of 1.1W enhances efficiency.
RoHS certified ensuring compliance with environmental standards.
This Schneider Electric panel power relay is ideal for control systems in industrial manufacturing, electrical distribution, HVAC, and automation applications where dependable switching and robust electrical characteristics are essential. Choose Schneider Electric RPM22B7 for high-quality power relay solutions backed by international standards in electrical safety and performance.
Explore more products within the Power Relay category on EnvMart for comprehensive solutions tailored to your industrial and electrical automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 24V AC.
This model has a maximum switching current of 15A.
It features a double-pole double-throw (DPDT) contact configuration.
The dimensions are 47mm in width, 21mm in length, and 27mm in height.
It can switch AC voltages up to 277 volts.
The relay supports switching DC voltages up to 28 volts.
It operates reliably within a temperature range from -40°C to +55°C.
It features a plug-in terminal type for easy installation.
The coil power consumption is only 1.1 watts.
The contacts are made of silver alloy, enhancing conductivity.
Yes, it is RoHS certified, ensuring compliance with environmental standards.
It is suitable for control systems in industrial manufacturing, electrical distribution, HVAC, and automation applications.
