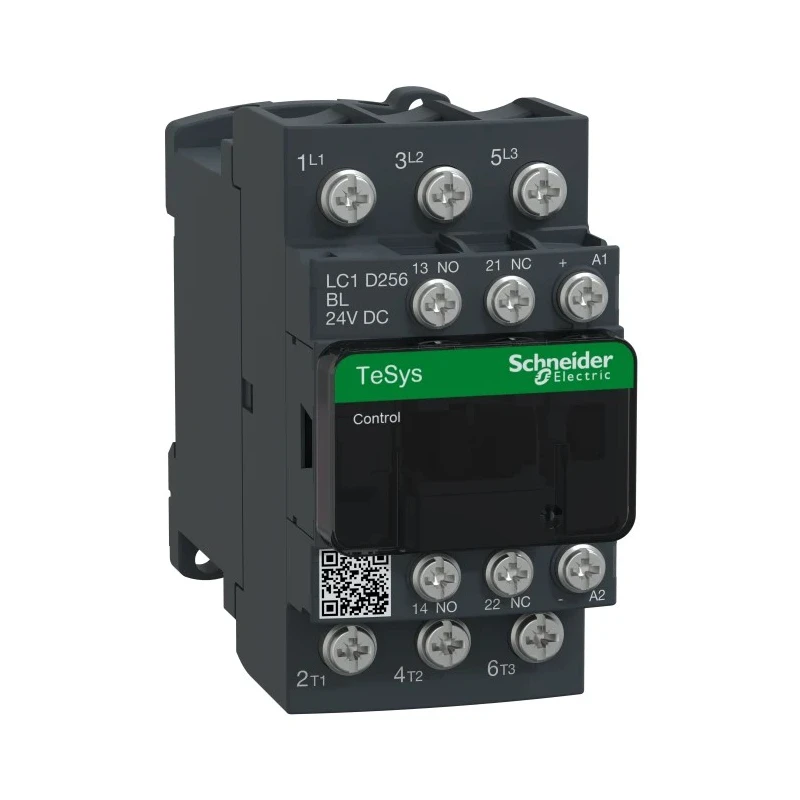

Schneider Electric LC1D Contactor 24V dc Coil, 3-Pole, 25A, 11kW Power Rating, 3 NO, 600V ac LC1D256BL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 45mm |
| Model | LC1D256BL |
| Depth | 99mm |
| Width | 99mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 11kW |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 600V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- The contactor features a 24V dc coil voltage for reliable coil activation.
- It has a 3-pole configuration supporting 600V ac contact voltage.
- Rated for a power capacity of 11 kW, supporting robust motor and resistive load control.
- Equipped with 3 normally open (NO) contacts and 2 auxiliary contacts with 1 NO and 1 NC configuration.
- Designed for DIN rail mounting with screw type terminals ensuring secure installation.
- Operates efficiently within an ambient temperature range of -40°C to +70°C.
- Complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
- Compact dimensions of 99mm width, 99mm depth, and 45mm length facilitate panel integration.
Product Description
Schneider Electric LC1D256BL contactor is engineered for industrial and automation applications requiring reliable motor control and resistive load switching. It features a 24V dc coil enabling energized operation with ease of integration into control circuits. The device includes three poles with a contact voltage rating of 600V ac and a contact current capacity of 25A, supporting power ratings up to 11 kW.
Constructed for DIN rail mounting with screw terminals, it allows straightforward and secure panel installation. The contactor features 3 normally open main contacts and 2 auxiliary contacts configured as 1 normally open and 1 normally closed, suitable for control and signaling purposes.
With operational temperature tolerance from -40°C to 70°C, the contactor performs under a wide range of industrial environments. Compliant with multiple standards such as CCC, CSA, EAC, IEC, RoHS, and UL, the device meets high reliability and safety requirements.
The Schneider TeSys LC1D contactors are designed for applications including motor starters, heating circuits, and resistive load control, providing excellent vibration and shock resistance. The linear translation movement ensures double breaking of poles enhancing switching reliability.
The contactor coil operates at 24V dc ensuring controlled and low power coil activation. Three-pole design allows controlling three separate power circuits simultaneously. Its 25A contact current and 11 kW power rating support various motor control and heavy resistive load applications.
Auxiliary contacts enable monitoring and remote signaling in control systems. Compact dimensions suit installation in space-constrained panels and equipment. Designed for disassembly, supporting sustainability and efficient recycling.
Meets rigorous industry standards ensuring safety and performance. Applications include lifts, escalators, conveyors, pumps, compressors, mixers, and air conditioning units.
Choose Schneider Electric LC1D256BL Contactor for robust, high-quality switching in industrial, manufacturing, HVAC, and automation sectors. Explore more products in the Automation & Control Gear category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 11 kW, supporting robust motor and resistive load control.
It operates with a coil voltage of 24V dc, allowing for reliable coil activation.
The contactor supports a maximum contact voltage of 600V ac.
This contactor features a 3-pole configuration, allowing control of three separate power circuits.
It has a contact current capacity of 25A, suitable for various applications.
The dimensions are 99mm in width, 99mm in depth, and 45mm in length.
It is designed for DIN rail mounting with screw-type terminals for secure installation.
The contactor operates efficiently within an ambient temperature range of -40°C to +70°C.
It complies with several international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
It is suitable for motor control and resistive load applications, including lifts, escalators, and pumps.
The LC1D256BL includes 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
The auxiliary contacts are used for control and signaling purposes in various applications.
