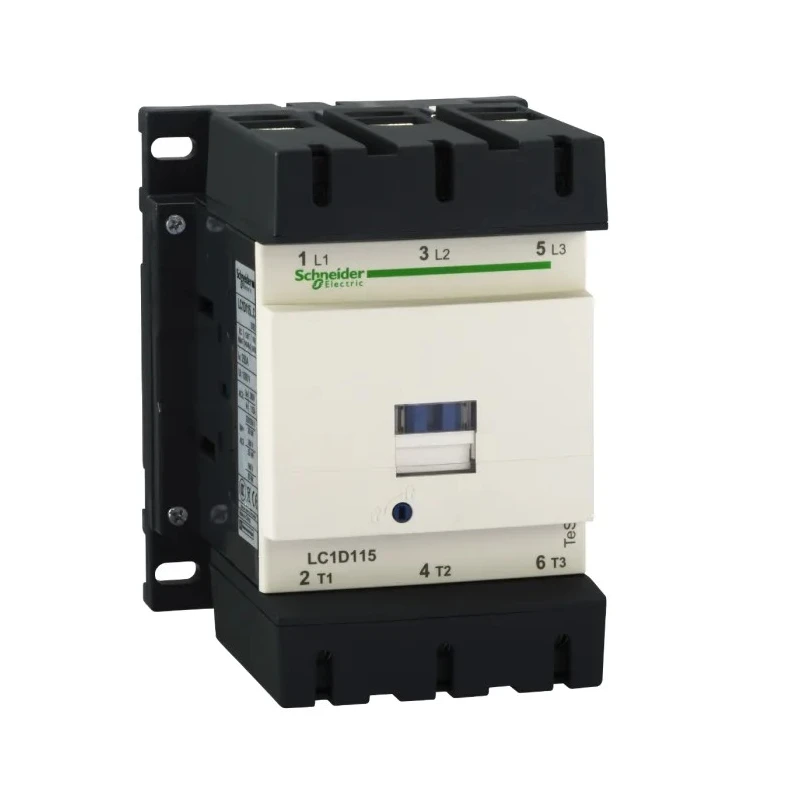

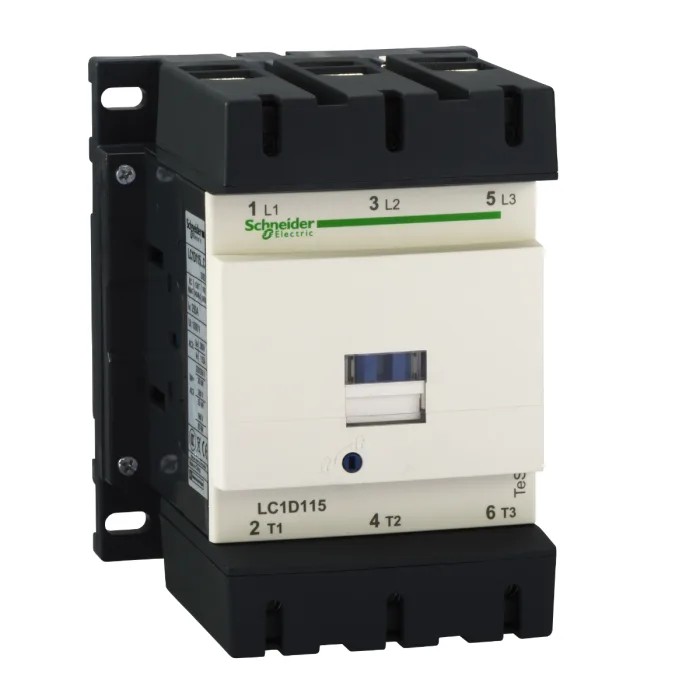

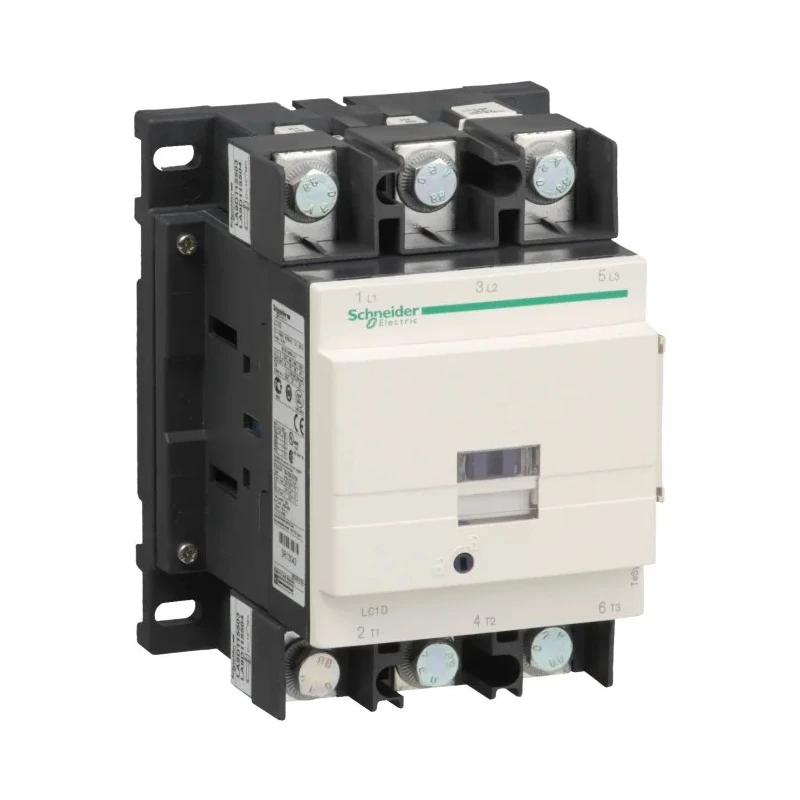

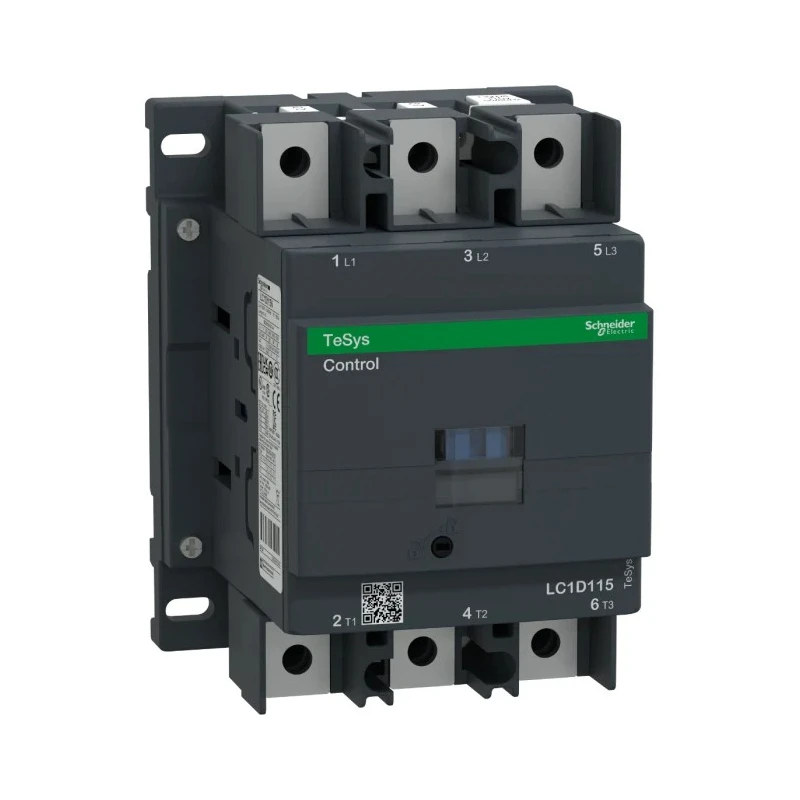

Schneider Electric LC1D Contactor 230V AC Coil 3-Pole 115A 30kW 3 NO 1kV AC LC1D1156P7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 158mm |
| Model | LC1D1156P7 |
| Depth | 136mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 30kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Lug Ring |
| Number of Poles | 3 |
| Standards/Approvals | EN 60947-4-1 |
| Contact Voltage | 1kV ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 115A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 115A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 3 poles and 3 normally open contacts for reliable switching.
- Coil voltage is 230V AC with control circuit voltage also at 230V AC.
- Mountable via DIN Rail or panel screws for flexible installation.
- Auxiliary contacts include 1 normally open and 1 normally closed configuration.
- Constructed with lug ring terminals and IP20 finger-safe screw connections.
- Operates from -40°C up to 60°C, suitable for industrial environments.
- Conforms to EN 60947-4-1 standards ensuring quality and safety compliance.
- Utilization categories AC-1 and AC-3 support resistive and motor loads respectively.
Product Description
Schneider Electric LC1D1156P7 is a robust 3-pole contactor equipped with a 230V AC coil, designed for industrial applications including motor control and resistive load switching. With a contact current rating of 115A and a power rating of 30kW at 230V AC, this contactor delivers reliable performance across demanding use cases.
The contactor features 3 normally open contacts (3 NO) and 2 auxiliary contacts configured as 1 normally open and 1 normally closed, providing enhanced switching flexibility. Its lug ring terminals and IP20 finger-safe screw connections comply with both North American and international terminal marking standards, ensuring both safety and ease of installation.
Mounting options include DIN Rail or panel mounting with screws, accommodating various control panel designs. The unit operates within a temperature range of -40°C to 60°C, suitable for harsh industrial environments. Conforming to EN 60947-4-1 standards, it meets rigorous quality and safety benchmarks.
The LC1D series contactors use linear translation movement to provide double pole breaking for enhanced contact durability. The TeSys D range supports utilization categories AC-1 (resistive loads, heating, distribution) and AC-3 (squirrel cage motors with breaking while running), covering broad industrial motor control needs.
Equipped with built-in auxiliary contacts for additional switching capabilities. Screw connections provide IP20 finger-safe terminals with international markings. Designed for easy installation and maintenance with flexible control circuits.
Bidirectional peak limiting diode suppressor protects the coil from voltage spikes. Suitable for applications like lifts, conveyors, compressors, pumps, and HVAC systems.
This contactor is ideal for industrial, manufacturing, HVAC, and construction applications requiring reliable motor and resistive load switching. It combines long mechanical and electrical life with straightforward setup and integration into control systems.
Explore the range of Schneider Electric Contactors and accessories on EnvMart for professional automation and control gear solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 30kW at 230V AC.
The contact current rating is 115A.
It can be mounted via DIN Rail or panel screws, providing flexible installation options.
The coil voltage for this model is 230V AC.
It operates within a temperature range of -40°C to 60°C, suitable for harsh industrial environments.
This contactor is equipped with 3 poles.
It features 2 auxiliary contacts configured as 1 normally open and 1 normally closed.
It conforms to EN 60947-4-1 standards, ensuring quality and safety compliance.
It supports both motor control and resistive load applications, with utilization categories AC-1 and AC-3.
The dimensions are 158mm in length, 120mm in width, and 136mm in depth.
It uses lug ring terminals with IP20 finger-safe screw connections.
It is suitable for applications such as lifts, conveyors, compressors, pumps, and HVAC systems.
