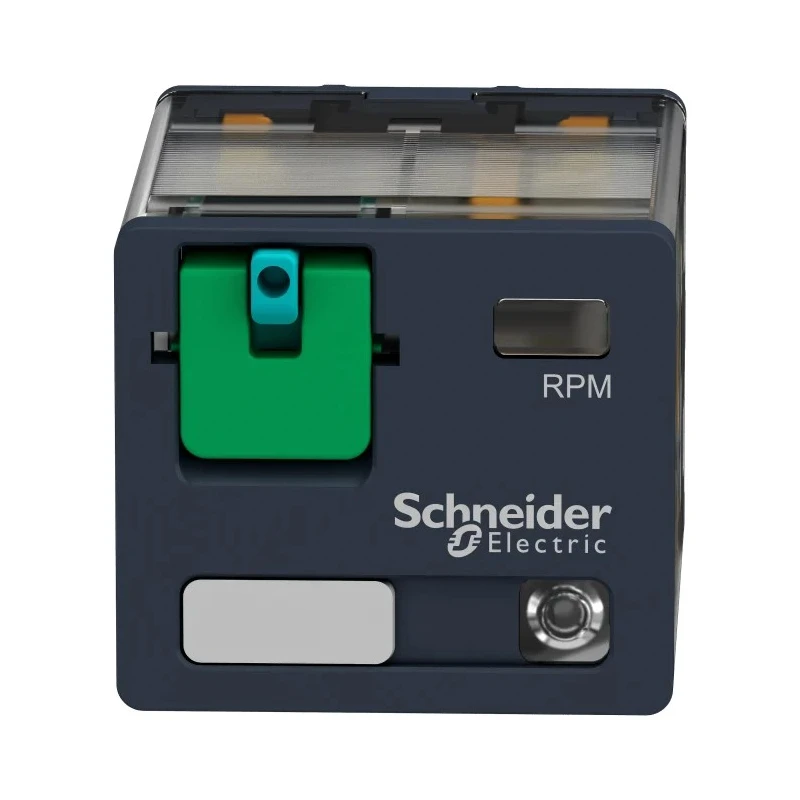

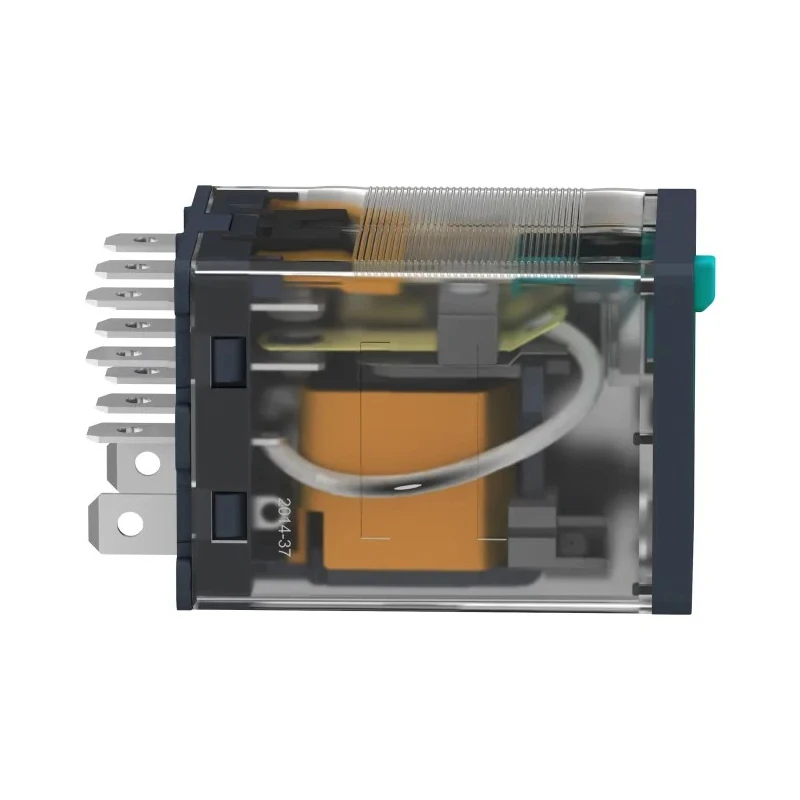

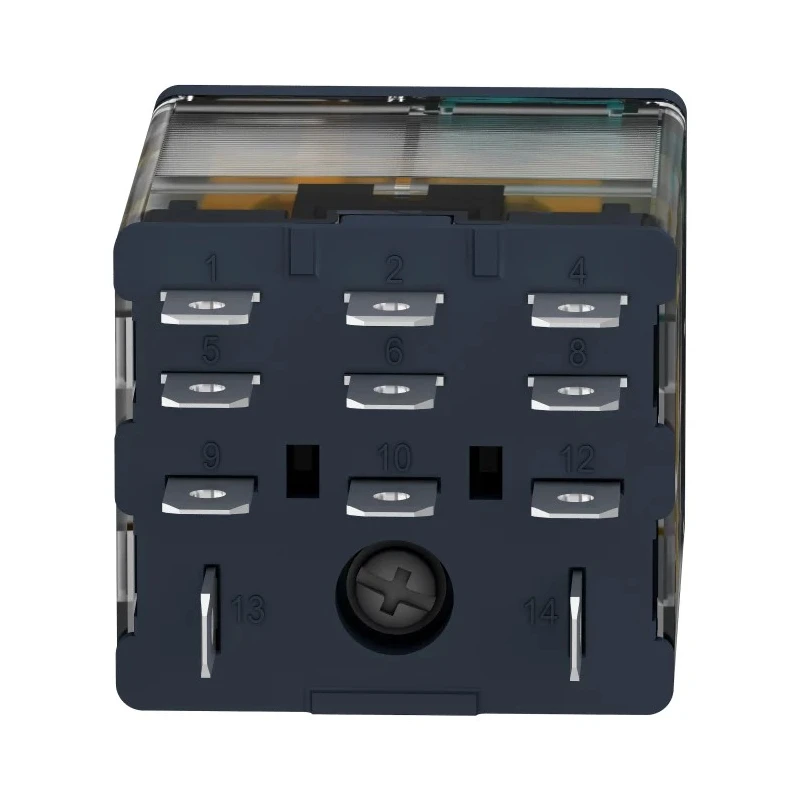

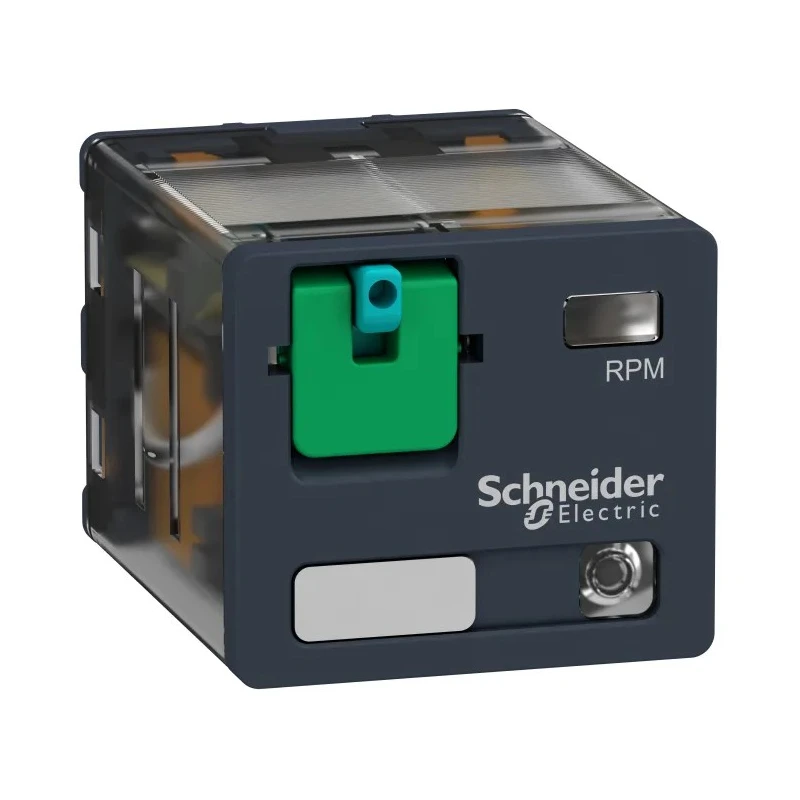

Schneider Electric Panel Power Relay 24V DC Coil 15A Switching Current 3PDT RPM32BD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 31mm |
| Model | RPM32BD |
| Width | 47mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RP |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 15A |
| Terminal type | Plug-In |
| Standards/Approvals | RoHS |
| Coil Resistance | 320Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.5W |
Key Features
- This relay is designed for panel mounting with plug-in terminal type for easy installation.
- It belongs to the Harmony Relay RP series ensuring reliable industrial performance.
- The coil resistance is 320Ω with a coil power consumption of 1.5W for efficient operation.
- Operates between a minimum temperature of -40°C up to a maximum of 55°C, suitable for varied environments.
- Silver alloy contact material enhances durability and conductivity.
- Rated for switching voltages up to 250V AC and 28V DC, supporting versatile applications.
- Compact dimensions of 31mm length, 47mm width, and 27mm height reduce enclosure size.
- Complies with RoHS standards, meeting environmental and safety regulations.
Product Description
Schneider Electric RPM32BD is a high-performance Panel Power Relay featuring a 24V DC coil and a switching current capacity of 15A with a 3PDT (triple pole double throw) contact configuration. Engineered for robust industrial use, this relay supports electrical switching operations in automation and control applications.
The plug-in relay design allows simple panel mounting, offering ease of installation and maintenance. It is part of the Harmony Relay RP series, known for reliability and compact size, which helps reduce the overall size of electrical enclosures.
This relay operates with coil resistance of 320Ω, consuming 1.5W of coil power. It is rated for switching voltages up to 250V AC and 28V DC, making it versatile enough to serve different industrial, HVAC, and manufacturing applications. The relay can withstand operating temperatures ranging from -40°C to 55°C, suitable for harsh environmental conditions.
The use of silver alloy contacts ensures excellent conductivity and longevity, critical for demanding electrical switching. Its compact physical dimensions of 31mm length, 47mm width, and 27mm height optimize space usage in control panels.
Schneider Electric RPM32BD complies with RoHS standards, ensuring environmentally responsible manufacturing practices. This relay is commonly utilized in industrial automation systems, electrical control panels, and programmable logic controllers (PLCs) for reliable switching and control of electrical circuits.
This relay is designed for panel mounting and plug-in type terminal connection. 3PDT contact configuration caters to multiple switching applications. Supports switching currents up to 15 amperes for high load handling. Coil voltage of 24V DC with 1.5W coil power consumption for efficient control.
Max operating temperature of 55 degrees Celsius and min of -40 degrees Celsius. Compact size facilitates installation in confined control panel spaces. Silver alloy contacts ensure reliable electrical conductivity and longer life.
Certified RoHS compliant to meet environmental standards. Explore more Schneider Electric Power Relays and automation components on EnvMart for industrial, manufacturing, and commercial electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 15A, allowing it to handle significant electrical loads in various applications.
The RPM32BD model operates with a coil voltage of 24V DC, which is essential for its functioning in control systems.
The relay has compact dimensions of 31mm in length, 47mm in width, and 27mm in height, making it suitable for confined spaces in control panels.
It features a 3PDT (triple pole double throw) contact configuration, which allows for versatile switching applications.
The relay can operate within a temperature range of -40°C to 55°C, making it suitable for various environmental conditions.
The coil resistance for this relay is 320Ω, which contributes to its efficient operation with a coil power consumption of 1.5W.
The contacts of this relay are made from silver alloy, which enhances conductivity and durability in electrical switching applications.
This model is designed for panel mounting and features a plug-in terminal type for easy installation and maintenance.
It is rated for switching voltages up to 250V AC and 28V DC, making it versatile for different applications.
This relay complies with RoHS standards, ensuring it meets environmental and safety regulations.
The RPM32BD is commonly utilized in industrial automation systems, electrical control panels, and programmable logic controllers (PLCs).
It is part of the Harmony Relay RP series, which is known for its reliability and compact design suitable for industrial use.
