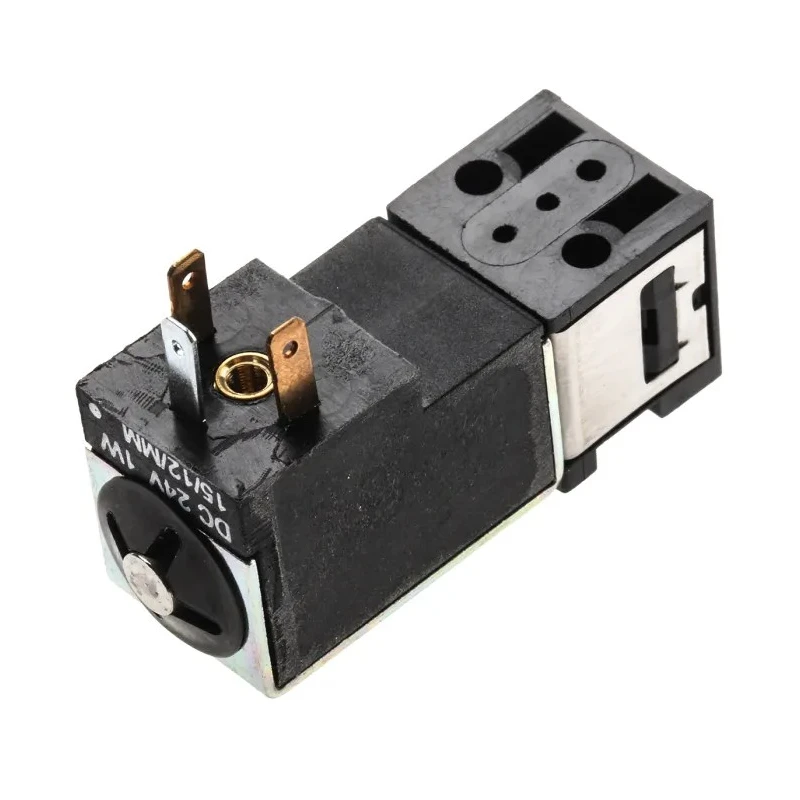

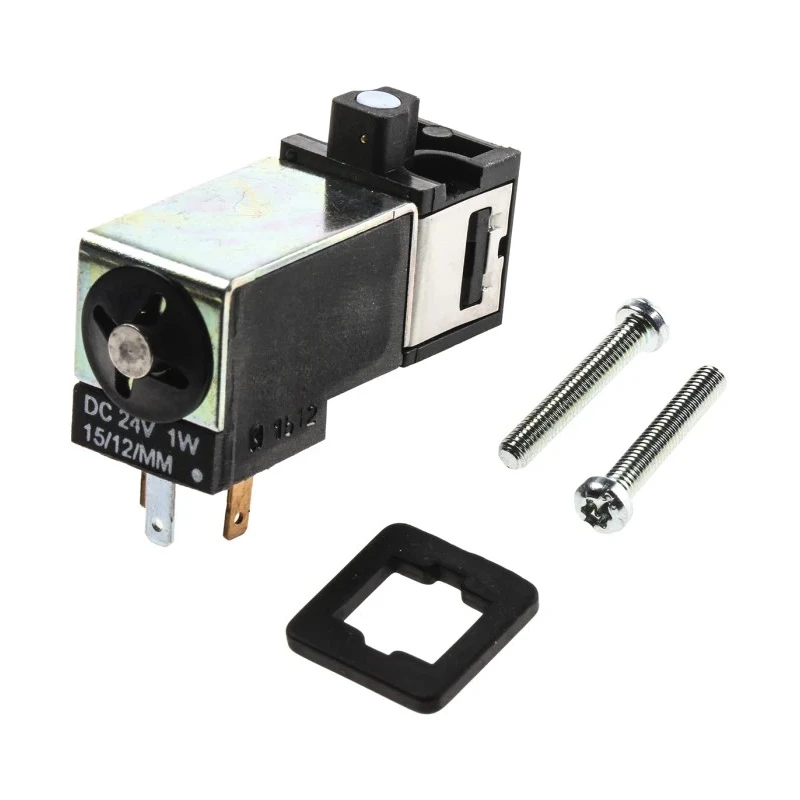

Crouzet Pneumatic Solenoid Valve 3/2 Series 24V DC Manifold Mount 8 bar 25NL/min 81519332
Specifications
| Country of Origin | Morocco |
|---|---|
| Voltage | 24V dc |
| Brand | Crouzet |
| Maximum Operating Pressure | 8 bar |
| Height | 26mm |
| Length | 42mm |
| Model | 81519332 |
| Width | 15mm |
| Mount Type | Manifold |
| Series | 3/2 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -10°C |
| Maximum Flow Rate | 25NL/min |
| Mount Pattern | DIN |
| Minimum Pilot Pressure | 1bar |
| Valve Function | 3/2 |
| Solenoid Power Consumption | 1W |
| Crouzet 3/2 Pneumatic Control Valve - Solenoid/Pilot 81 Series 24V dcBrand | Crouzet |
Key Features
- The valve operates with a maximum flow rate of 25NL/min.
- Designed for compressed air or inert gas with oil-free air filtration up to 50 microns.
- Low power consumption of 1W enhances energy efficiency.
- Suitable for use in automation with programmable controllers.
- Manual override by impulse for operational flexibility.
- Operating temperature range from -10°C to 50°C supports diverse environments.
- Robust and compact with dimensions 42mm length, 26mm height, and 15mm width.
- Mount pattern DIN for standard installation compatibility.
Product Description
The Crouzet 81519332 pneumatic solenoid valve 3/2 series is a high-performance electro-pneumatic miniature valve designed for industrial automation and fluid power control. Operating at 24V DC, this manifold mount valve features three ports and functions as a normally closed valve, effectively controlling air flow in pneumatic systems.
Optimized for compressed air or inert gases, the valve ensures oil-free operation with filtration up to 50 microns to prolong system life and maintain purity. The valve demonstrates a maximum flow rate of 25NL/min and supports operating pressures up to 8 bar. It offers a manual override function via impulse for emergency or maintenance purposes.
Constructed with a compact form factor, the valve measures 42 mm in length, 26 mm in height, and 15 mm in width, facilitating easy integration into existing pneumatic circuits. It mounts on a sub-base or footprint following CNOMO recommendations with a DIN mount pattern for reliable mechanical support.
The Crouzet solenoid valve is designed for harsh industrial conditions, operating efficiently in temperatures ranging from -10°C to 50°C. It consumes only 1 watt of solenoid power, reflecting energy efficiency alongside robust performance. Additionally, it is rated IP65, ensuring protection against dust ingress and water jets, suitable for industrial applications.
This product is ideal for fluid power systems used in manufacturing, automation, packaging, and HVAC systems. It interfaces seamlessly with programmable controllers for precise pneumatic drive control.
Maximum operating pressure of 8 bar. Three ports manifold mount design. Low power consumption of 1 watt. Operating temperature range suitable for various environments. Oil-free air filtration up to 50 microns. Manual override feature available.
Compact dimensions for easy installation. IP65 certification for dust and water protection. Compatible with programmable controllers and DIN mounting patterns.
Choose the Crouzet 81519332 Pneumatic Solenoid Valve for reliable, energy-efficient pneumatic control in industrial and manufacturing settings. Explore more industrial valves and pneumatic control solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum flow rate of this pneumatic solenoid valve is 25NL/min.
This model operates at a maximum pressure of 8 bar and requires a minimum pilot pressure of 1 bar.
The valve operates at a voltage of 24V DC.
The dimensions of this unit are 42mm in length, 26mm in height, and 15mm in width.
It operates efficiently within a temperature range of -10°C to 50°C.
This model features a DIN mount pattern for standard installation compatibility.
Yes, it includes a manual override function via impulse for operational flexibility.
It is designed for use with compressed air or inert gases, ensuring oil-free operation with filtration up to 50 microns.
The solenoid power consumption is low, at only 1 watt.
This unit functions as a 3/2 valve, effectively controlling air flow in pneumatic systems.
The valve is rated IP65, providing protection against dust ingress and water jets.
The Crouzet pneumatic solenoid valve is manufactured in Morocco.
