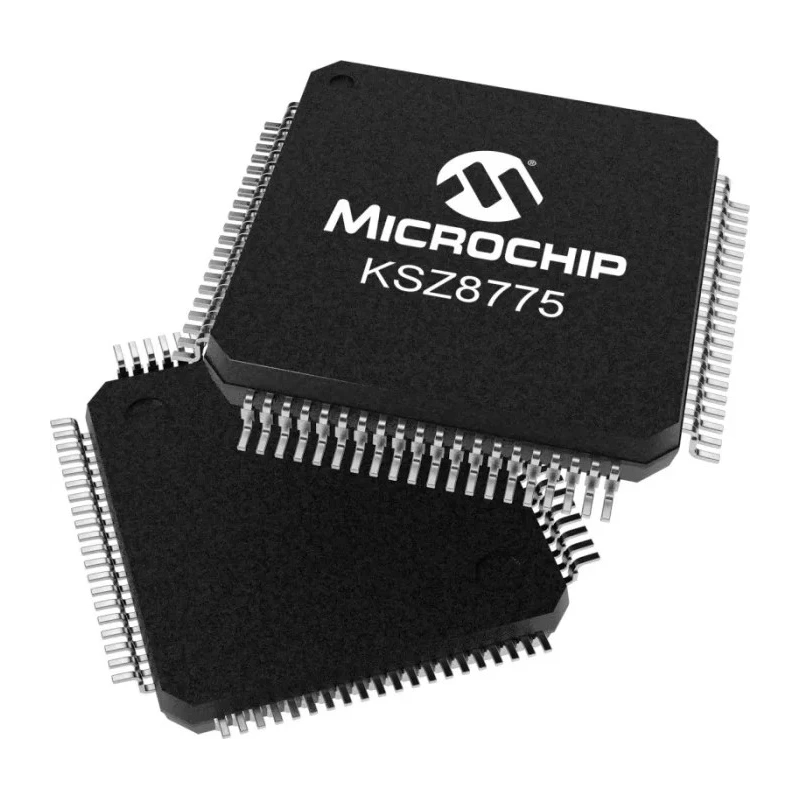

Microchip 80-Pin LQFP Ethernet Switch IC, 3.3 V to 3.46 V, 100 Mbps RMII, RGMII, MII, Full Duplex/Half Duplex KSZ8775CLXIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | KSZ8775CLXIC |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Communication Mode | Full Duplex/Half Duplex |
| Interface Type | RMII, RGMII, MII |
| Standards/Approvals | RoHS |
| Pin Count | 80 |
| Maximum Supply Voltage | 3.46V |
| Minimum Supply Voltage | 3.3V |
| Maximum Data Rate | 100Mbps |
| Number of Transceivers | 4 |
Key Features
- The device features four transceivers supporting RMII, RGMII, and MII interfaces.
- It is packaged in a compact 80-pin LQFP format for space-saving PCB designs.
- Operates reliably within a temperature range of -40°C to 85°C for industrial applications.
- Includes comprehensive Layer 2 management features such as VLAN, QoS, and ACL-based packet filtering.
- Designed for low power consumption with internal biasing and on-chip termination.
- Provides a high-performance shared memory-based switch fabric with non-blocking support.
- Supports three 10/100 Mbps copper ports plus one RMII and one Gigabit uplink port for flexible connectivity.
- Complies with RoHS environmental standards ensuring lead-free manufacturing.
Product Description
Microchip KSZ8775CLXIC is an 80-pin LQFP Ethernet Switch IC designed for advanced networking and communication applications requiring up to 100 Mbps data rates. Operating at a supply voltage range from 3.3 V to 3.46 V, it supports both full duplex and half duplex communication modes, making it highly versatile for various industrial networking environments.
This IC integrates four transceivers with RMII, RGMII, and MII interface types, including three 10/100BASE-T/TX MAC/PHYs, one 10/100BASE-T/TX MAC with RMII interface, and one 10/100/1000Base-T/TX GMAC with selectable interfaces. It is optimized for cost-sensitive applications requiring multiple ports with reliable switching capabilities.
The KSZ8775CLXIC features extensive Layer 2 management functionalities such as programmable rate limiting, priority ratio adjustment, tagged and port-based VLAN, port-based security, ACL rule-based packet filtering, and QoS with four priority queues. Its architecture is based on a shared memory switch fabric to ensure high performance without blocking.
Manufactured with a small package outline, this IC assures the lowest power consumption using internal biasing and on-chip termination techniques. It is qualified for operating temperatures from -40°C up to 85°C, making it suitable for industrial, manufacturing, HVAC, and commercial network system installations.
The device's four transceiver ports support standard Ethernet interfaces RMII, RGMII, and MII for flexible integration. Includes advanced power management features to reduce overall system power consumption. Supports QoS functionality to prioritize network traffic efficiently for real-time applications.
Enables network security and controlled access via port-based security and ACL filtering. Compact 80-pin LQFP package facilitates conservation of PCB space in embedded systems.
This Ethernet Switch IC is ideal for industrial automation, communication systems, network equipment, and embedded Ethernet applications requiring reliable switching performance and advanced management features.
Explore more Microchip semiconductor products on EnvMart to find compatible components for your networking projects and industrial automation needs.
Explore more products in our Ethernet Interface Ics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KSZ8775CLXIC supports a maximum data rate of 100 Mbps.
This model supports both full duplex and half duplex communication modes.
It operates reliably within a temperature range of -40°C to 85°C.
The KSZ8775CLXIC features four transceivers.
It supports RMII, RGMII, and MII interface types.
This Ethernet Switch IC is packaged in an 80-pin LQFP format.
The minimum supply voltage is 3.3 V and the maximum is 3.46 V.
Yes, it complies with RoHS environmental standards, ensuring lead-free manufacturing.
It includes Layer 2 management features such as VLAN, QoS, and ACL-based packet filtering.
It is suitable for industrial automation, communication systems, network equipment, and embedded Ethernet applications.
The shared memory switch fabric provides high performance with non-blocking support for data traffic.
The country of origin for this product is India.
