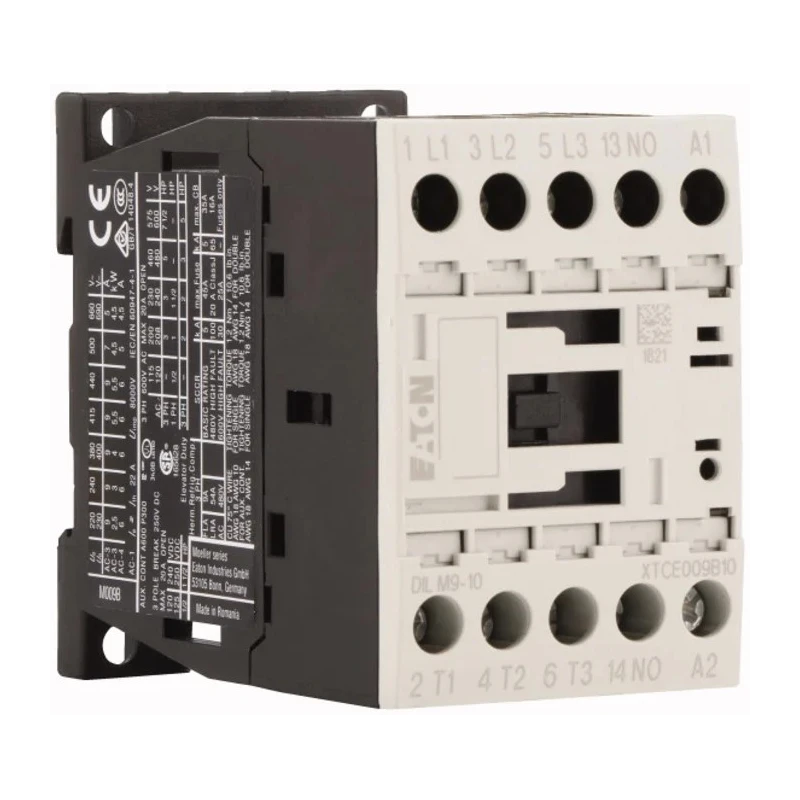

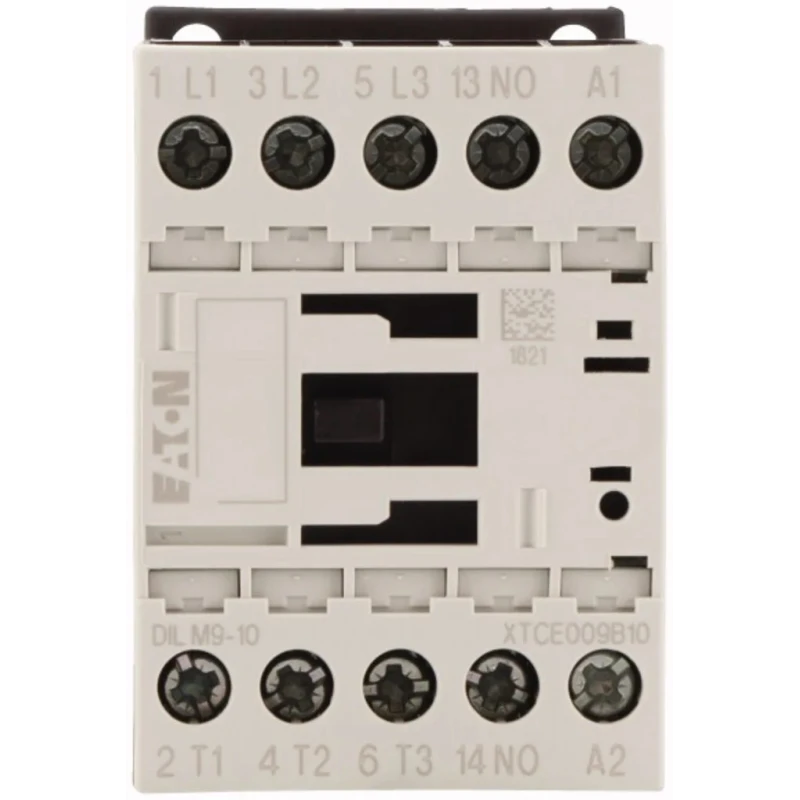

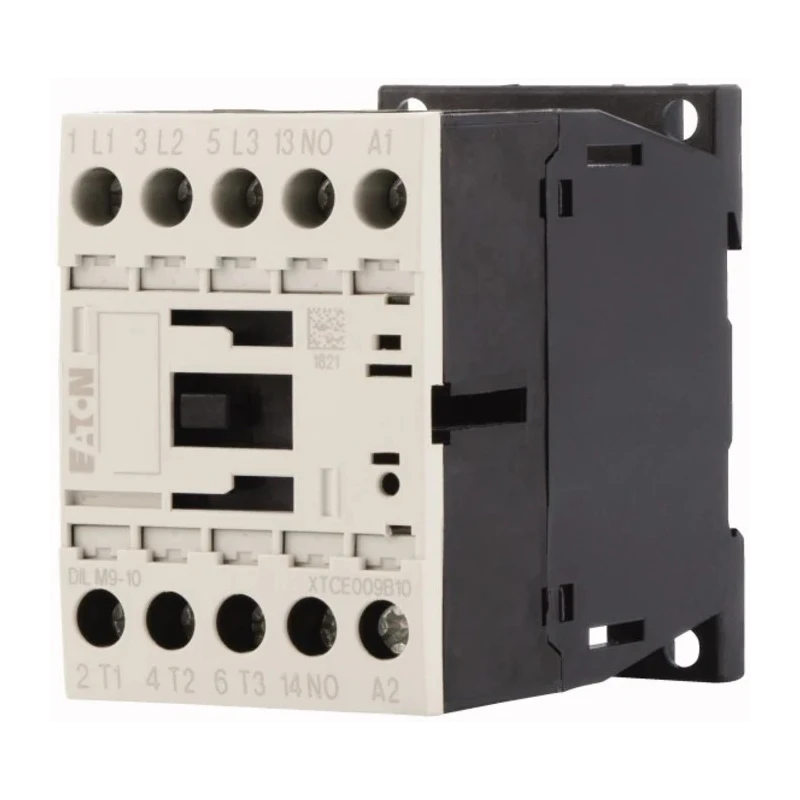

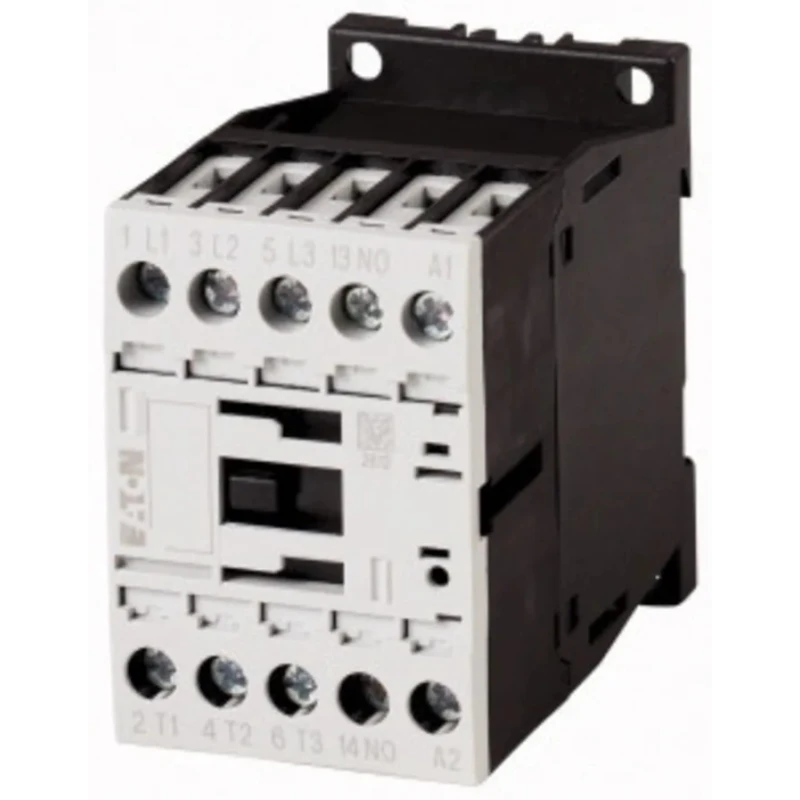

Eaton DILM Contactor, 230V AC Coil, 3-Pole, 9A, 4 kW Power Rating, 3 NO Contacts, 400V AC 276698 DILM9-10(230V50/60HZ)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 68mm |
| Model | 276698 DILM9-10(230V50/60HZ) |
| Depth | 117mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | DILM |
| Power Rating | 4kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | UL, IEC, CSA |
| Contact Voltage | 400V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO/0 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
| Cooper Bussmann 9A T Fibre Cartridge Fuse, 10 x 38mmBrand | Cooper Bussmann |
Key Features
- Rated for 400V AC contact voltage with a power capacity of 4 kW.
- Compact dimensions measuring 68 mm (length) x 45 mm (width) x 117 mm (depth) for ease of installation.
- Equipped with 3 normally open (NO) contacts plus 1 auxiliary contact configured as 1 NO/0 NC.
- Features screw clamp terminals ensuring secure and straightforward wiring.
- Designed for robust industrial use with mechanical lifespan up to 6 million operations.
- IP20 rated enclosure offering finger protection and resistance to ingress of objects larger than 12 mm.
- Resistant to electromagnetic interference, suitable for demanding industrial environments.
- Operating temperature range from -25°C to 60°C for versatile applications.
Product Description
The Eaton 276698 DILM9-10(230V50/60HZ) is a high-quality contactor designed for industrial motor control with a 230V AC coil voltage and 3 poles capable of handling 9 amperes of current.
It supports a contact voltage rating of 400V AC and a power rating of 4 kW making it suitable for switching large current loads in industrial equipment. Manufactured with a durable design, it features screw clamp terminals which facilitate secure and simple wiring connections, minimizing maintenance requirements.
This contactor includes 3 normally open (NO) main contacts and 1 auxiliary contact with a 1 NO/0 NC configuration to support various control applications. Compact in size with dimensions of 68 mm length, 45 mm width, and 117 mm depth, it is engineered for ease of installation on standard DIN rails.
Its robust construction resists mechanical shock and electromagnetic interference, ensuring reliable operation in demanding environments such as manufacturing plants, HVAC systems, lighting control, and motor starting circuits.
Rated for 230V AC coil voltage and 9A operational current. IP20 enclosure grade provides finger protection and safety compliance. Operating temperature range between -25°C and 60°C. Compliant with international standards UL, IEC, and CSA.
Durable for up to 6 million mechanical operations. Mounts easily on DIN rail systems. Designed specifically for motor control and resistive load switching. This Eaton Contactor is ideal for industrial, commercial, and HVAC automation systems requiring reliable, efficient motor and circuit control.
Discover more high-quality industrial electrical components by exploring the Automation & Control Gear category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This contactor has a power rating of 4 kW, making it suitable for switching large current loads in industrial applications.
The coil voltage for this model is 230V AC, which is necessary for its operation in motor control applications.
It can handle a maximum contact voltage of 400V AC, allowing it to be used in various industrial settings.
This model features 3 poles, which are designed for effective motor control and resistive load switching.
The operational current rating for this contactor is 9A, making it suitable for various industrial applications.
It has compact dimensions of 68 mm in length, 45 mm in width, and 117 mm in depth, facilitating easy installation.
This contactor is equipped with screw clamp terminals, ensuring secure and straightforward wiring connections.
The operating temperature range is from -25°C to 60°C, allowing it to function effectively in various environments.
It is designed for mounting on DIN rails, which is a standard practice for industrial electrical components.
This model includes 1 auxiliary contact configured as 1 NO/0 NC, providing additional control capabilities.
It complies with international standards including UL, IEC, and CSA, ensuring its reliability and safety in industrial applications.
The mechanical lifespan of this contactor is rated for up to 6 million operations, indicating its durability in industrial use.
