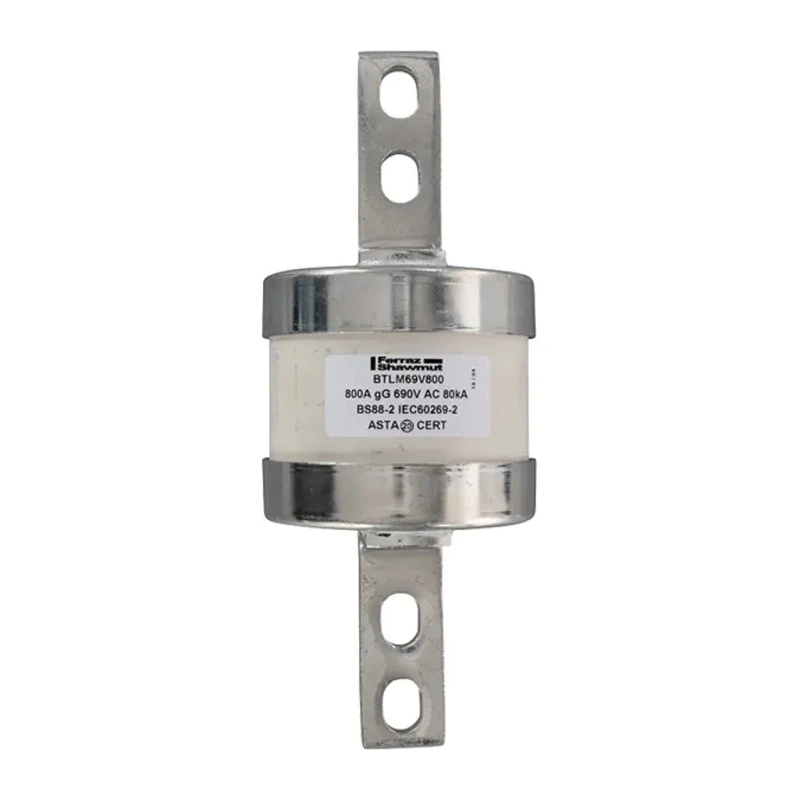

Mersen 800A Bolted Tag Fuse C3 690V AC Central Bolted Tag Fuse-links gG 690VAC G1019274 / BTLM69V800
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 690V ac |
| Diameter | 82.4mm |
| Brand | Mersen |
| Height | 86mm |
| Length | 86mm |
| Model | G1019274 / BTLM69V800 |
| Width | 82.4mm |
| Overall Length | 212mm |
| Current Rating | 800A |
| Series | Central Bolted Tag Fuse-links gG 690VAC |
| Standards/Approvals | EN 60269-2, REACH, CE, RoHS |
| Fuse Size | C3 |
| Fixing Centres | 133 mm |
| Tag Width | 26mm |
| Tag Orientation | Centred |
Key Features
- The fuse provides excellent current limitation for overloads across a wide range of applications.
- Rated for 800A current and 690V AC voltage for robust electrical protection.
- Fuse Size is C3 with a fixing centre measurement of 133 mm.
- Tag width is 26 mm with a fuse speed classification of F for fast operation.
- Fuse orientation is centred with an overall length of 212 mm and length of 86 mm.
- The fuse diameter and width are both 82.4 mm, and the height is 86 mm.
- This product complies with EN 60269-2 standards and meets REACH, CE, and RoHS directives.
- High rupture capacity is not provided with this model.
Product Description
Mersen G1019274 / BTLM69V800 Bolted Tag Fuse C3 800A 690V AC is a central bolted tag fuse-links gG type designed for general purpose use protection and motor protection applications.
This fuse provides excellent current limitation for overloads, ensuring reliable electrical safety in industrial, commercial, and manufacturing environments. Constructed to meet rigorous standards such as EN 60269-2 and compliant with REACH, CE, and RoHS regulations, it is a dependable component for electrical circuit protection.
The fuse is sized at C3 with fixing centres of 133 mm, enabling installation in various fuseholders or direct bolting onto busbars or fuse interruptors disconnectors. Key dimensional parameters include a tagged width of 26 mm, length 86 mm, overall length 212 mm, height 86 mm, diameter 82.4 mm, and width 82.4 mm.
This fuse is suitable for applications requiring a fast fuse speed (class F) and is designed without high rupture capacity. The fuse delivers robust 800A current rating and supports voltages up to 690V AC. Its central bolted tag configuration enables secure and stable connections.
The product is manufactured in India and is supplied new, ensuring quality and reliability. This product is widely applicable in electrical automation systems, industrial electrical circuits, and motor protection schemes.
Choose this Mersen bolted tag fuse for dependable, standards-compliant electrical protection and maintenance purposes. Explore more items in the Tag Fuses category on EnvMart for compatible and complementary products to complete your electrical safety requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum voltage of 690V AC, ensuring compatibility with various electrical systems.
The dimensions include a length of 86 mm, overall length of 212 mm, height of 86 mm, and a diameter of 82.4 mm.
This fuse is sized at C3 with a fixing centre measurement of 133 mm, allowing for easy installation.
It has a fuse speed classification of F, indicating fast operation for effective overload protection.
It complies with EN 60269-2 standards and meets REACH, CE, and RoHS directives for safety and environmental regulations.
The tag width is 26 mm, facilitating secure connections in various installations.
This bolted tag fuse is manufactured in India, ensuring compliance with local manufacturing standards.
It is suitable for general purpose protection and motor protection applications in industrial and commercial environments.
The tag orientation is centred, allowing for stable and secure connections during installation.
This model is designed without high rupture capacity, which should be considered for specific applications.
It uses central bolted tag fuse-links of type gG, suitable for various electrical circuit protection needs.
