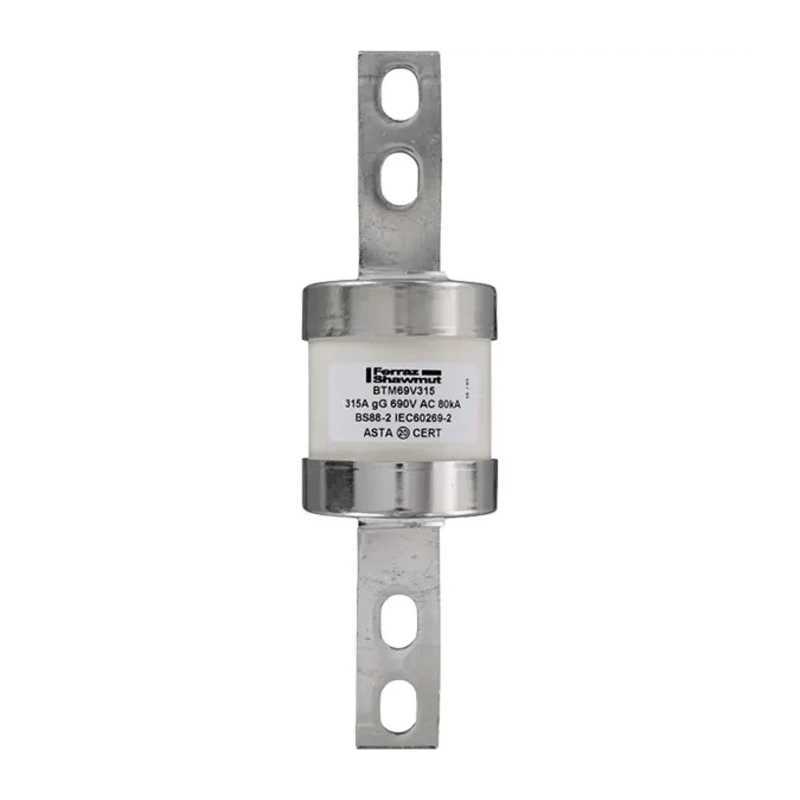

Mersen 315A Bolted Tag Fuse C1 690V AC Central Bolted Tag Fuse-links gM Series R1006633 / BTM69V315

Free Delivery in India | Lowest Global Shipping Charges

Mersen 315A Bolted Tag Fuse C1 690V AC Central Bolted Tag Fuse-links gM Series R1006633 / BTM69V315

Name: Mersen 315A Bolted Tag Fuse C1 690V AC Central Bolted Tag Fuse-links gM Series R1006633 / BTM69V315
Brand: Mersen
SKU: 244563
Price: 20.22 USD
Availability: InStock



Category Tag Fuse Brand Mersen Condition New

Specifications

Country of Origin	India
Voltage	690V ac
Diameter	59.1mm
Brand	Mersen
Height	75mm
Length	75mm
Model	R1006633 / BTM69V315
Width	59.1mm
Overall Length	212mm
Current Rating	315A
Series	Central Bolted Tag Fuse-links gM 690VAC/460VDC
Standards/Approvals	EN 60269-2, CE, REACH, RoHS
Fuse Size	C1
Fixing Centres	133 mm
Tag Width	26mm
Tag Orientation	Centred
Application Category	gM

Key Features

Provides reliable motor protection and general-purpose protection.
Fuse size C1 with excellent current limitation for overloads.
Constructed with a 133 mm fixing centre for secure mounting.
Operates with high fuse speed (F) and a centred tag orientation.
Conforms to EN 60269-2, CE, REACH, and RoHS standards.
Designed to be fixed by bolting directly onto busbars or fuseholders.
Manufactured in India ensuring high quality and adherence to standards.

Product Description

Mersen R1006633 / BTM69V315 Bolted Tag Fuse is a high-performance fuse designed for electrical applications requiring a current rating of 315A and operating at 690V AC. This bolted tag fuse belongs to the Central Bolted Tag Fuse-links gM series, optimized for motor protection and general purpose protection (gG and gM types).

The fuse size is C1, with a fixing centre of 133 mm which allows it to be securely mounted by bolting onto busbars or into fuseholders. It offers high fuse speed (F) characteristics and a centred tag orientation to ensure optimal electrical contact and safety.

Compliant with international standards including EN 60269-2, CE, REACH, and RoHS, this fuse provides excellent current limitation across a broad range of industrial, commercial, and electrical applications. It is designed to prevent fault currents while allowing normal current flow, safeguarding sensitive equipment and maintaining system integrity.

The physical dimensions are carefully engineered, with an overall length of 212 mm, length of 75 mm, height of 75 mm, and a diameter of 59.1 mm, ensuring compatibility with a wide variety of fuse holders and disconnectors. The tag width measures 26 mm. This ensures versatility and ease of installation in electrical distribution and protection systems.

Manufactured in India, this bolted Tag Fuse supports demanding industrial scenarios including manufacturing plants, electrical distribution centers, motor controls, and other commercial uses where reliable current interruption and safety compliance are critical.

Reliable motor and general-purpose protection fuse. Excellent current limitation for overload conditions. Standard-compliant with EN 60269-2, CE, REACH, and RoHS certifications. Secure bolted fixing with 133 mm centres and centred tag orientation.

Compact design suitable for various fuse holders and busbars. Constructed for high fuse speed to protect electrical motors. Ideal for industrial, commercial, and electrical system protection. Explore more Mersen products and electrical protection solutions in the Circuit Breakers & Fuse category at EnvMart.
