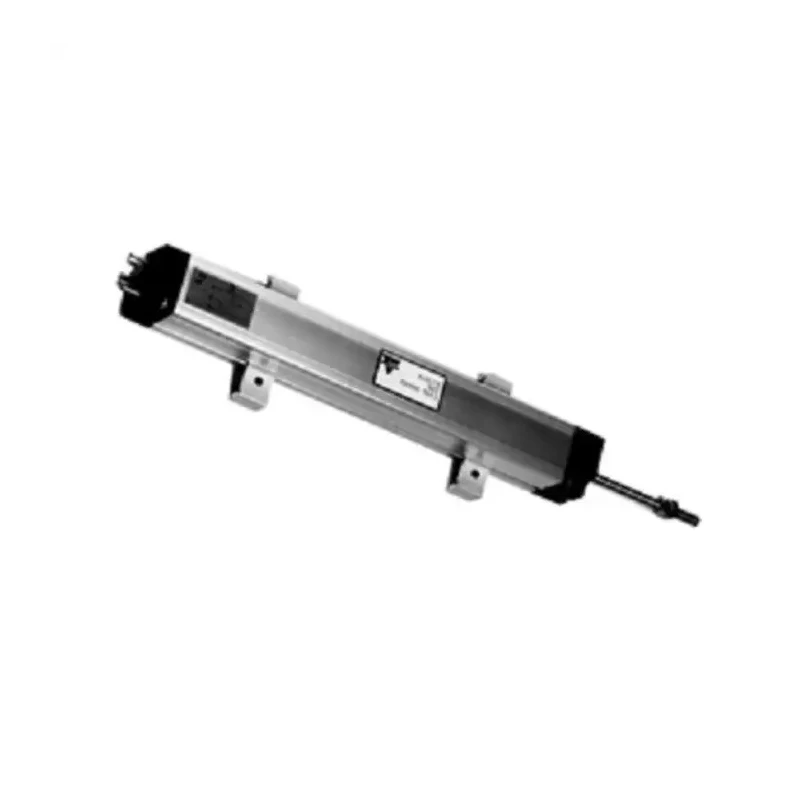

Vishay REC 115L Series Linear Transducer High Accuracy ±1% up to ±0.025% Aluminum Housing IP67 RE115L9E502W6017

Vishay RE115L9E502W6017 is a high-precision linear transducer from the REC 115L series designed for industrial motion control sensor applications. It features a measurement range extending from 25 mm up to 1000 mm, with an exceptional accuracy of ±1% down to ±0.025%. The device utilizes conductive plastic technology with plastic track technology to deliver excellent repeatability and near-infinite resolution, essential for precise position feedback in automation systems.

The aluminium housing ensures mechanical protection and durability while maintaining a compact form with overall dimensions of 84 mm width, 34.75 mm height, and 63 mm depth. Rated to IP67, the transducer is protected against dust ingress and water jets, making it suitable for harsh industrial environments. It sustains operation at temperatures up to 125°C, providing consistent performance even under high thermal stress.

This model employs a voltage division mode of operation which makes it insensitive to temperature variations, enhancing measurement stability. It is ideal for applications such as slide movement sensors for cylinder servo control, ensuring accurate position monitoring in manufacturing or automation equipment.

The transducer includes DIN 43650 hydraulic connector outputs, supplied with moveable brackets for secure mounting. The product line covers options with ball joint connections for diverse referencing requirements. For connection details, it is important to consult the data sheet and select an appropriate DIN 43650 connector.

Measurement range from 25 mm to 1000 mm with high accuracy. Accuracy tolerance between ±1% down to ±0.025% for precision use. Aluminium housing provides durability and corrosion resistance. Rated IP67, suitable for harsh and industrial environments.

Maximum operating temperature of 125°C ensures reliability in demanding conditions. Equipped with slide movement sensors for cylinder servo control applications. Non-sensitive to temperature variations due to voltage division operation mode.

Includes DIN 43650 hydraulic connector outputs mounted via supplied moveable brackets. Designed for long service life with consistent measuring accuracy.

This linear transducer is widely used in industrial automation, control systems, laboratory instrumentation, and manufacturing processes requiring precise linear position sensing. Its robust design supports durable performance in demanding environments typical of HVAC, water treatment, and mechanical engineering systems.
