Hongfa Europe GMBH PCB Power Relay, 24V DC Coil, 6A Switching Current, SPDT HF41F/24-ZS

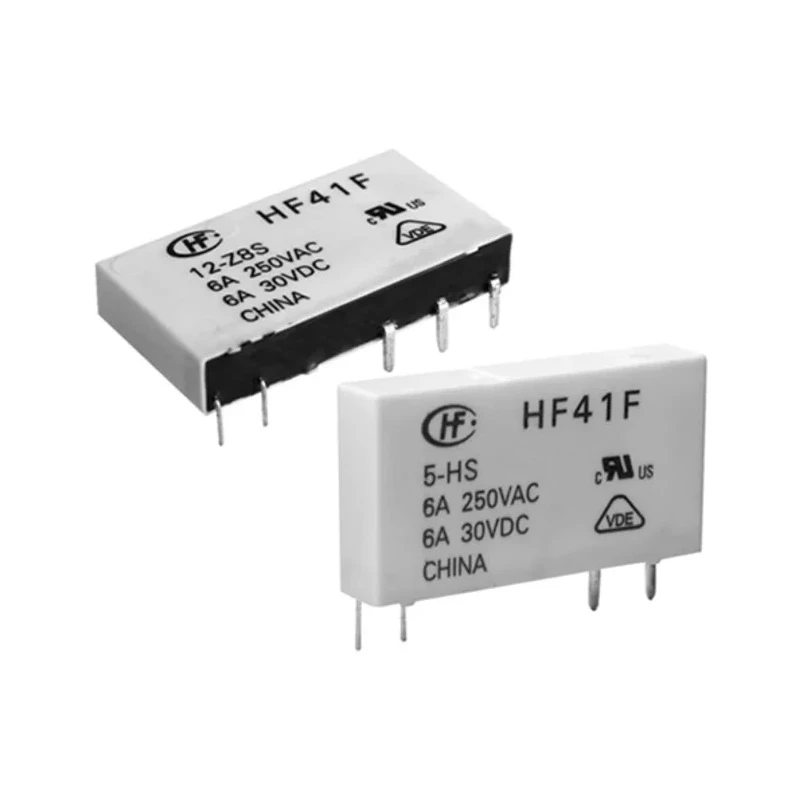

Hongfa Europe GMBH HF41F/24-ZS PCB Power Relay is a single-pole double-throw (SPDT) non-latching relay engineered for PCB mounting with a 24V DC coil voltage. It supports switching currents up to 6A for both AC and DC applications, making it a versatile component suitable for electrical, automation, and control circuits.

This subminiature power relay uses silver alloy contacts to ensure excellent electrical endurance and a low contact resistance of 100mΩ. The relay boasts a compact form factor measuring 28mm in length, 5mm in width, and 15mm in height, saving valuable PCB space.

Engineered to operate reliably under extreme environmental conditions, it functions over a temperature range from -40°C to 85°C. The coil resistance is specified at 3.4kΩ with a low coil power consumption of 170mW, contributing to efficient power usage in complex electronic assemblies.

The relay offers a high isolation voltage rating of 4KV between the coil and contacts and high mechanical endurance supporting up to 10 million switching cycles. Its design also provides resistance to vibration and abrasion, making it suitable for industrial machinery, automotive electronics, household appliances, and telecommunication equipment.

Being RoHS compliant, the HF41F/24-ZS model meets environmental and safety regulations, ensuring it is an eco-friendly choice for modern electrical applications. This relay features a 24V DC coil voltage for actuation. Switching current capacity is rated up to 6 amperes.

SPDT contact configuration allows single pole double throw switching. Compact dimensions with a length of 28mm, width 5mm, and height 15mm. Silver alloy contact material provides high electrical endurance and low contact resistance of 100mΩ.

Operating temperature range from -40°C to 85°C suitable for various industrial environments. Coil resistance of 3.4kΩ with coil power consumption of 170mW for efficient energy use. Isolation voltage between coil and contacts is rated at 4KV for safe operation.

High mechanical endurance with expected life of up to 10 million cycles. Compliance with RoHS environmental standards ensures eco-friendly product design.

This product is ideal for use in industrial equipment control systems, automotive electronics, telecommunications, and household appliance controls. It offers reliable switching performance and excellent durability in various demanding applications.
