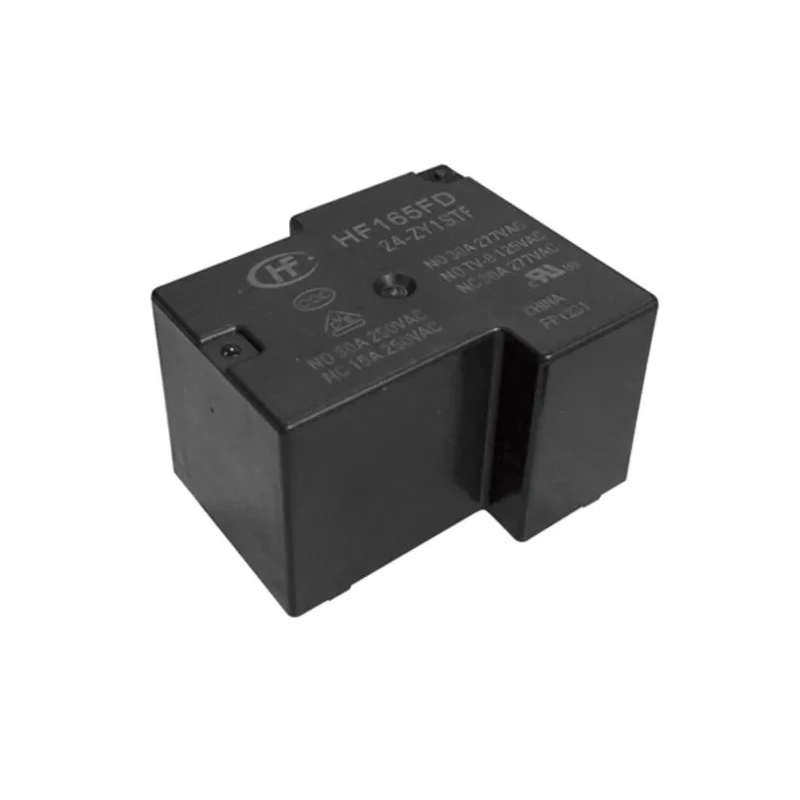

Hongfa Europe GMBH PCB Power Relay 12V dc Coil 30A Switching Current SPST HF165FD/12-HY1TF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 20.4mm |
| Length | 32.2mm |
| Model | HF165FD/12-HY1TF |
| Width | 27.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF165FD |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 30A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 155Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 900mW |
Key Features
- The relay features a SPST contact configuration suitable for various switching requirements.
- Designed for PCB mounting with PCB pin terminals ensuring stable electrical connections.
- Operates efficiently within a temperature range of -40°C to 85°C.
- Supports switching AC voltage up to 277V and switching power rating of 8.3kVA.
- Employs silver alloy contact material for high electrical endurance and low contact resistance of 100mΩ.
- Coil resistance is specified at 155Ω with coil power consumption of 900mW.
- Compact dimensions with length 32.2mm, width 27.5mm, and height 20.4mm.
- High surge withstand voltage and excellent mechanical endurance up to 10 million cycles.
Product Description
Hongfa Europe GMBH HF165FD/12-HY1TF PCB Power Relay is a high-performance SPST relay designed for printed circuit board mounting, operating at a coil voltage of 12V dc and capable of switching currents up to 30A. It offers reliable switching with silver alloy contacts that ensure a low contact resistance of 100mΩ and high electrical endurance for demanding industrial and commercial uses.
This relay operates effectively within a wide temperature range from -40°C to 85°C and supports a maximum switching AC voltage of 277V AC, handling a switching power of 8.3kVA. The coil resistance is 155Ω, consuming 900mW of power, which results in low energy consumption.
Its compact dimensions of 32.2mm length, 27.5mm width, and 20.4mm height allow for efficient board space utilization. The relay incorporates a high surge withstand voltage of up to 6KV and mechanical endurance rated for 10 million cycles, making it durable against vibration, shock, and abrasion.
This non-latching relay is suitable for a broad range of control applications across industrial machinery, automotive industry, household appliances, and telecommunications. Its environmentally friendly design complies with RoHS standards.
The relay features SPST contact configuration for single-pole switching applications. PCB mount type with PCB pin terminals ensures secure electrical connections. Silver alloy contacts provide superior electrical conductivity and durability.
Wide operating temperature range supports harsh environmental conditions. High mechanical and electrical endurance ensures long service life. Energy efficient coil power rating reduces overall power consumption. Surge withstand capability protects the relay from transient voltage spikes.
Compact design optimizes PCB layout and space savings. RoHS compliant product supports environmentally responsible manufacturing.
This power relay is an essential component for reliable and efficient switching in electrical automation, industrial control systems, automotive controls, communication devices, and household appliances. Browse the Electronics & Electricals Relays & Contactors category at EnvMart for more Power Relay options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can switch currents up to 30A, making it suitable for various applications requiring reliable power switching.
The coil voltage for this relay is 12V DC, which is necessary for its operation.
It operates efficiently within a temperature range of -40°C to 85°C, allowing it to function in harsh environments.
The relay supports a maximum switching AC voltage of 277V, suitable for various electrical applications.
This relay features a SPST (Single Pole Single Throw) contact configuration, ideal for simple on/off switching applications.
The contact resistance is specified at 100mΩ, ensuring efficient electrical conductivity.
The relay has compact dimensions of 32.2mm in length, 27.5mm in width, and 20.4mm in height, optimizing PCB layout.
It uses PCB pin terminals, ensuring stable and secure electrical connections when mounted on a printed circuit board.
The coil resistance is specified at 155Ω, which contributes to its efficient power consumption.
The coil power consumption is 900mW, indicating low energy usage during operation.
This model is rated for excellent mechanical endurance of up to 10 million cycles, ensuring long-term reliability.
Yes, it complies with RoHS standards, supporting environmentally responsible manufacturing practices.
