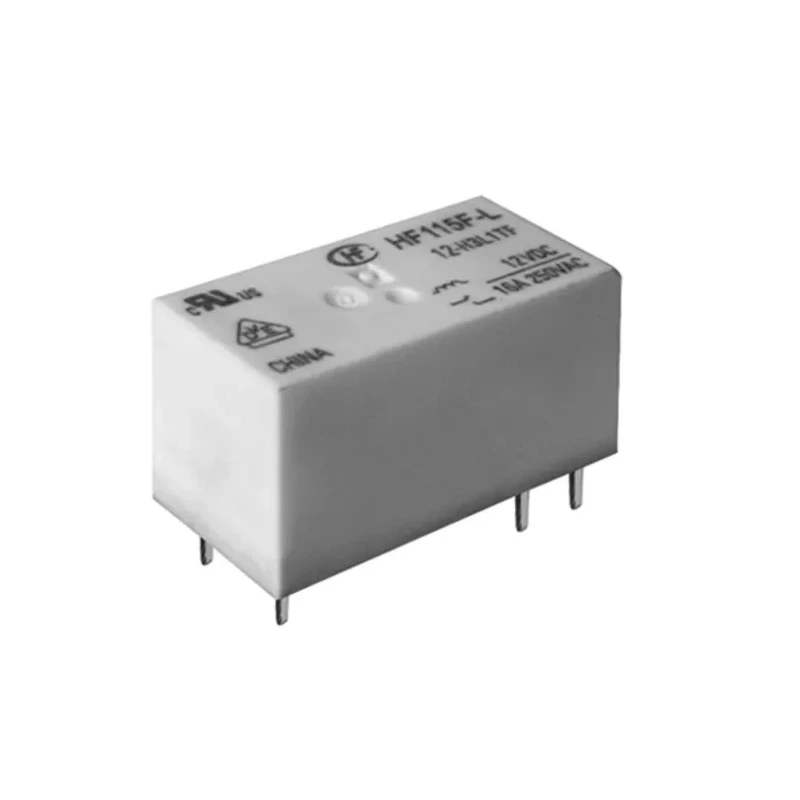

Hongfa Europe GMBH PCB Power Relay 12V dc Coil 20A Silver Alloy Contact HF115F-L/12-H3L1TF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 15.7mm |
| Length | 29mm |
| Model | HF115F-L/12-H3L1TF |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF115F-L |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 400mW |
Key Features
- Features a SPST contact configuration with silver alloy contacts.
- Designed for PCB mounting with compact dimensions 29mm x 15.7mm x 12.7mm.
- Operates reliably between temperatures -40°C and 85°C.
- Suitable for switching AC voltages up to 440V and DC voltages up to 300V.
- Coil power consumption is 400mW with 360Ω coil resistance.
- Contact resistance is low at 100mΩ ensuring efficient conduction.
- Has a high isolation voltage of 5KVAC between coil and contacts.
- Durability rated up to 2 million cycles for long service life.
Product Description
Hongfa Europe GMBH HF115F-L/12-H3L1TF PCB Power Relay features a 12V DC coil and is capable of switching currents up to 20A for effective power control.
This relay employs a Single Pole Single Throw (SPST) contact configuration with silver alloy contacts, ensuring stable and reliable switching performance in compact PCB mount form factor measuring 29mm in length, 15.7mm in height, and 12.7mm in width.
Operating temperature range spans from -40°C to a maximum of 85°C, making it suitable for diverse industrial environments including automotive engines, household appliances, industrial machinery, medical instruments, and telecommunication equipment.
The relay supports switching AC voltages up to 440V and DC voltages up to 300V with a coil power rating of 400mW and coil resistance of 360Ω, promoting energy-efficient operation.
Contact resistance is minimal at 100mΩ, providing optimal conduction with reduced losses, and the unit boasts an isolation voltage of 5KVAC between coil and contacts, enhancing operational safety.
Designed for durability, the relay is rated for up to 2 million mechanical cycles, ensuring extended service life and reliability. It complies with RoHS environmental directives, underscoring its eco-friendly manufacturing.
This PCB power relay is essential for industrial applications where compact size and robust electrical performance are required, including control systems in automotive, industrial machinery, and telecommunication sectors.
Features a SPST contact configuration with silver alloy contacts. Designed for PCB mounting with compact dimensions 29mm x 15.7mm x 12.7mm. Operates reliably between temperatures -40°C and 85°C. Suitable for switching AC voltages up to 440V and DC voltages up to 300V.
Coil power consumption is 400mW with 360Ω coil resistance. Contact resistance is low at 100mΩ ensuring efficient conduction. Has a high isolation voltage of 5KVAC between coil and contacts. Durability rated up to 2 million cycles for long service life.
Compliance with RoHS environmental standards. Explore more electronic components and Power Relays at EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay can switch currents up to 20A, making it suitable for various power control applications.
The dimensions of this model are 29mm in length, 15.7mm in height, and 12.7mm in width, designed for compact PCB mounting.
The relay operates with a coil voltage of 12V DC and has a power consumption of 400mW.
It features a Single Pole Single Throw (SPST) contact configuration, which is suitable for various switching applications.
This relay operates reliably between temperatures of -40°C and 85°C, making it suitable for diverse industrial environments.
It can switch AC voltages up to 440V and DC voltages up to 300V, providing flexibility in various applications.
The contact resistance is low at 100mΩ, ensuring efficient conduction with minimal losses.
The isolation voltage between the coil and contacts is 5KVAC, enhancing operational safety.
This relay is rated for up to 2 million mechanical cycles, ensuring a long service life.
The contacts are made of silver alloy, which contributes to stable and reliable switching performance.
It complies with RoHS environmental directives, underscoring its eco-friendly manufacturing practices.
This model uses PCB terminals, suitable for direct mounting on printed circuit boards.
