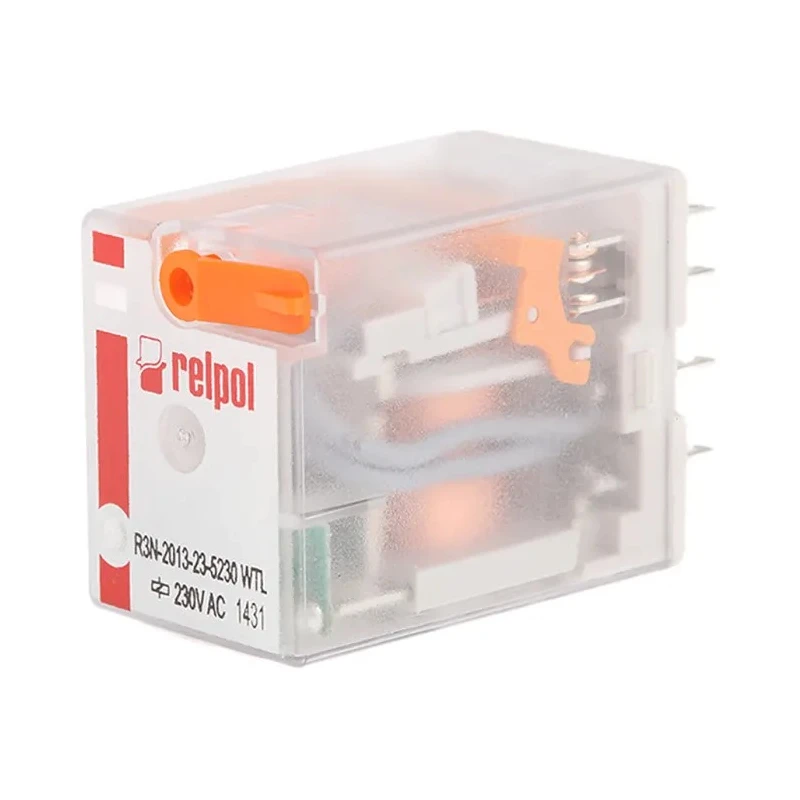

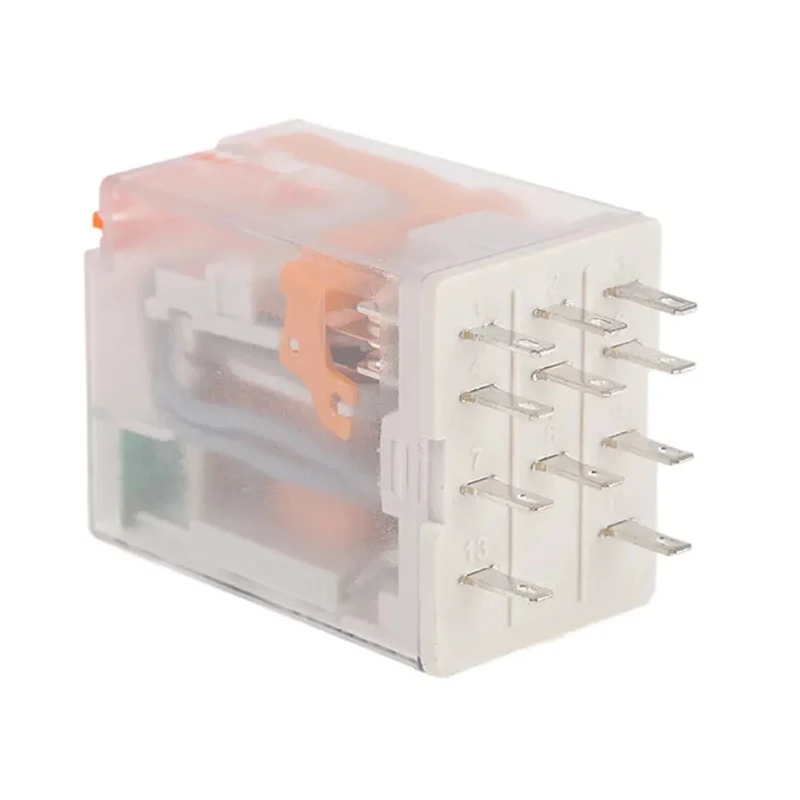

Relpol Surface Power Relay 230V AC Coil 10A Switching Current 3PDT Plug-In Terminal R3N-2013-23-5230-WTL
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | Relpol |
| Height | 35.6mm |
| Length | 27.5mm |
| Model | R3N-2013-23-5230-WTL |
| Width | 21.2mm |
| Mount Type | Surface |
| Contact Material | Silver Alloy |
| Series | R3N |
| Maximum Operating Temperature | +55°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Standards/Approvals | UR, UL, CSA |
| Coil Resistance | 16.1kΩ |
| Coil Voltage | 230V ac |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 440V |
| Coil Power | 1.6W |
| Switching Power | 1.5W |
Key Features
- Designed for surface mounting with plug-in terminals for easy installation.
- Miniature dimensions measuring 35.6mm height, 27.5mm length, and 21.2mm width.
- Operates reliably between -40°C to +55°C ambient temperatures.
- Equipped with silver alloy contacts ensuring durable electrical conductivity.
- Coil resistance rated at 16.1 kΩ with coil power consumption of 1.6W.
- Supports switching of up to 1.5W power with AC voltage rating up to 440V and DC voltage up to 24V.
- Compliance with UR, UL, and CSA standards for safety and quality assurance.
Product Description
Relpol R3N-2013-23-5230-WTL Surface Power Relay is a miniature industrial relay designed for general applications in electrical, industrial automation, and control systems. It features a robust 230V AC coil and supports a switching current of 10A with a 3PDT contact configuration, allowing versatile switching functions.
The relay is engineered for surface mounting with plug-in terminal types to facilitate simple and secure installation. Its compact dimensions of 35.6mm height, 27.5mm length, and 21.2mm width make it suitable for space-constrained control panels.
Designed to operate reliably in harsh industrial environments, it supports temperatures ranging from -40°C to +55°C. The contacts are made of silver alloy, providing excellent conductivity and long service life.
With a coil resistance of 16.1 kΩ and coil power of 1.6W, this relay ensures efficient operation. It can switch both AC and DC loads, handling up to 1.5W of power, with switching AC voltage rated at 440V and DC switching voltage of 24V.
The relay series R3N offers features like mechanical indicator (W) and lockable front test button (T) for easy status monitoring and testing without disassembly. It complies with internationally recognized safety standards including UR, UL, and CSA.
This relay is ideal for industrial automation, manufacturing equipment, HVAC controls, and other commercial electrical switching applications. Its high reliability and certified safety make it suitable for demanding environments requiring precise control.
Designed for surface mounting with plug-in terminals for easy installation. Miniature dimensions measuring 35.6mm height, 27.5mm length, and 21.2mm width. Operates reliably between -40°C to +55°C ambient temperatures. Equipped with silver alloy contacts ensuring durable electrical conductivity.
Coil resistance rated at 16.1 kΩ with coil power consumption of 1.6W. Supports switching of up to 1.5W power with AC voltage rating up to 440V and DC voltage up to 24V. Compliance with UR, UL, and CSA standards for safety and quality assurance.
Explore other Power Relays from Relpol for varied industrial and automation needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage rating of 230V AC.
It supports a maximum switching current of 10A.
This relay has dimensions of 35.6mm in height, 27.5mm in length, and 21.2mm in width.
The relay features a 3PDT (three poles, double throw) contact configuration.
It operates reliably between -40°C and +55°C ambient temperatures.
The coil resistance is rated at 16.1 kΩ.
This model is equipped with plug-in terminals for easy installation.
It can switch AC voltage rated up to 440V.
The contacts are made of silver alloy, ensuring good electrical conductivity.
It complies with UR, UL, and CSA standards for safety and quality assurance.
The coil power consumption is rated at 1.6W.
This relay is suitable for industrial automation, manufacturing equipment, HVAC controls, and other commercial electrical switching applications.
