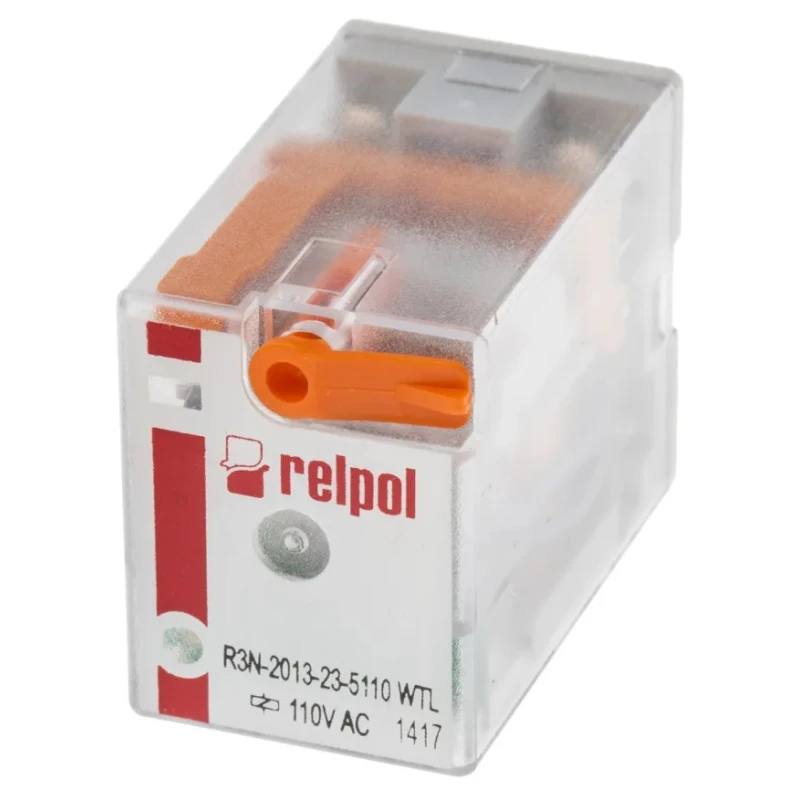

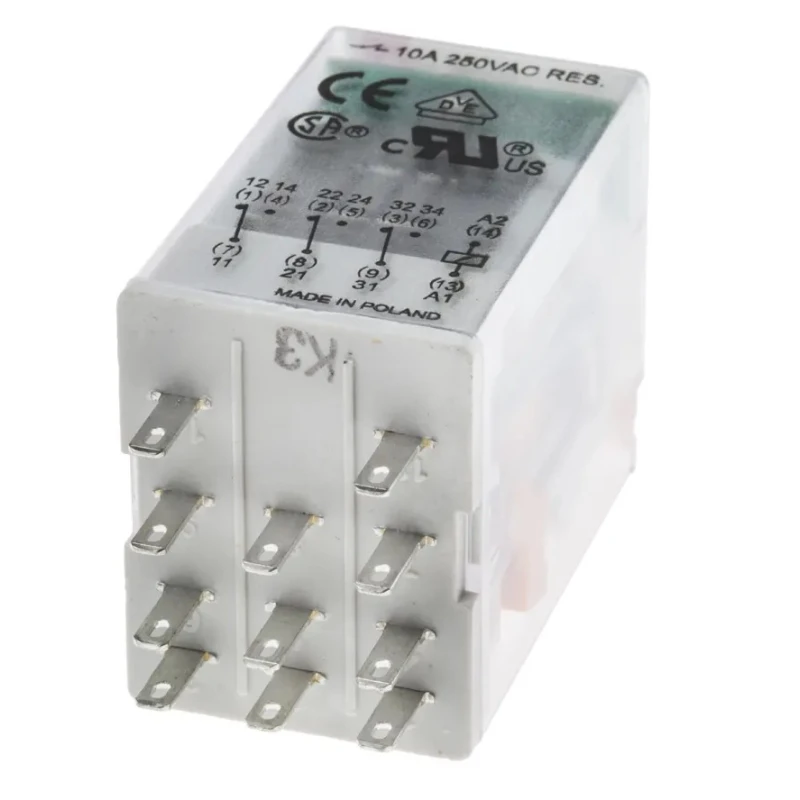

Relpol Power Relay Plug-In Terminal 110V AC Coil 10A Switching Current 3PDT Silver Alloy Contacts R3N-2013-23-5110-WTL
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | Relpol |
| Height | 35mm |
| Length | 35mm |
| Model | R3N-2013-23-5110-WTL |
| Width | 54.4mm |
| Contact Material | Silver Alloy |
| Series | R3N |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Standards/Approvals | UR, UL, CSA |
| Coil Resistance | 3.5kΩ |
| Coil Voltage | 110V ac |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 440V |
| Coil Power | 1.6W |
| Switching Power | 1.5W |
Key Features
- Designed for plug-in mounting with a 3PDT contact arrangement.
- Operates at coil voltage of 110V AC with coil resistance of 3.5kΩ.
- Compact miniature industrial design with dimensions 35mm length, 35mm height, and 54.4mm width.
- Contacts made of silver alloy ensuring reliable conductivity and durability.
- Operational temperature range from -40°C to 55°C for various industrial environments.
- Switching power rating of 1.5W, with max switching voltage 440V AC and 24V DC.
- Equipped with mechanical indicator and lockable front test button (WT features).
- Compliant with UR, UL, and CSA standards for safety and reliability.
Product Description
Relpol R3N-2013-23-5110-WTL is a high-quality power relay designed for use in industrial and automation applications. It features a plug-in terminal type suitable for easy installation with a coil voltage of 110V AC and a switching current capacity of 10A. The relay has a 3PDT (triple pole double throw) contact configuration allowing multiple circuit switching in control systems.
Its miniature industrial dimensions - 35mm length, 35mm height, and 54.4mm width - make it ideal for compact control panels. The silver alloy contact material ensures excellent electrical conductivity and long-lasting performance. The coil resistance of 3.5kΩ and coil power consumption of 1.6W optimize energy efficiency.
Operable in harsh environmental conditions, it supports a minimum operating temperature of -40°C and maximum of 55°C, making it suitable for diverse industrial settings including manufacturing, electrical distribution, HVAC control, and automation systems.
The relay supports switching voltages up to 440V AC and 24V DC, with a switching power rating of 1.5W. Standard WT features include mechanical indicator and lockable front test button for safe and convenient manual testing without disturbing circuits.
Certified under UR, UL, and CSA standards, the relay complies with international safety norms. It is manufactured in Poland and complies with RoHS directives ensuring environmentally safe cadmium-free contacts. Accessories for plug-in sockets include retainer clips and connection strips to facilitate installation.
Designed for plug-in mounting with a 3PDT contact arrangement. Operates with a coil voltage of 110V AC and coil resistance of 3.5kΩ. Compact miniature industrial design with 35mm length, 35mm height, and 54.4mm width. Durable silver alloy contacts providing reliable connectivity.
Wide operating temperature range from -40°C to 55°C. Switching power of 1.5W; max switching voltages 440V AC and 24V DC. Features mechanical indicator and lockable front test button for enhanced operation. Certified by UR, UL, and CSA for quality assurance.
Manufactured in Poland and RoHS compliant with cadmium-free contacts.
This power relay is ideal for industrial, laboratory, manufacturing automation, electrical switching, and HVAC applications requiring robust and reliable control components. Browse more high-quality Power Relays and industrial automation components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 110V AC.
This model has a switching current capacity of 10A.
The relay has dimensions of 35mm in length, 35mm in height, and 54.4mm in width.
It features a 3PDT (triple pole double throw) contact configuration.
The maximum switching voltage is 440V AC and 24V DC.
The operational temperature range is from -40°C to 55°C.
The contacts are made of silver alloy, ensuring reliable conductivity.
It is certified under UR, UL, and CSA standards.
The coil resistance is 3.5kΩ.
This model includes a mechanical indicator and a lockable front test button for safe manual testing.
It is manufactured in Poland and complies with RoHS directives.
The coil power consumption is 1.6W.
