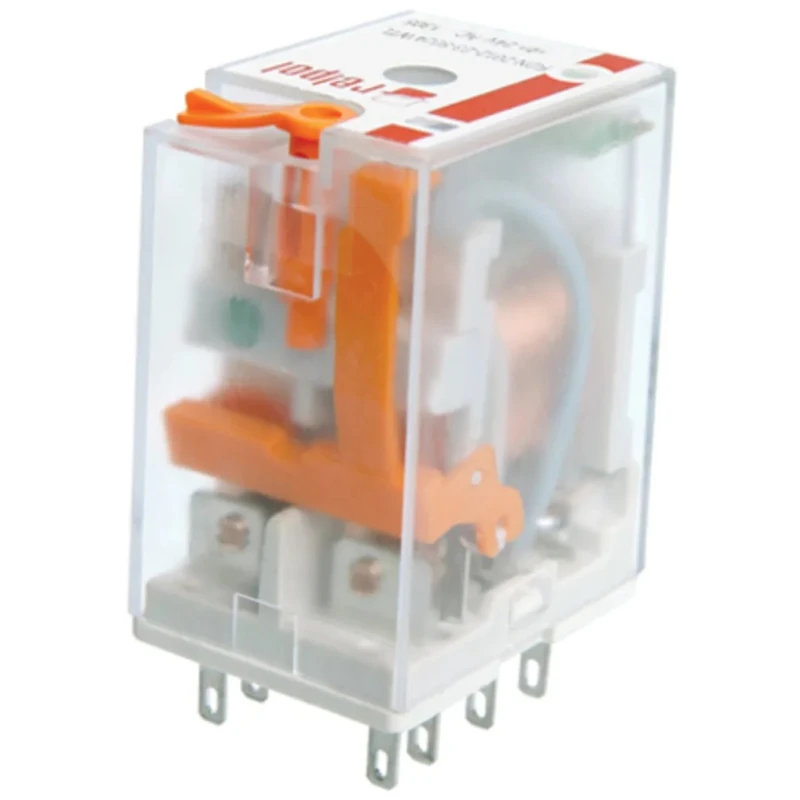

Relpol Surface Power Relay 110V Coil Voltage 12A Switching Current DPDT Model R2N-2012-23-5110-WTL

Relpol R2N-2012-23-5110-WTL surface power relay is a miniature industrial relay designed for general applications in industrial automation, electrical control, and signal conditioning systems. It operates with a coil voltage of 110V and supports a switching current of 12A, providing reliable power relay functions in compact dimensions for space-efficient designs.

This DPDT relay features a plug-in terminal type and is designed for surface mounting with practical mechanical indicators and a lockable front test button for easy status verification and maintenance. The relay includes cadmium-free silver alloy contacts to ensure high conductivity and durability while complying with RoHS directives.

The relay operates within a temperature range from -40°C to +55°C, suitable for diverse industrial environments. It can switch AC voltages up to 440V and DC voltages up to 24V with a switching power rating of 1.5W, making it versatile for controlling various loads.

Dimensions are compact at 27.5mm length, 21.2mm width, and 35.6mm height, enabling integration into limited space control panels. The coil resistance of 3.5kΩ and power consumption of 1.6W ensure efficient operation. The product complies with CSA, UL, and UR safety standards, guaranteeing quality and safety in industrial deployments.

Relpol relays are widely used in industrial manufacturing, HVAC systems, electrical equipment, and automation systems for switching and control tasks. Package includes the relay module ready for socket mounting and use in 110V coil voltage circuits.

The surface mount relay has a 2-pole double throw (DPDT) contact configuration. It supports switching of up to 440V AC and 24V DC with a switching power of 1.5W. The coil resistance is 3.5kΩ and coil power consumption is 1.6W at 110V.

Operational temperature range is from -40°C to +55°C for reliable performance. Terminal type is plug-in for easy installation and replacement. Compact miniature size with dimensions 27.5mm length, 21.2mm width, and 35.6mm height.

Silver alloy contact material ensures durability and good conductivity. Meets CSA, UL, and UR safety standards and approvals. Designed for mounting in plug-in sockets with mechanical indicator and lockable front test button.

Cadmium-free contacts and RoHS compliant for environmental safety. Explore the extensive range of Relpol Industrial Relays and Power Relays available on EnvMart for your industrial and automation needs.
