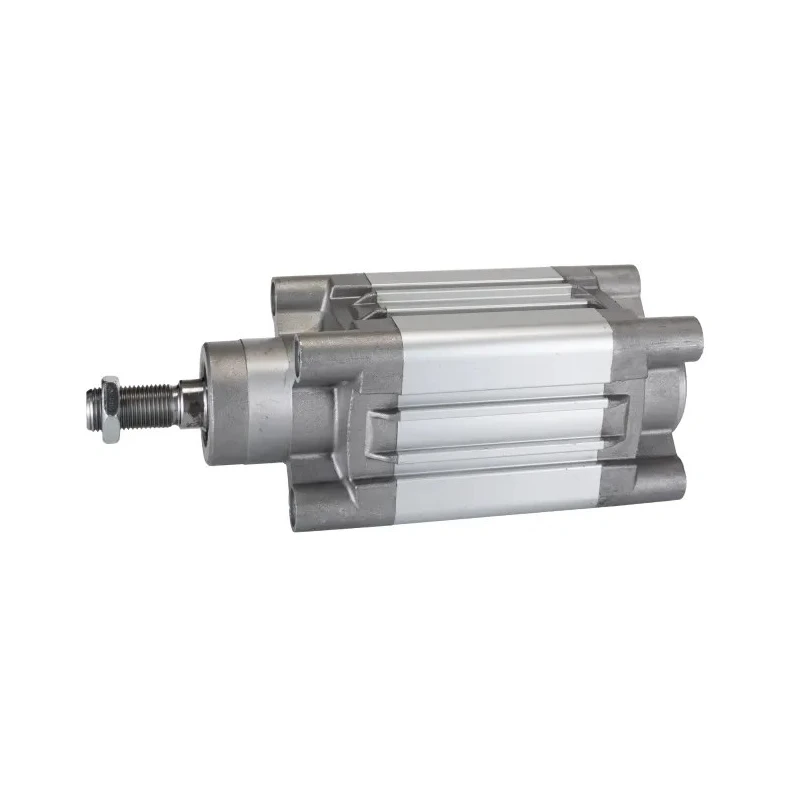

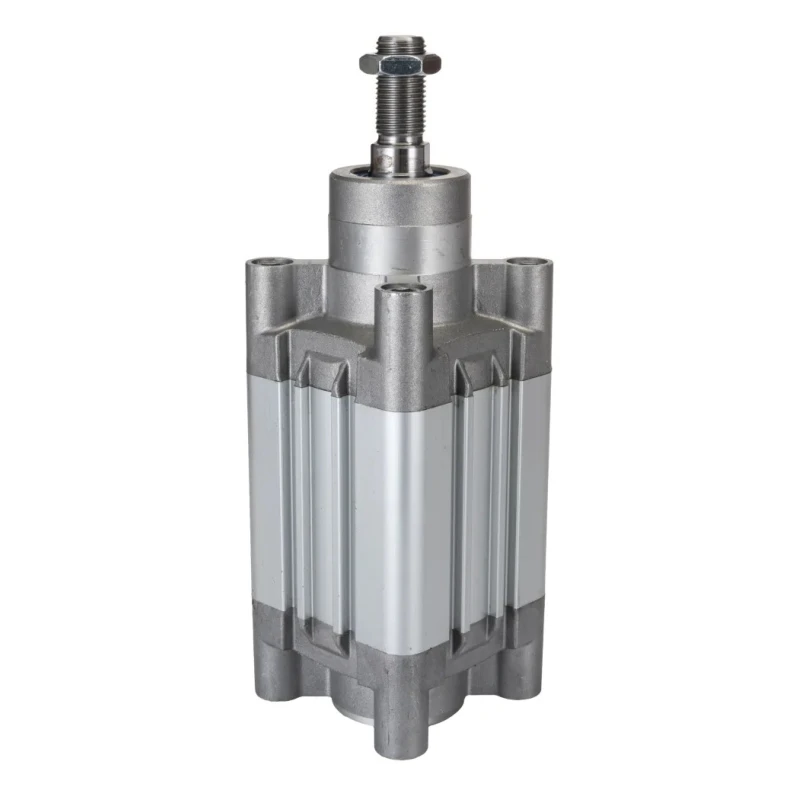

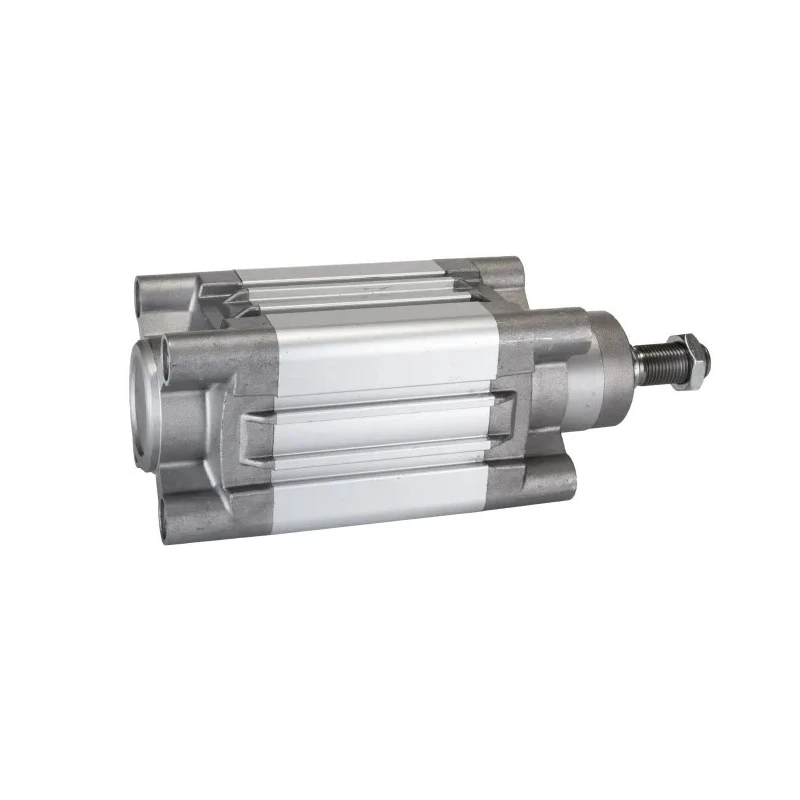

RS PRO Double Acting Cylinder X Series 40mm Bore, 125mm Stroke, 260mm Length, Stainless Steel Body, Cushioned 176-1684

RS PRO 176-1684 is a double acting pneumatic cylinder from the X Series designed for industrial applications requiring precise and reliable motion control. Featuring a 40mm bore diameter, 125mm stroke length, and a total length of 260mm, this cylinder converts compressed air into controlled mechanical movement for automation tasks.

The cylinder body is constructed of corrosion-resistant stainless steel, providing durability and long-lasting performance even in challenging industrial environments. The double acting design uses air pressure alternately on both sides of the piston to ensure smooth and powerful movement in both directions.

The integrated magnetic feature enables use with external magnetic sensors to detect piston position, enhancing process control and automation feedback loops. Cushioning at the end of the stroke minimizes impact noise and mechanical wear, improving operational lifespan.

This RS PRO cylinder mounts easily with both ends tapped, providing secure and flexible installation options. It operates effectively at pressures up to 10 bar and temperature ranges of 0°C to 80°C, suitable for a variety of manufacturing, robotics, assembly line, and pneumatic automation uses.

Key features include a female piston rod with a 1/4 inch G thread size, compact dimensions measuring 54mm width and height, and compliance with ISO 15552 standards ensuring interchangeability and quality.

This double acting cylinder features a durable stainless steel body ensuring corrosion resistance. Cushioned end positions reduce impact noise and increase service life. Integrated magnet allows position sensing using external sensors for control feedback.

Both ends are tapped for convenient mounting flexibility in automation systems. Capable of operating at maximum pressure of 10 bar. Suitable for environments with temperatures ranging from 0°C to 80°C. Female piston rod with 1/4 inch G thread size for secure attachments.

Compact dimensions with 260mm length and 54mm width and height. Compliant with ISO 15552 standards for pneumatic cylinders.

This product is ideal for industrial pneumatic systems including manufacturing, assembly automation, robotics, and fluid power applications. RS PRO cylinders are trusted for precision, durability, and ease of integration across a wide range of industrial sectors.
