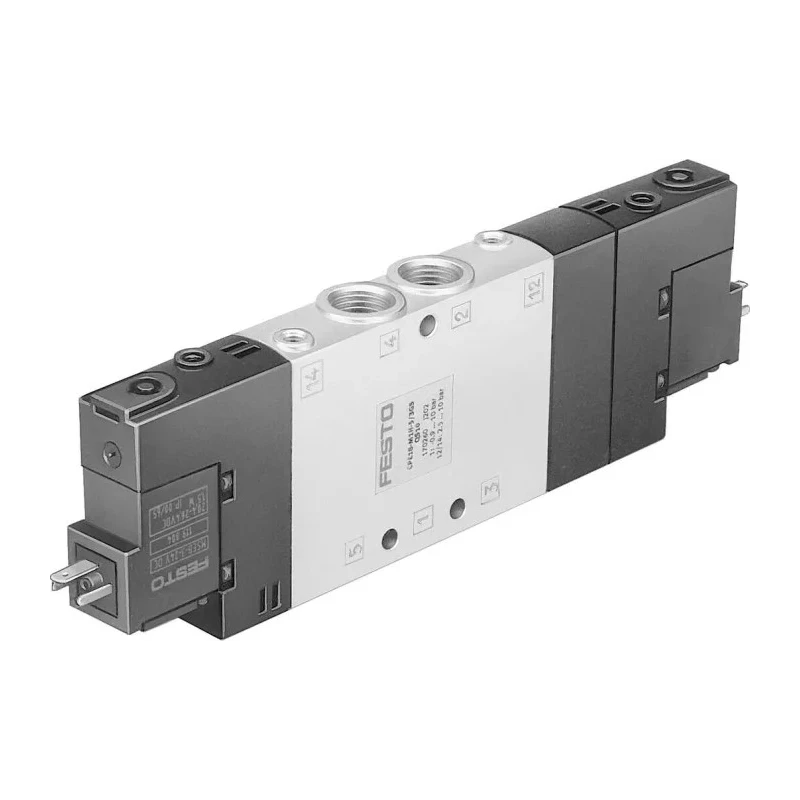

Festo Solenoid Pilot Valve Electric G CPE Series 24V dc 1/4 in Port Size Aluminium Body CPE18-M1H-5/3G-1/4

Festo CPE18-M1H-5/3G-1/4 solenoid pilot valve electric is a precision pneumatic valve designed for controlling airflow efficiently in industrial settings. Operating at 24V dc, it features a 1/4 inch port size and a robust aluminium body to withstand corrosive and humid conditions. This 5/3 valve offers five ports and three distinct switching positions, which is particularly suitable for double-acting cylinder applications and safety systems.

The valve supports a maximum operating pressure of 10 bar and provides a maximum flow rate of 1500 L/min, allowing for rapid airflow control with switching times between 20 to 38 milliseconds. The through-hole mount type facilitates straightforward installation on manifold rails, making it adaptable for various pneumatic system configurations.

Its die-cast aluminium housing improves durability and corrosion resistance, making it well-suited for use in processing plants, paper production, and logistics industries. The compact 18 mm width optimizes space usage in manifold assemblies. Additionally, the valve operates effectively within a temperature range from -5°C to 50°C, ensuring performance in diverse environments.

Energy efficiency is supported by its low coil power consumption of 1.5 watts, which helps reduce operational costs. The valve is compatible with both clean and lubricated compressed air supplies, enhancing its versatility across multiple pneumatic applications.

Electric actuation ensures precise control of airflow. 5/3 valve function with five ports and three switch positions ideal for double-acting cylinders. Maximum operating pressure of 10 bar suitable for various pneumatic applications.

Maximum flow rate of 1500 L/min allows efficient air handling. Die-cast aluminium housing resists corrosion in humid environments. Through-hole mount type enables easy installation on manifold rails. Compact width of 18 mm conserves space on control panels.

Wide operating temperature range from -5°C to 50°C ensures versatile use. Low coil power consumption of 1.5 W enhances energy efficiency. Compatible with clean and lubricated compressed air supplies.

This Festo solenoid pilot valve is ideal for industrial and manufacturing environments including pneumatic systems in processing plants, paper production lines, and logistics sectors. Its robust design, fast switching time, and energy-efficient operation make it a reliable component for airflow management.

Discover more devices in the Pneumatic Solenoid Valve category on EnvMart for comprehensive industrial valve solutions tailored to demanding applications.
