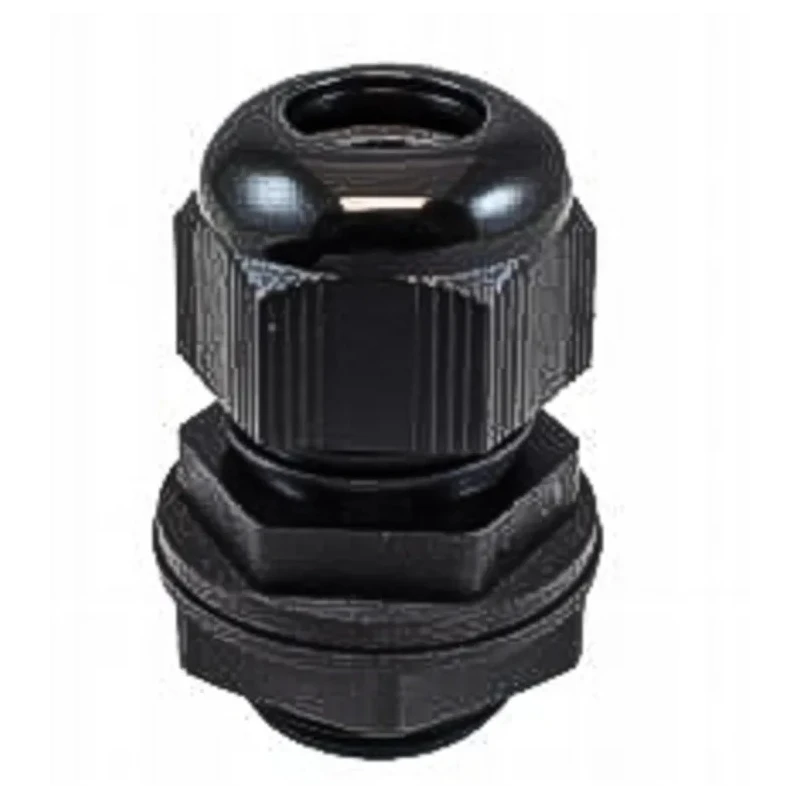

Alpha Wire FIT Wire Management Series Black Polyamide 6 Cable Gland M40 Thread 19-28 mm PMC40 BK080
Specifications
| Country of Origin | India |
|---|---|
| Size | M-40x1.5 |
| Brand | Alpha Wire |
| Material | Polyamide 6 |
| Colour | Black |
| Temperature range | -20°C to +100°C (Permanent), -30°C to +150°C (Intermittent) |
| Model | PMC40 BK080 |
| IP Rating | IP66, IP68 |
| Series | FIT Wire Management |
| Maximum Operating Temperature | 150°C |
| Thread Size | M40 |
| Minimum Operating Temperature | -30°C |
| Thread Length | 10 mm |
| Clamping Range | 19 - 28 mm |
| Thread Diameter | 40 mm |
| Standards/Approvals | CSA, UL |
| Maximum Cable Diameter | 28mm |
| Minimum Cable Diameter | 19mm |
| Flammability | V2 (According to UL94) |
Key Features
- Constructed from Polyamide 6 material ensuring durability and chemical resistance.
- Clamping range supports cable diameters from 19 mm to 28 mm.
- Rated IP66 and IP68 for dust and water ingress protection.
- Includes locknut for secure installation and strain relief.
- Operates under temperatures from -30°C to 150°C with intermittent tolerance up to 150°C.
- Features standard M-40x1.5 threading with 10 mm thread length.
- Complies with CSA and UL standards for quality and safety.
- Rubber sealing with chloroprene O-ring enhances environmental protection.
Product Description
Alpha Wire PMC40 BK080 FIT Wire Management Series Cable Gland is a high-quality black cable gland designed for robust and secure cable strain relief. Manufactured from Polyamide 6, it offers excellent mechanical strength and chemical resistance. The gland thread size is M40 with a clamping range accommodating cable diameters from 19 to 28 mm, suitable for a range of cable sizes.
The cable gland is rated IP66 and IP68, providing effective protection against dust ingress and water immersion beyond 1 meter, making it ideal for harsh industrial environments. The rubber O-ring seal made with chloroprene enhances the cable gland's watertight performance. It includes a locknut to ensure a firm fit in installations, preventing loosening from vibration or mechanical stress.
Operating temperature ranges from -30°C to a maximum of 150°C intermittent, suitable for demanding applications in electrical, telecommunications, instrumentation, and control systems. The gland conforms to CSA and UL safety standards, with UL94 V2 flammability rating ensuring that the plastic material self-extinguishes flame in vertical burn tests.
Thread specifications include a standard M-40x1.5 metric thread with 10 mm thread length and 40 mm thread diameter. The unique design offers a broad clamping range that secures cables firmly while protecting against mechanical strain and environmental hazards.
Durable Polyamide 6 construction for chemical and mechanical resistance. Wide clamping range for cables between 19 - 28 mm diameter. IP66 and IP68 rated for dust proofing and water immersion protection. Includes locknut and chloroprene rubber O-ring for secure sealing.
Wide operating temperature range suitable for industrial applications. Complies with CSA and UL safety and quality standards. M-40x1.5 thread with 10 mm length provides secure fitment. Flammability rating UL94 V2 ensures safety in hazardous environments.
Ideal for telecommunications, control, instrumentation, and power cabling. Explore the full range of Cable Glands and fittings at EnvMart to find compatible solutions for your industrial wiring requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping range of this model accommodates cable diameters from 19 mm to 28 mm.
This cable gland is rated IP66 and IP68, providing protection against dust ingress and water immersion beyond 1 meter.
It is constructed from Polyamide 6, which ensures durability and chemical resistance.
The operating temperature range is from -30°C to 150°C, with the maximum temperature being suitable for intermittent use.
It features a standard M-40x1.5 thread size with a thread length of 10 mm.
Yes, it includes a locknut for secure installation and strain relief.
It complies with CSA and UL standards for quality and safety.
The flammability rating is V2 according to UL94, indicating it self-extinguishes in vertical burn tests.
This cable gland is available in black.
It is suitable for applications in electrical, telecommunications, instrumentation, and control systems.
The country of origin for this cable gland is India.
The maximum cable diameter that this gland can accommodate is 28 mm.
