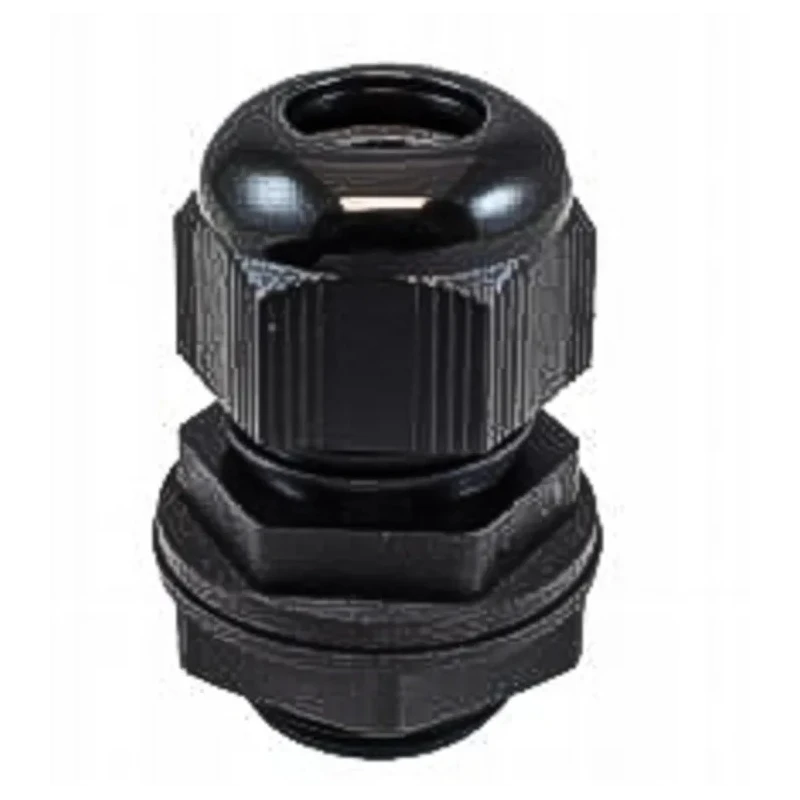

Alpha Wire FIT Wire Management Series Black Polyamide 6 Cable Gland M32 Thread, 15-21 mm Diameter, IP68 IP66 PMC32 BK080
Specifications
| Country of Origin | India |
|---|---|
| Size | M-32x1.5 |
| Brand | Alpha Wire |
| Material | Polyamide 6 |
| Colour | Black |
| Temperature range | -20°C to +100°C (Permanent), -30°C to +150°C (Intermittent) |
| Model | PMC32 BK080 |
| IP Rating | IP68, IP66 |
| Series | FIT Wire Management |
| Maximum Operating Temperature | 150°C |
| Thread Size | M32 |
| Minimum Operating Temperature | -30°C |
| Thread Length | 10 mm |
| Clamping Range | 15 - 21 mm |
| Thread Diameter | 32 mm |
| Standards/Approvals | UL, CSA |
| Maximum Cable Diameter | 21mm |
| Minimum Cable Diameter | 15mm |
| Flammability | V2 (According to UL94) |
Key Features
- Constructed from black Polyamide 6 for durability.
- Equipped with a Chloroprene rubber O-ring seal ensuring waterproof performance.
- Thread size M32 with 10 mm thread length for secure fitting.
- Rated IP68 and IP66 for water and dust resistance.
- Wide operating temperature range from -30°C to 150°C.
- Includes locknut for easy installation and secure locking.
- Meets UL and CSA standards for quality and safety.
- Flammability rating V2 according to UL94 safety standards.
Product Description
Alpha Wire PMC32 BK080 FIT Wire Management Series cable gland provides an effective solution for strain relief and cable protection in demanding environments. Manufactured using high-quality Polyamide 6 in black, it ensures superior mechanical strength and durability.
This cable gland supports a clamping range of 15 to 21 mm cable diameters with an M32x1.5 thread size and a 10 mm thread length, facilitating easy and secure installation. The Chloroprene rubber O-ring seal enhances its waterproof sealing capabilities, achieving IP68 and IP66 ingress protection ratings, which make it suitable for applications exposed to dust, water, dirt, and sand.
Designed for use in electrical, telecommunications, instrumentation, and control cable management, the gland withstands extreme operating temperatures from as low as -30°C to intermittent peaks up to 150°C. It also complies with UL and CSA standards and features a V2 flammability rating per UL94, ensuring safety in fire-prone environments.
Included in the package is a locknut for firm securing of the gland, helping maintain the integrity of cable installations. Ideal for industrial and commercial applications requiring reliable cable fitting solutions, this product combines quality materials with robust construction.
Constructed from Polyamide 6 for long-lasting performance. Chloroprene rubber seal provides effective waterproofing. Fits cables ranging from 15 mm to 21 mm diameter. Thread size M32 with 10 mm thread length for compatibility with standard fittings.
IP68 and IP66 rated for dust and water resistance. Temperature range from -30°C to 150°C withstands harsh conditions. UL and CSA approved ensuring compliance with industry standards. Flammability V2 rating enhances fire safety.
Includes locknut for secure installation. Browse EnvMart's extensive selection of Cable Glands and fittings for comprehensive cable management solutions suitable for industrial, electrical, and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping range of this cable gland is from 15 mm to 21 mm in diameter.
This model has a thread size of M32 with a thread length of 10 mm.
It is rated IP68 and IP66 for water and dust resistance, making it suitable for harsh environments.
The cable gland is constructed from black Polyamide 6 and features a Chloroprene rubber O-ring seal for waterproof performance.
It can operate in temperatures ranging from -30°C to 150°C, accommodating both permanent and intermittent conditions.
It meets UL and CSA standards for quality and safety, ensuring compliance in industrial applications.
Yes, it includes a locknut for easy installation and secure locking of the gland.
The flammability rating is V2 according to UL94 safety standards, enhancing fire safety.
It is designed for use in electrical, telecommunications, instrumentation, and control cable management.
The maximum cable diameter supported by this model is 21 mm.
This cable gland is manufactured in India.
The cable gland is black in color, providing a neutral appearance for various installations.
