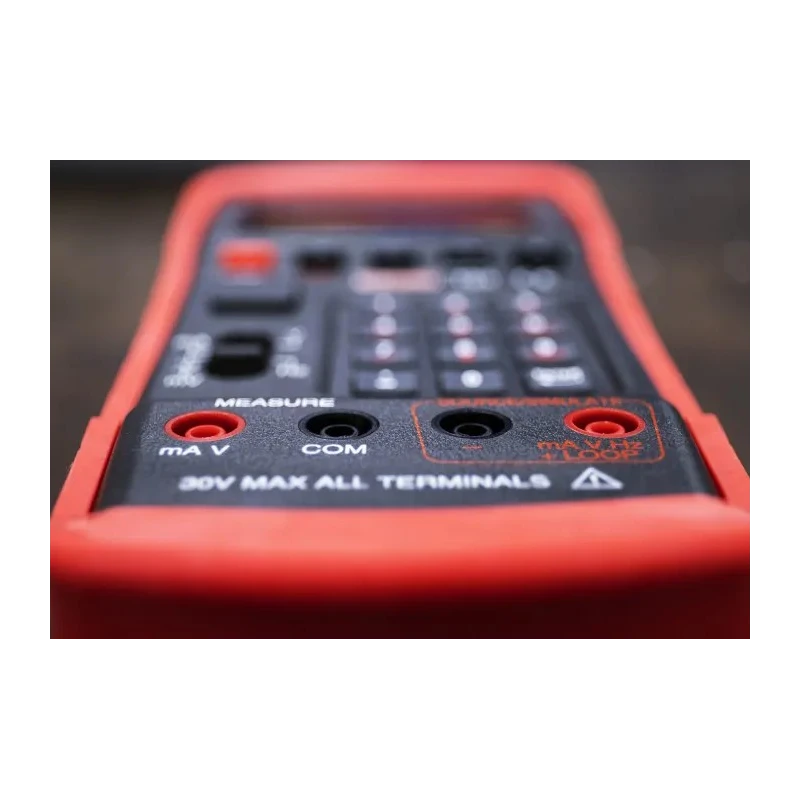

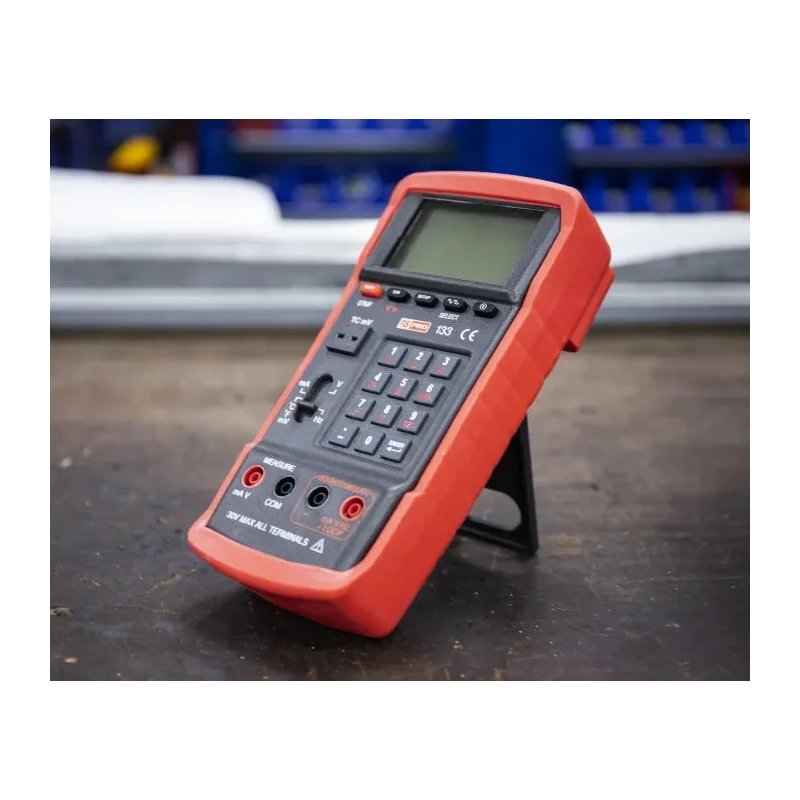

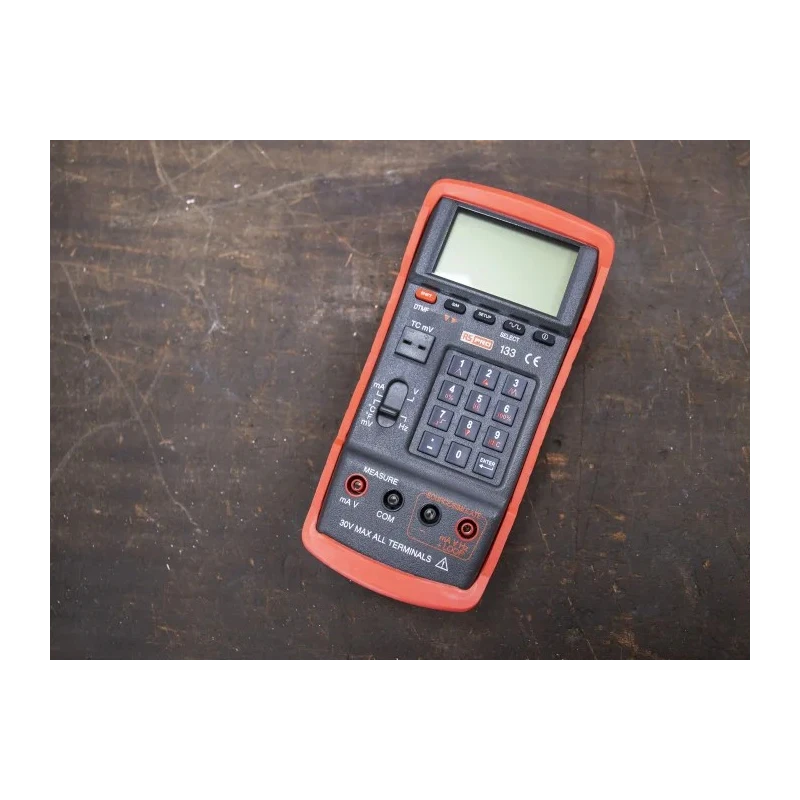

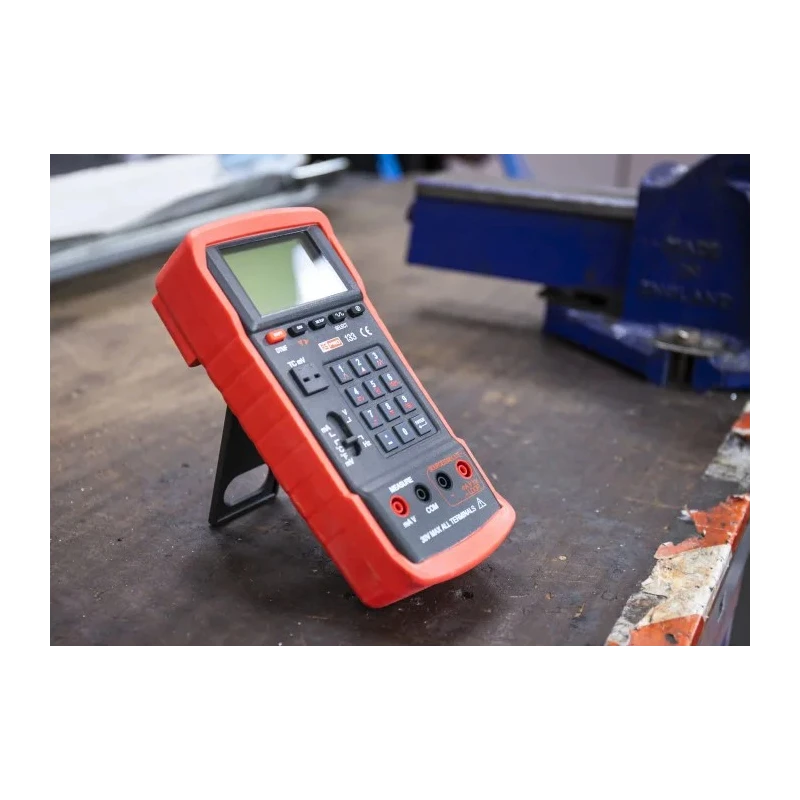

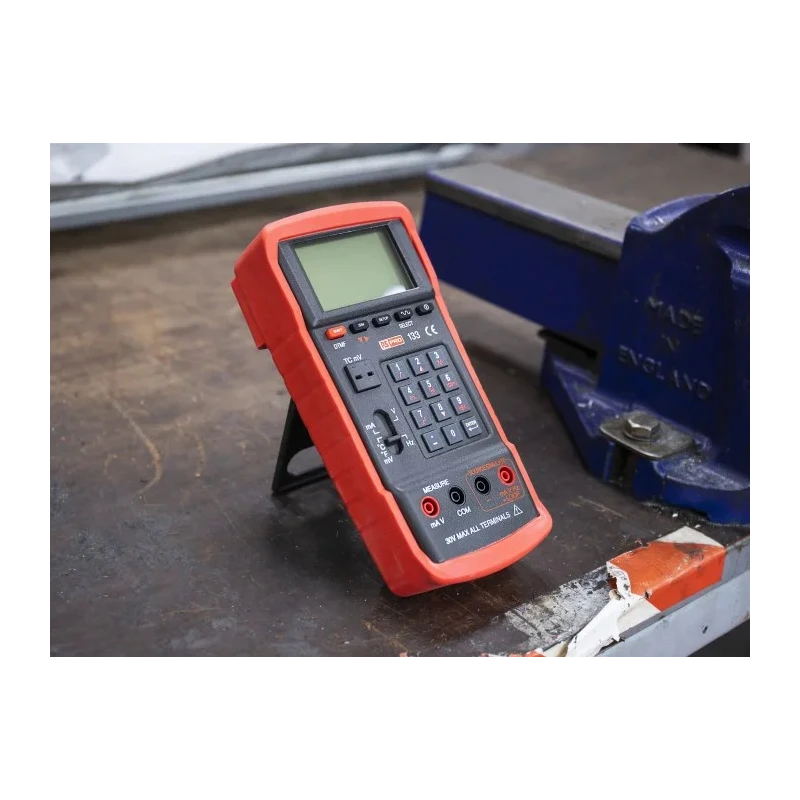

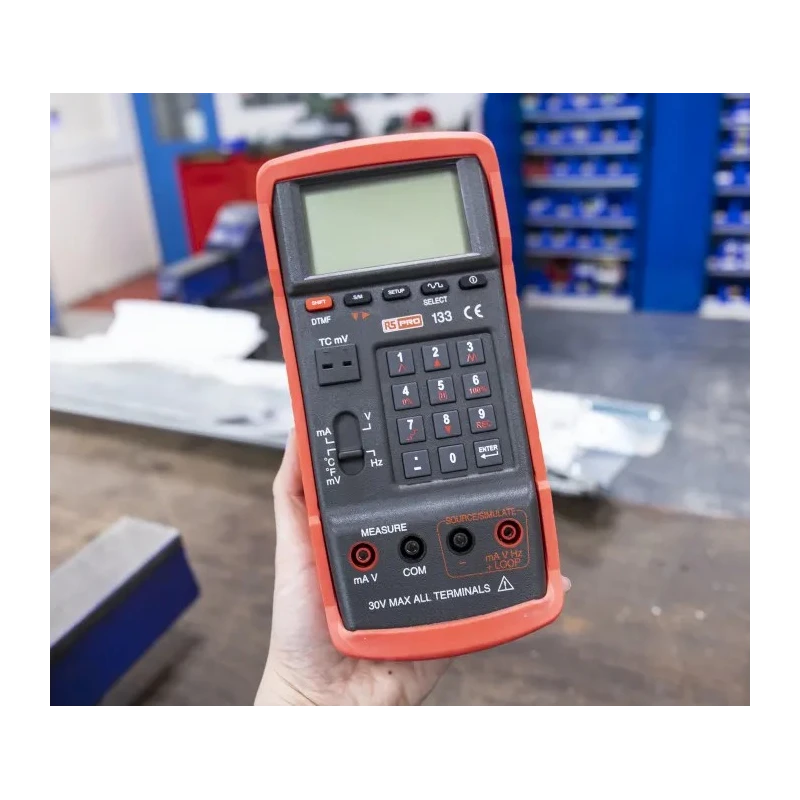

RS PRO Current & Voltage Calibrator 24V 24mA Lithium-ion Battery 133 174-9556
Specifications
| Country of Origin | Taiwan |
|---|---|
| Accuracy | 0.03% |
| Voltage | Calibrators RS PRO 133 Current & Voltage Calibrator, Max Voltage 24V 24 mA RS St |
| Brand | RS PRO |
| Battery type | Lithium-ion |
| Height | 56mm |
| Length | 214mm |
| Model | 174-9556 |
| Gross Weight | 650g |
| Width | 98.7mm |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Measure | Current (mA), Voltage (V, mV) and temperature in °C or °F |
| Interfaces | USB cable |
| Maximum Voltage Measurement | 24V |
| Maximum Current Measurement | 24mA |
| Maximum Source Voltage | 15V |
| Minimum Source Voltage | 0.005V |
| Minimum Source Current | 0.005mA |
Key Features
- The calibrator features lithium-ion battery for long-lasting and reliable power.
- It offers exceptional accuracy of 0.03% for precise measurements.
- The device is compact and lightweight with dimensions 214mm x 98.7mm x 56mm and weighing 650g.

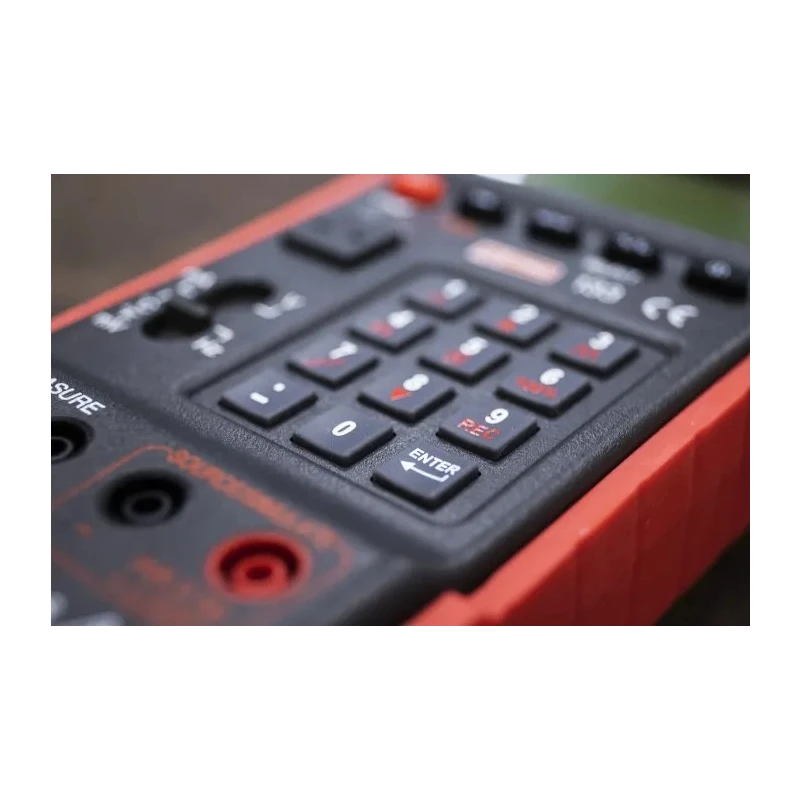

- Equipped with a user-friendly push-button interface that is ergonomic and easy to operate.
- Designed for durability with dust and splash resistance and EMI tolerance.
- Supports multiple waveform sources including sine, square, triangular, truncated sine waves, and is user-programmable.
- The calibrator measures current (mA), voltage (V, mV), and temperature in °C or °F with versatile functionality.
- Operates within a temperature range of 0°C to 50°C ensuring stable performance in industrial environments.
Product Description
RS PRO 133 Current & Voltage Calibrator is a high-performance instrument designed for precision calibration of current and voltage signals in industrial, laboratory, and HVAC environments. Featuring a maximum voltage measurement of 24V and current measurement up to 24mA, it delivers an accuracy of 0.03%, ensuring reliable calibration results.
The device is powered by a rechargeable lithium-ion battery, providing portability and ease of use. Its rugged construction includes dust and splash resistance as well as EMI tolerance, making it suitable for demanding field and workshop conditions.
With compact dimensions (214mm length, 98.7mm width, 56mm height) and a lightweight design of 650g, the calibrator offers convenience without compromising durability. The ergonomic push-button interface facilitates straightforward operation, while the removable battery door enables quick battery replacements.
This calibrator supports versatile source outputs including 4-20 mA current loops (open voltage 24 V), voltage ranges from 0 to 15 V and 0 to 70 mV, and multiple waveform types such as sine, square, triangular, truncated sine, and user-programmable patterns. It can also measure temperature for 11 types of thermocouples, allowing comprehensive testing capabilities.

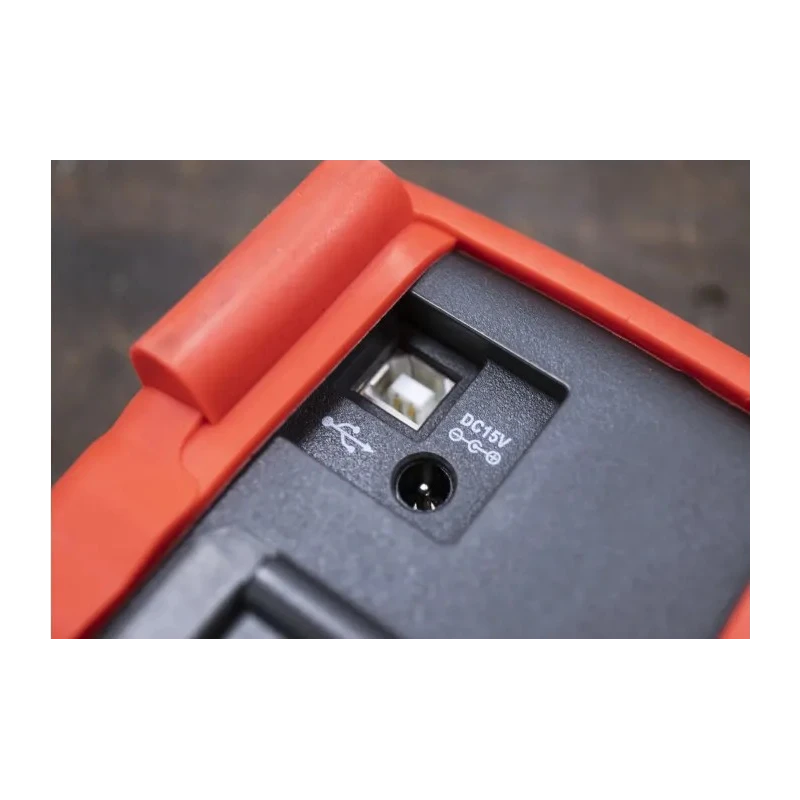

The calibrator is ideal for industrial testing, laboratory calibration, electrical maintenance, and HVAC system verification. Its USB cable interface enables easy programming and data communication with external devices.
Operating temperature range from 0°C to 50°C ensures stability under varying environmental conditions. Its accuracy and measurement flexibility provide precise calibration for process control and automation equipment. Manufactured in Taiwan, Province Of China, the instrument upholds high-quality standards expected in professional environments.
Choose RS PRO 133 Current & Voltage Calibrator for reliable, portable, and precise calibration solutions in a wide range of industrial and laboratory applications. Explore more measuring and testing instruments at EnvMart for your professional needs.
Explore more products in our Current & Voltage Calibrators category.
