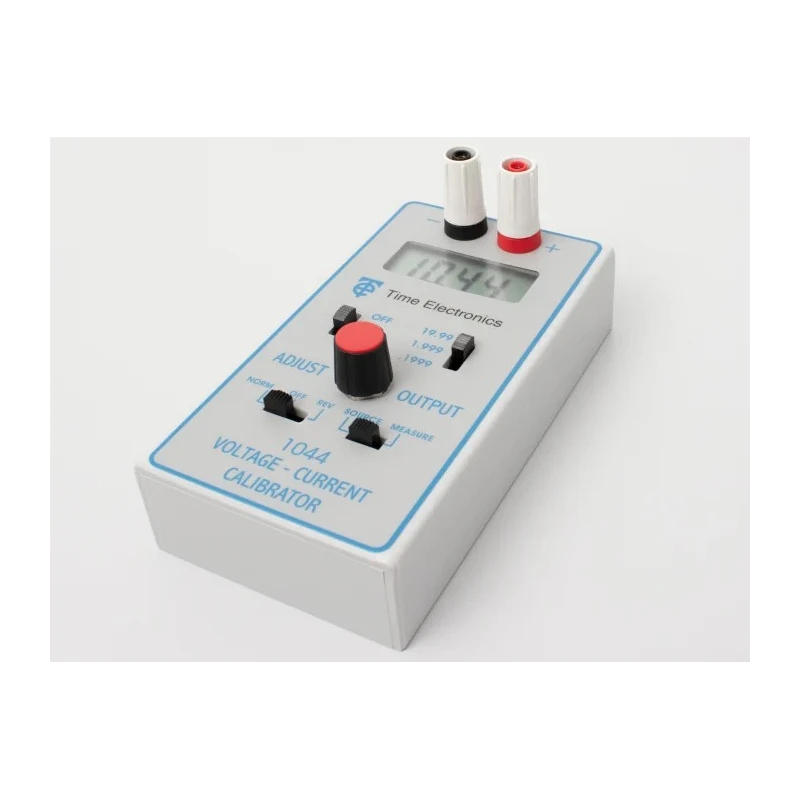

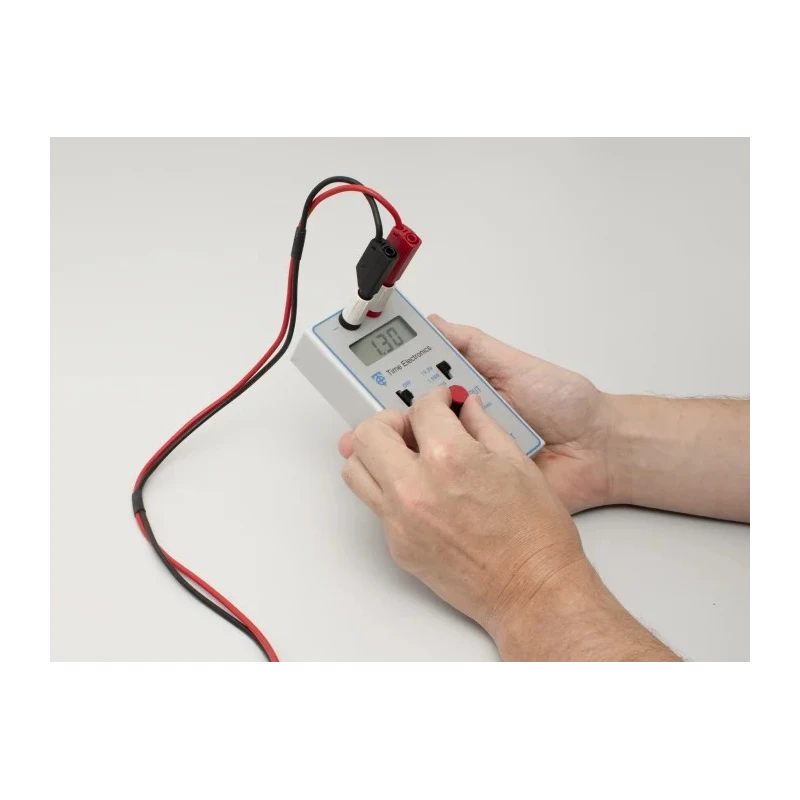

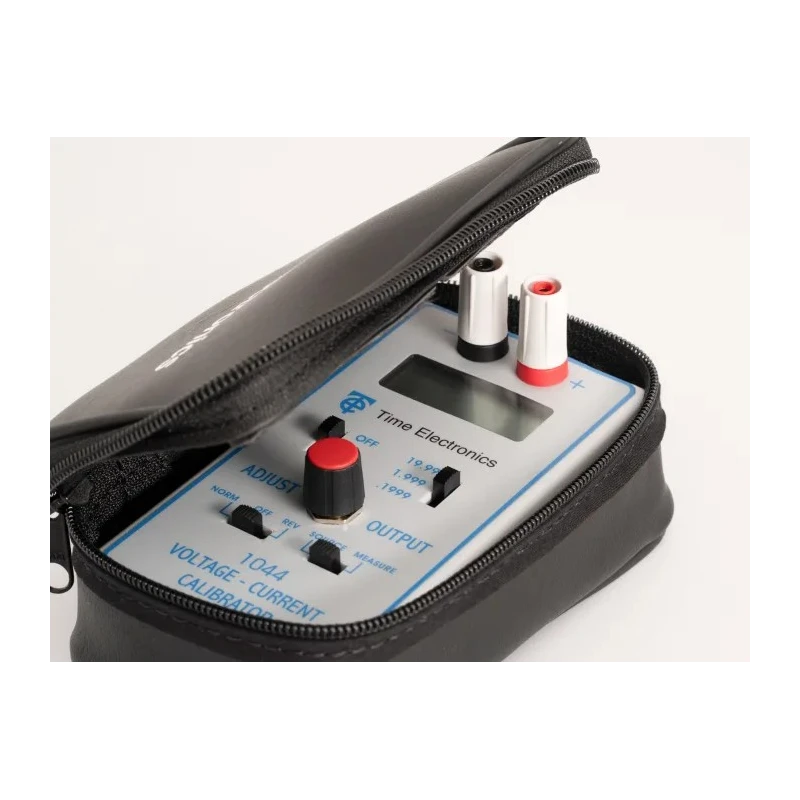

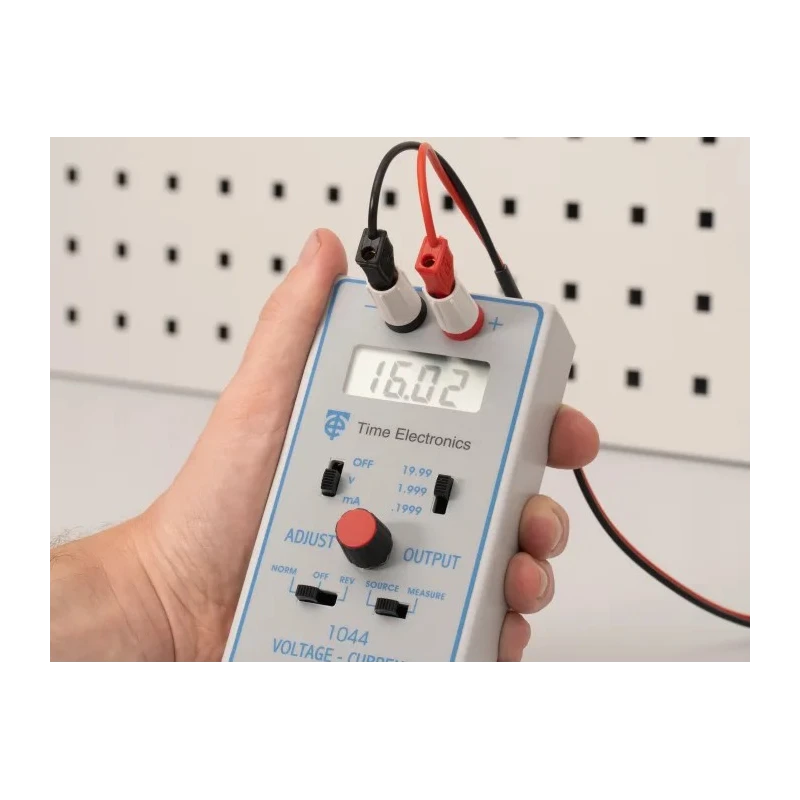

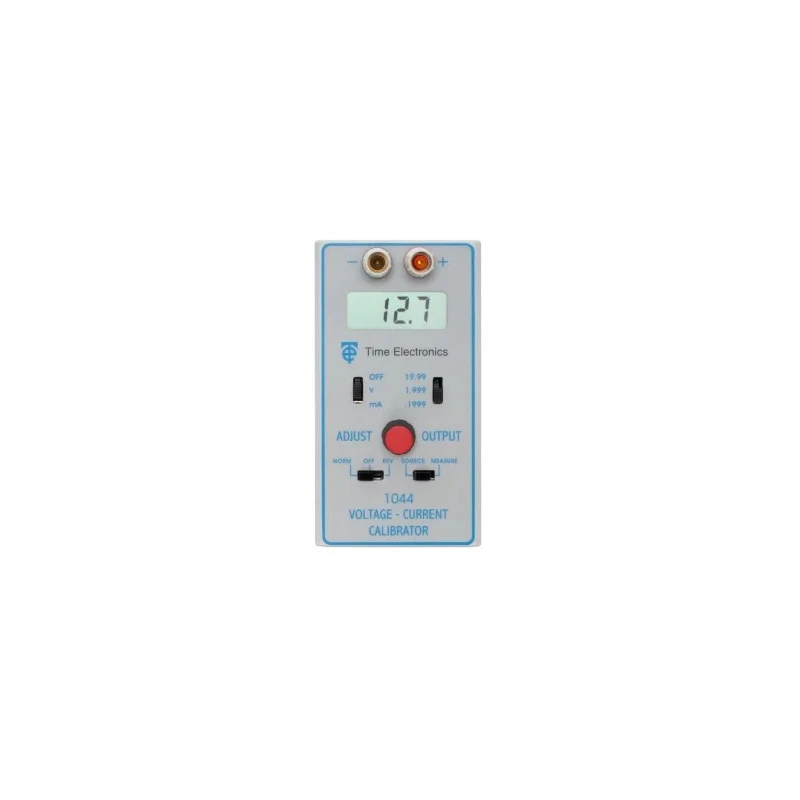

Time Electronics Current & Voltage Calibrator Max Voltage 20V 20 mA 1044

Time Electronics 1044 Current & Voltage Calibrator is a compact handheld instrument designed for precision calibration of current and voltage in diverse engineering environments. Featuring a maximum voltage rating of 20V and current rating of 20mA, this calibrator combines the accuracy of digital measurement with the intuitive control of analogue interfaces.

This calibrator supports multiple voltage ranges including 0mV to 200mV, 0V to 2V, and 0V to 20V, along with current ranges of 0μA to 200μA, 0 to 2mA, and 0mA to 20mA. Such flexibility allows it to serve applications from electronic servicing to industrial automation with ease.

Its rugged ABS housing and lightweight design (300g) make it ideal for on-site calibrations and laboratory use. The informative LCD screen clearly displays both sourced and measured values, streamlining the calibration process. Safety features like short circuit and reverse polarity protection, along with a low battery indicator, ensure reliable operation.

This model operates on a single PP3 alkaline battery (not supplied), providing convenience in portable scenarios. Its accurate performance within ±0.05% makes it a favored choice among test engineers, researchers, and electronic technicians.

Applications include electrical maintenance, laboratory calibration, electronic servicing, and industrial automation testing. It complies with ANSI/ESD S20.20: 2014 and BS EN 61340-5-1: 2007 standards, reinforcing its quality and safety credentials.

The device offers maximum voltage sourcing and measurement up to 20V. Maximum current sourcing and measurement reach up to 20mA, suitable for varied engineering applications. Accuracy of ±0.05% ensures high precision for calibration tasks.

Compact, handheld design housed in a rugged ABS case for durability and portability. Three voltage and three current ranges enhance versatility and ease of use. Clear LCD displays source output and measurement values simultaneously.

Battery-powered operation with a single PP3 alkaline battery (not included) enables field use. Includes protective features such as short circuit and reverse polarity protection. Ideal for electrical servicing, laboratories, industrial automation, and electronic maintenance.

Compact dimensions of 142 x 75 x 20 mm and lightweight at 300 grams enhance mobility. Explore the wide range of current and voltage calibrators available in EnvMart’s Electrical Test & Measurement category for precision testing solutions.
