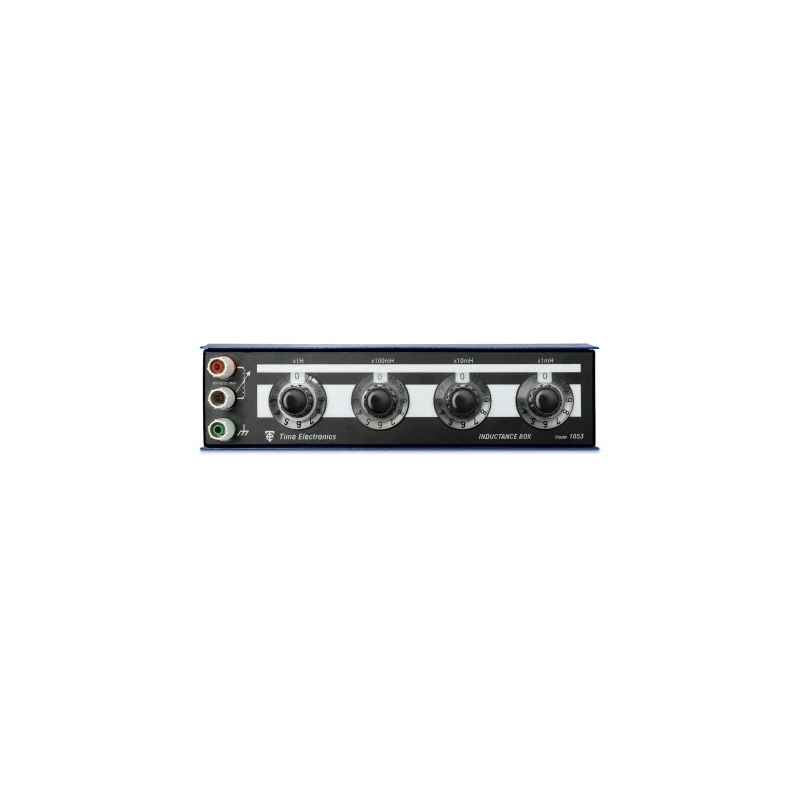

Time Electronics 4-Decade Inductance Decade Box 1 MHz, ±3% Accuracy, 1mH-10H Range, 245x62x100mm 1053

Time Electronics 1053 Inductance Decade Box 1 MHz is a precision electronic measuring instrument designed for industrial, laboratory, and engineering applications requiring accurate inductance selection and testing. It provides a reliable inductance range from 1 millihenry to 10 henrys across 4 decades with an accuracy of ±3%, ensuring precision in circuit modeling, filter design, and DC converter applications.

The device incorporates high permeability custom wound ferrite cores that significantly reduce the effects of external magnetic fields, enhancing measurement stability and repeatability. Encased in a fully screened metal casing, it provides robust shielding against electromagnetic interference, making it optimal for environments sensitive to noise.

The inductance values are set via four clearly marked rotary dials, each representing a decade value, facilitating easy and accurate adjustments. The box features standard 4mm terminal connections, including a dedicated case connection for grounding and safety, conforming to key international standards such as ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007.

With compact dimensions of 245mm in length, 62mm width, and 100mm height, and a weight of approximately 800 grams, the unit is convenient for portable bench setups in electronic testing labs or field work.

This inductance decade box is a versatile and essential tool for electronic component testing, filter circuit development, and precision measurements where reliable inductance substitution is critical. Ideal for engineers, technicians, and researchers working in electronic design, manufacturing, and quality assurance sectors.

Features 4 easily readable dials covering decade values from 1mH to 10H. Accuracy maintained within ±3%. High stability from custom wound ferrite cores. Fully screened metal housing for EMI protection. Standard 4mm terminal connections with case grounding.

Compact and lightweight: 245x62x100mm, 800g weight. Meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards. Explore our range of precision Decade Boxes and electronic measuring instruments to enhance your testing capabilities.
