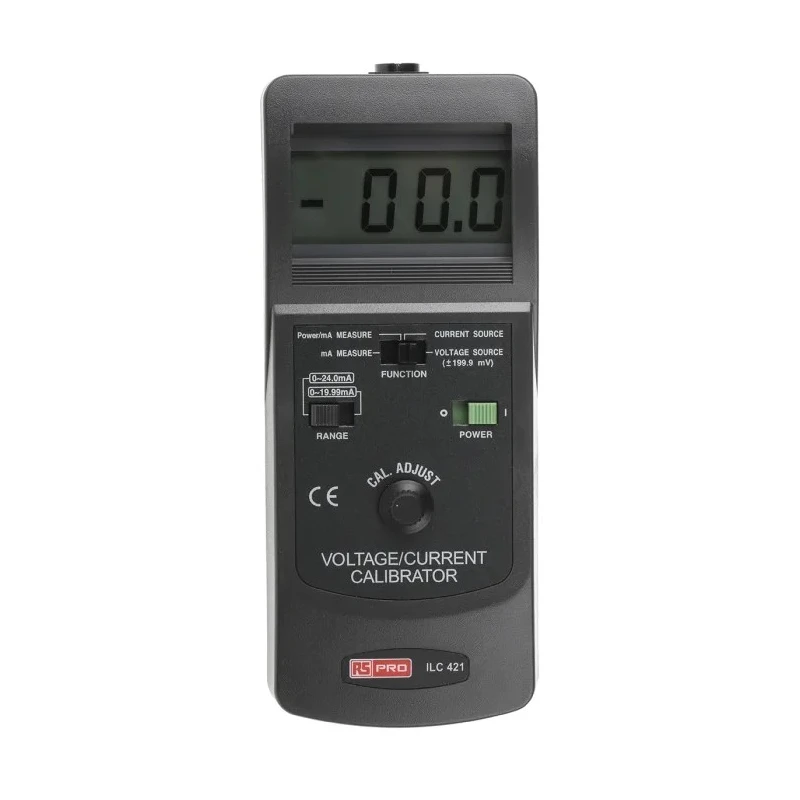

RS PRO Current & Voltage Calibrator Max Voltage 199.9V DC 24mA CC421-G

RS PRO CC421-G Current & Voltage Calibrator is a high-precision handheld instrument designed for the calibration and simulation of DC voltage and current loops with a maximum voltage of 199.9V DC and maximum current of 24mA. Its compact and portable design weighing 265g including battery makes it highly suitable for field use in electrical servicing, industrial automation, laboratories, and electronic maintenance.

The calibrator incorporates a high accuracy of ±0.25% plus 1 digit, supporting precise diagnostics and calibration tasks. It features an easy-to-read LCD display with maximum counts of 1999 and digit height of 13mm, ensuring clarity under diverse working conditions.

This device supports multiple functions including current sourcing, current measurement, and power assessment of two-wire loops. It can drive loads up to 500 ohms while maintaining measurement accuracy. Powered by a 006P DC 9V alkaline battery (PP3 or equivalent), it operates reliably within 0°C to 50°C ambient temperature.

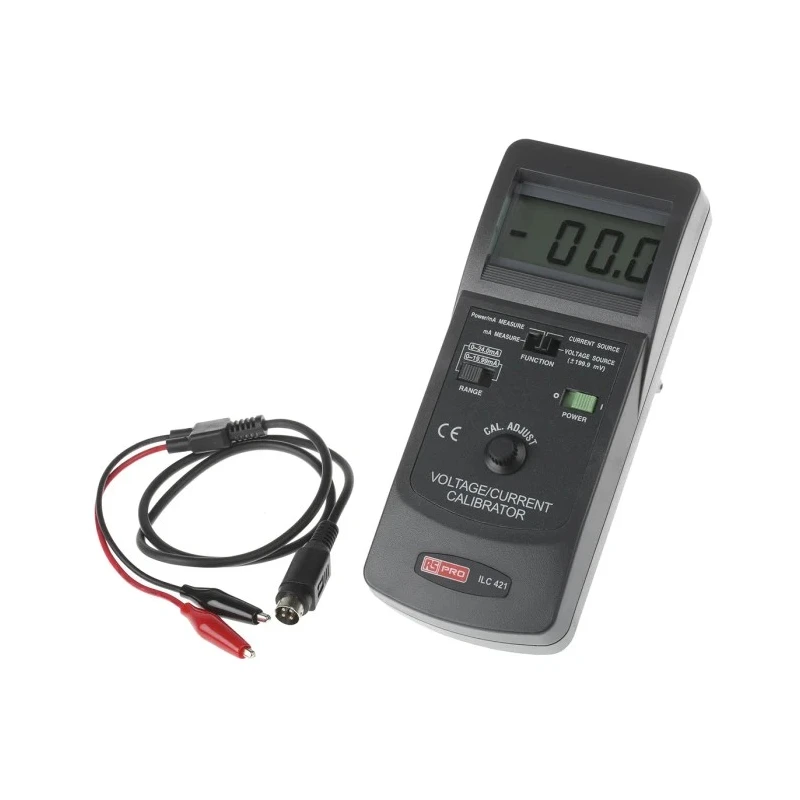

The RS PRO CC421-G comes equipped with an operational manual and alligator clip cables to facilitate immediate deployment. Its durable construction and user-friendly controls make it an essential tool for process engineers and calibration technicians requiring dependable current loop calibrator functionality.

Designed for precise calibration of DC voltage and current loops with a maximum voltage of 199.9V DC and current of 24mA. Compact and portable weighting 265g including battery pack. Accuracy rating of ±0.25% plus 1 digit for trustworthy measurements.

LCD display with 1999 max counts and 13mm digit size for ease of reading. Supports current sourcing, measurement, and two-wire loop power testing. Capable of driving load resistance up to 500 Ω. Operates at ambient temperatures from 0°C to 50°C.

Powered by 006P DC 9V alkaline or heavy-duty PP3 type battery. Includes operational manual and cable with alligator pairs. Manufactured in Taiwan, Province Of China, reflecting quality manufacturing standards.

This calibrator is widely applied in electrical servicing, electronic servicing, industrial automation, and laboratory environments. It is engineered for precision and reliability, making it a valuable addition to testing and measurement instrumentation.
