Myrra 18 V AC 2 Output PCB Transformer EN 61558-2-6 2.3 VA 230 V AC 44167

Free Delivery in India | Lowest Global Shipping Charges

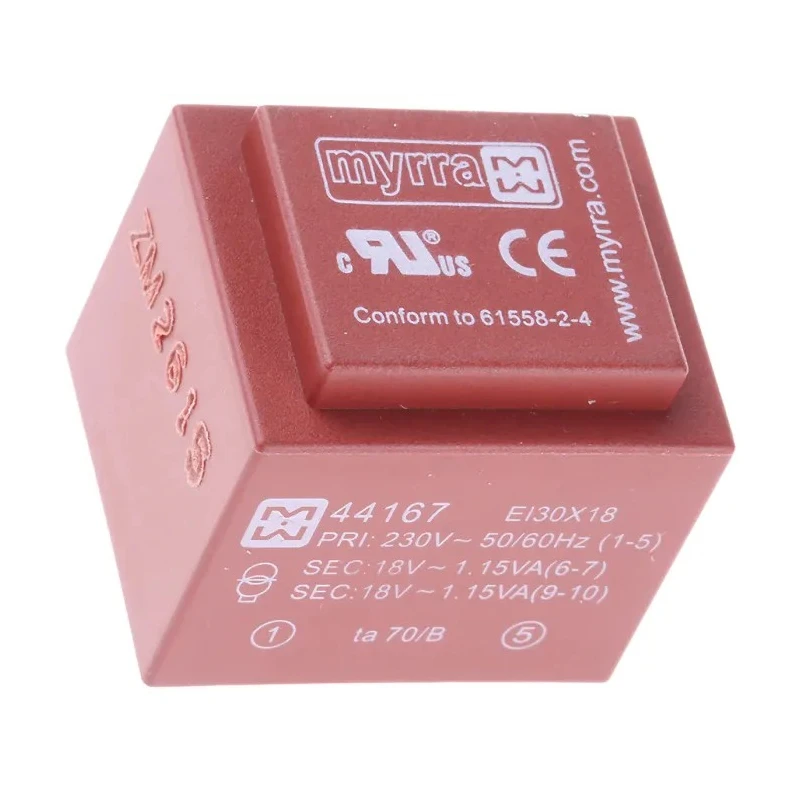

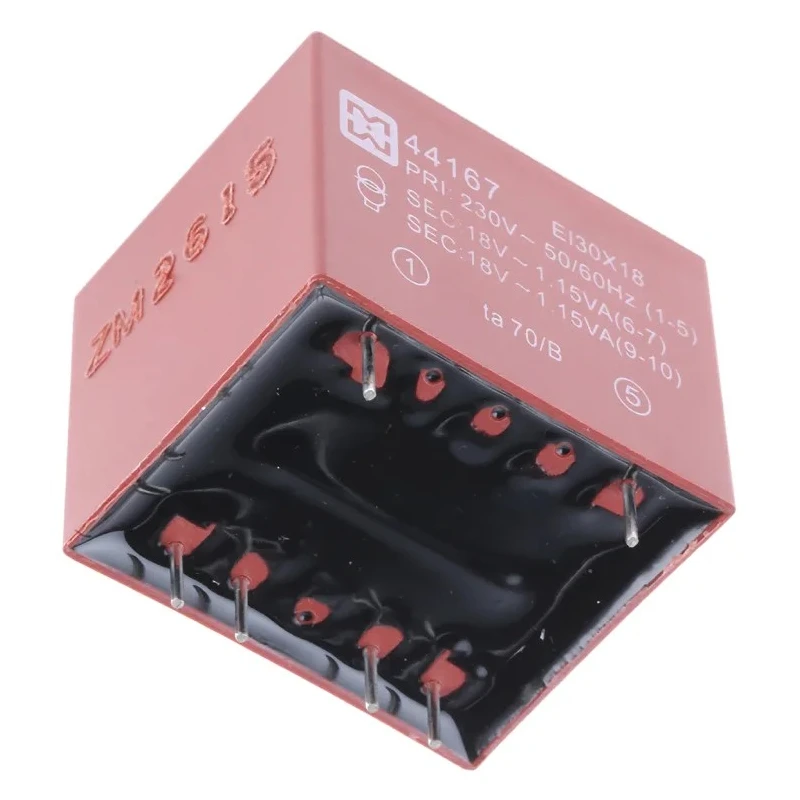

Myrra 18 V AC 2 Output PCB Transformer EN 61558-2-6 2.3 VA 230 V AC 44167

Name: Myrra 18 V AC 2 Output PCB Transformer EN 61558-2-6 2.3 VA 230 V AC 44167
Brand: Myrra
SKU: 237795
Price: 7.84 USD
Availability: InStock



Category PCB Transformer Brand Myrra Condition New

Specifications

Country of Origin	France
Brand	Myrra
Length	32.6mm
Model	44167
Depth	29.8mm
Gross Weight	70g
Width	27.6mm
Mount Type	PCB
Maximum Operating Temperature	70°C
Number of outputs	2
Standards/Approvals	EN 61558-2-6
Isolation Voltage	4kV
Primary Voltage	230 V ac
Secondary Voltage	18 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Myrra 18 V ac 2 Output Through Hole PCB Transformer, EN 61558-2-6 2 VABrand	Myrra

Key Features

Provides 18 V AC secondary voltage from 230 V AC primary voltage input.
Features dual outputs for flexible PCB mounting solutions.
Compact dimensions of 32.6 mm length, 27.6 mm width, and 29.8 mm depth.
Encapsulated construction with vacuum-filled resin to resist aging and provide insulation above 4000 V.
Operates reliably at temperatures up to 70°C and frequencies between 50 Hz and 60 Hz.
Complies with EN 61558-2-6 safety standard for transformers.
Weighs approximately 70 grams, ideal for PCB installations.
Suitable for installation on printed circuit boards according to European grid standards.

Product Description

The Myrra 44167 is a high-quality 18 V AC 2 Output PCB Transformer designed for electronic applications requiring robust and safe power supply solutions. Operating from a 230 V AC primary voltage, it delivers 2.3 VA power, suitable for a wide range of PCB mounting needs.

This transformer features a compact form factor measuring 32.6 mm in length, 27.6 mm in width, and 29.8 mm in depth, with a lightweight design of 70 grams, making it ideal for space-constrained electronic assemblies. It is vacuum-filled with resin to enhance durability and ensure stable performance over time, resisting aging effects.

Engineered to meet EN 61558-2-6 standards, the product offers an isolation voltage of 4 kV and operates reliably within a temperature range up to 70°C and frequency range from 50 Hz to 60 Hz. The materials used are non-flammable and self-extinguishing, enhancing safety in electronic circuits. The transformer is inherently short circuit proof, adding to its reliability in industrial and electronic applications.

Provides 18 V AC secondary voltage from 230 V AC primary voltage input. Features dual outputs allowing coupling in series or parallel for various electronic configurations. Compact dimensions and lightweight for easy PCB mounting.

Vacuum resin encapsulation for long-term durability and insulation above 4000 V. Meets European grid installation standards with high safety approvals including UL 94-V0 and VDE 0551. Operates within frequency range of 50 to 60 Hz and maximum temperature of 70°C.

Constructed with non-flammable, self-extinguishing materials for enhanced fire safety. Short circuit proof design suitable for demanding electronic and industrial environments.

This PCB Transformer is ideal for use in power supplies, electronic device manufacturing, and industrial control equipment. Its compliance with safety standards makes it suitable for reliable use in laboratory, manufacturing, HVAC, and commercial electronic applications.
