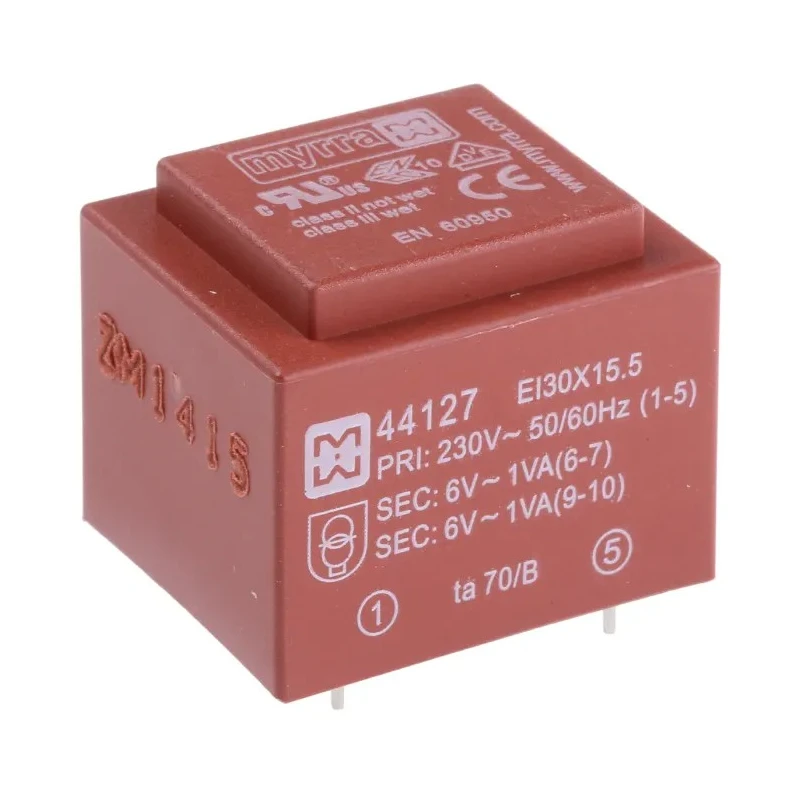

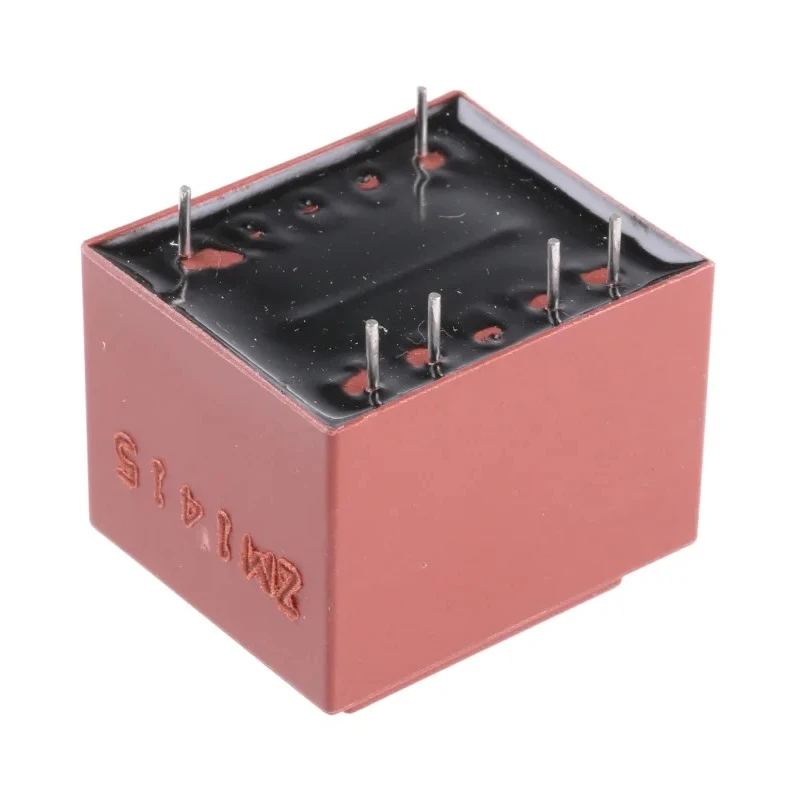

Myrra 6 V AC 2 Output PCB Transformer EN 61558-2-6 2 VA 230 V AC 50-60 Hz 44127

Myrra 44127 is a 6 V AC 2 Output PCB Transformer designed as a professional safety transformer with a power rating of 2 VA. It operates at a primary voltage of 230 V AC and provides dual secondary outputs at 6 V AC each. This transformer complies with safety standard EN 61558-2-6 and features insulation voltage of 4 kV, making it suitable for industrial and electronic PCB applications requiring reliable isolation and safety.

The compact dimensions of 32.6 mm length, 27.6 mm width, and 27.3 mm depth enable efficient PCB mounting in electronic assemblies. It is constructed using non-flammable, self-extinguishing materials and vacuum-filled with resin to enhance durability and resistance to aging effects. The transformer supports frequencies between 50 and 60 Hz and weighs approximately 100 grams, making it lightweight and suitable for sensitive electronics.

Myrra's 44000 series EI 30 type transformers are inherently short circuit proof and undergo 100% quality control using automated production lines. This model is designed for coupling in series or parallel where dual outputs are required. Mounting is specifically meant for printed circuit boards, allowing it to be firmly fixed and integrated into electronic devices. Fixing screws are not provided with the unit.

The Myrra 44127 transformer is manufactured in France and meets additional standards including UL 94-V0, VDE 0551, and IEC 742. It is ideal for use in industrial automation, power supplies, control panels, and other electronics that demand high safety and reliability. This product ensures safe voltage transformation while maintaining strong electrical isolation.

Operates at 230 V AC primary voltage input. Provides dual 6 V AC secondary outputs with 2 VA power. Compact PCB mount type with lightweight design. Complies with EN 61558-2-6 safety standard and 4 kV insulation voltage. Built with resin encapsulated, non-flammable materials for durability.

Suitable for frequencies from 50 Hz to 60 Hz. Manufactured in France with rigorous quality control. Designed for professional safety and industrial electronic applications. Short circuit proof with capability for series or parallel coupling.

Fixing screws not included. Explore the wide range of transformers and electronics components available at EnvMart for advanced industrial and laboratory applications.
