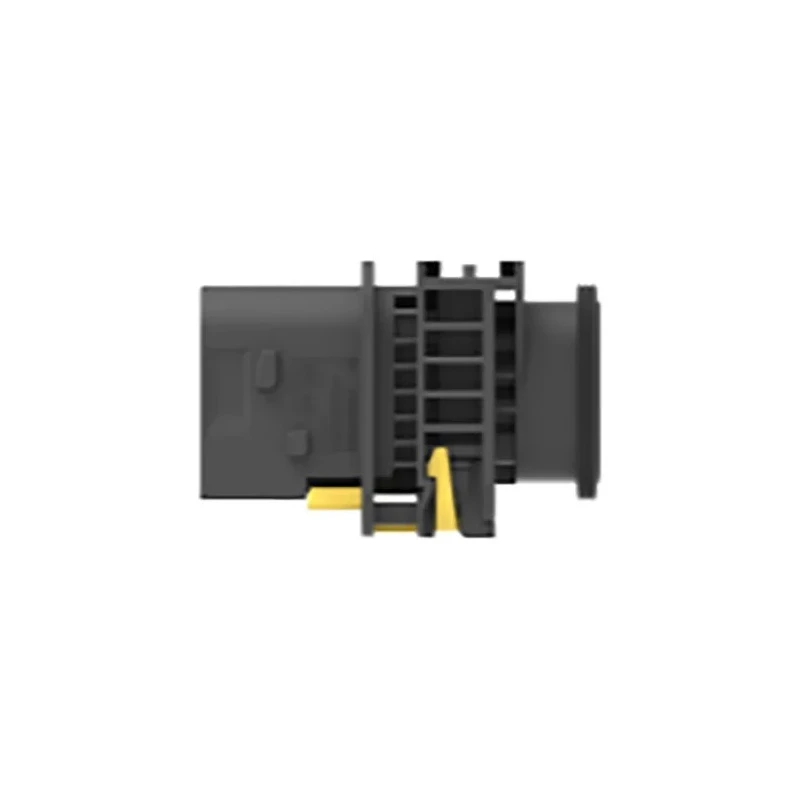

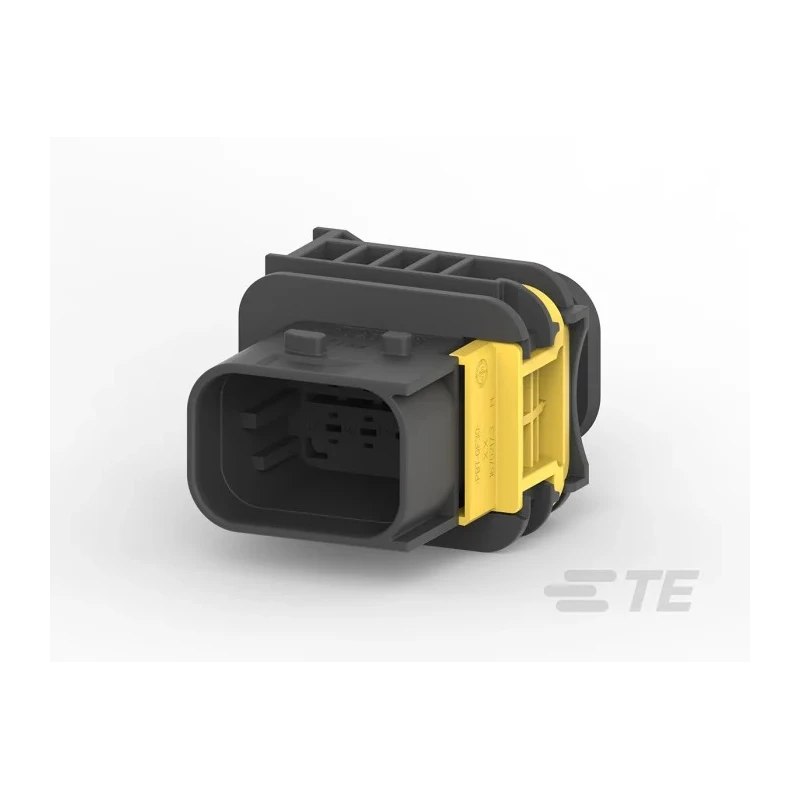

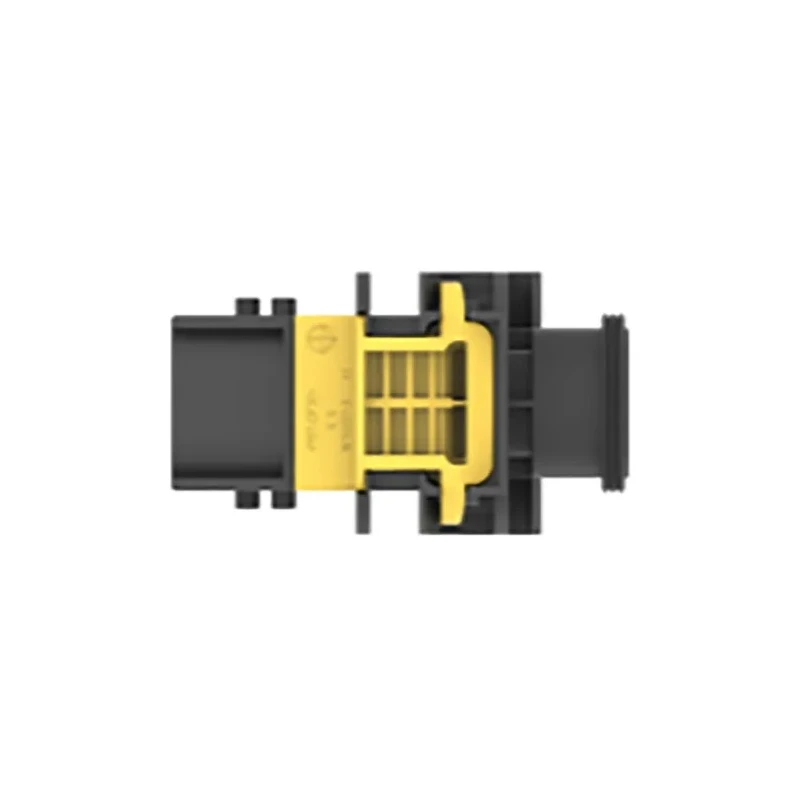

TE Connectivity HDSCS Automotive Connector Female Black Plug-in 8 Way Crimp Termination 1-1564512-1
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Current | 20A |
| Height | 27mm |
| Depth | 47.1mm |
| IP Rating | IP6K9K, IP67 |
| Width | 32.6mm |
| Gender | Female |
| Mount Type | Plug-in |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | HDSCS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 140°C |
| Sub Type | Tab Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | EU ELV, EU RoHS |
| Contact Plating | Tin |
| Number of Contacts | 8 |
Key Features
- The connector features 8 contacts arranged in 2 rows for secure electrical connections.
- It supports crimp termination and plug-in mounting for ease of installation.
- Rated for 20A current, suitable for demanding automotive electrical systems.
- Constructed with fibreglass reinforced polybutylene terephthalate housing and tin-plated contacts for durability.
- Offers excellent protection with IP6K9K and IP67 ingress protection ratings.
- Operates reliably in temperatures ranging from -40°C to 140°C.
- Complies with EU ELV and EU RoHS standards, ensuring environmental safety.
- Designed and manufactured in Germany to stringent quality standards.
Product Description
TE Connectivity 1-1564512-1 HDSCS Automotive Connector Female Black Plug-in 8 Way Crimp Termination is a heavy-duty, reliable connector engineered for automotive electrical systems. It accommodates 8 contacts in two rows and provides a secure crimp termination method combined with a plug-in mount type, facilitating robust cable to cable and cable to device connections.
The connector housing is made from fibreglass reinforced polybutylene terephthalate, enhancing mechanical strength and chemical resistance. Contacts are tin-plated to ensure optimal conductivity and corrosion resistance. Designed to handle up to 20 amps of current, it supports demanding automotive electrical applications requiring dependable performance.
Its environmental sealing meets IP6K9K and IP67 ratings, protecting against dust, water jets, and immersion. The temperature operation range spans from -40°C to 140°C, making it suitable for diverse and challenging automotive conditions. This connector series complies with important regulatory standards including EU ELV and RoHS, underlining its suitability for environmentally conscious manufacturing.
Typical applications include use in automotive wiring harnesses, industrial machinery, construction equipment, and other commercial vehicular electronics where rugged and sealed connections are essential.
The connector contains 8 contacts arranged in 2 rows for compact and efficient wiring. It supports crimp termination, providing secure and reliable contact retention. The housing material offers excellent durability and resistance to harsh environments.
IP6K9K and IP67 ratings ensure strong ingress protection, suitable for tough conditions. Operating temperature range from -40°C to 140°C supports wide environmental use. Complies with EU ELV and RoHS standards for environmental safety compliance.
Product is made in Germany, ensuring high manufacturing quality.
This TE Connectivity connector is ideal for use in automotive manufacturing, electrical installations in transportation, marine applications, and other industrial sectors requiring resilient connector solutions. Discover more high-quality connectors and automotive components in our extensive catalogue at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum current of 20A, making it suitable for demanding automotive electrical systems.
It has IP6K9K and IP67 ingress protection ratings, ensuring strong protection against dust and water immersion.
This model operates reliably in temperatures ranging from -40°C to 140°C, suitable for diverse automotive conditions.
It supports crimp termination, providing a secure and reliable connection.
The connector features 8 contacts arranged in 2 rows for efficient wiring.
The housing is made from fibreglass reinforced polybutylene terephthalate, enhancing its mechanical strength and chemical resistance.
The dimensions are 27mm in height, 32.6mm in width, and 47.1mm in depth.
Yes, it complies with EU ELV and EU RoHS standards, ensuring environmental safety.
It features a plug-in mount type, facilitating ease of installation.
The connector is designed and manufactured in Germany, ensuring high manufacturing quality.
Typical applications include automotive wiring harnesses, industrial machinery, and construction equipment requiring robust connections.
The contacts are tin-plated to ensure optimal conductivity and corrosion resistance.
