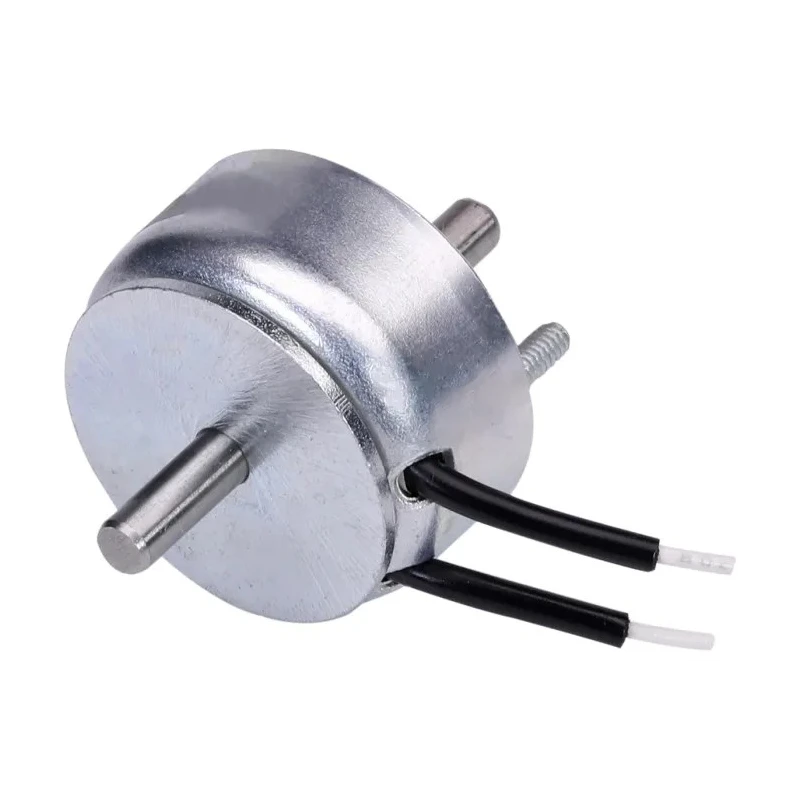

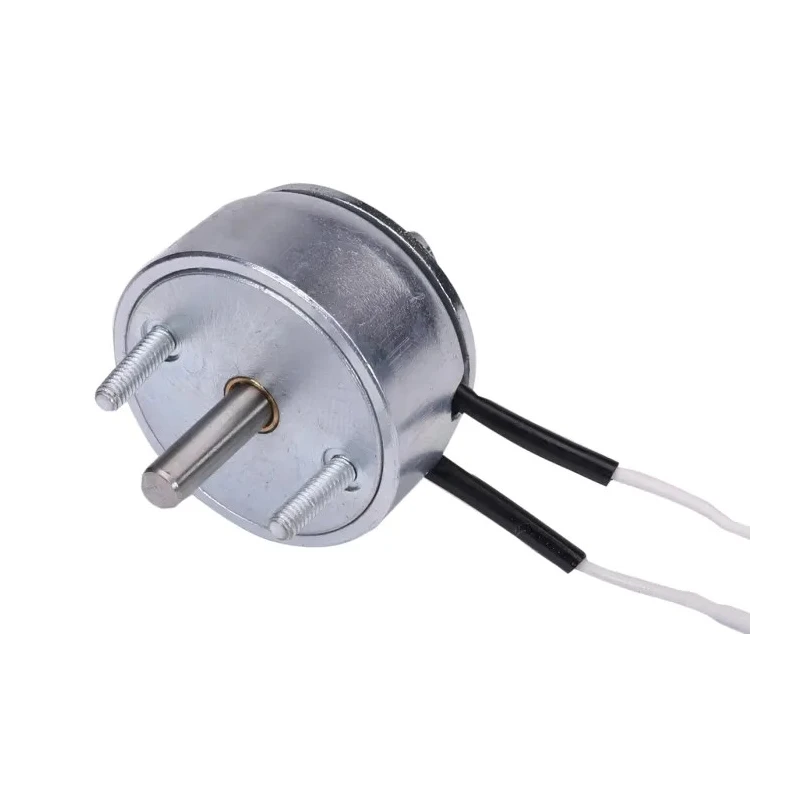

Johnson Electric Low Profile Linear Solenoid Push Pull Action 28.575 mm Length 70W Power Model 123421-036
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Johnson Electric |
| Length | 28.575mm |
| Duty Cycle | 100% |
| Series | Ledex Low Profile |
| Action | Push Pull |
| Maximum Stroke | 18mm |
| Coil Resistance | 112Ω |
| Magnetic Force | 845N |
| Closed Power Continuous | 70W |
| Johnson Electric Linear Solenoid, 25.4 Dia. x 25.8 mmBrand | Johnson Electric |
| Phoenix Contact STA Series Linear SolenoidBrand | Johnson Electric |
Key Features
- Compact low profile design optimizing magnetic flux for maximum force.
- Push pull action suitable for precise linear actuation.
- Maximum stroke length of 18 mm for versatile operation.
- Magnetic force output of 845 N delivering strong actuation force.
- Continuous duty cycle at 100% allowing long-lasting operation.
- Coil resistance of 112 ohms ensuring reliable electrical performance.
- Constructed for high reliability in demanding industrial environments.
- Ideal for pumps, packaging equipment, and instrumentation testing.
Product Description
Johnson Electric 123421-036 is a low profile linear DC solenoid designed for industrial automation systems requiring compact and powerful linear actuation. The solenoid's 28.575 mm length and push pull action provide precise control with a maximum stroke of 18 mm. Featuring a coil power consumption of 70 watts and a magnetic force of 845 newtons, this model offers high force in a small footprint.
The low profile design optimizes the magnetic flux path and includes an auxiliary flux path in the plunger assembly, significantly enhancing force output. This solenoid operates at 100% duty cycle, making it suitable for continuous use in demanding applications.
Built for reliability and long service life, it is widely used in industrial machinery such as pumps, packaging machines, and laboratory instrumentation. The coil resistance of 112 ohms supports stable electrical performance and durability.
This solenoid is manufactured in the United States and conforms to no specific standards or approvals, reflecting a focused design for performance and reliability. Compact low profile design optimizing magnetic flux for maximum force.
Push pull action suitable for precise linear actuation. Maximum stroke length of 18 mm for versatile operation. Magnetic force output of 845 N delivering strong actuation force. Continuous duty cycle at 100% allowing long-lasting operation.
Coil resistance of 112 ohms ensuring reliable electrical performance. Constructed for high reliability in demanding industrial environments. Ideal for pumps, packaging equipment, and instrumentation testing.
This product is a part of Johnson Electric’s Ledex Low Profile series, known for their space-saving design and excellent force-to-stroke ratio. Suitable for use in various industrial automation, electrical, and control gear applications.
Explore more products in the Linear Solenoids category at EnvMart for optimal solutions in industrial automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum stroke length of this model is 18 mm, allowing for versatile operation in various applications.
It delivers a magnetic force output of 845 N, providing strong actuation force for demanding tasks.
This linear solenoid has a power consumption of 70 watts, suitable for continuous operation.
The coil resistance is 112 ohms, ensuring reliable electrical performance during operation.
This model features a push pull action, allowing for precise linear actuation in various applications.
It operates at a 100% duty cycle, making it suitable for continuous use in demanding environments.
The solenoid has a length of 28.575 mm, contributing to its compact low profile design.
This product is manufactured in the United States, reflecting its quality and design standards.
It is part of the Ledex Low Profile series, known for its space-saving design and excellent force-to-stroke ratio.
It is ideal for use in pumps, packaging equipment, and laboratory instrumentation testing.
The compact low profile design optimizes the magnetic flux path, significantly enhancing the force output of the solenoid.
The auxiliary flux path in the plunger assembly enhances the force output, improving the overall performance of the solenoid.
