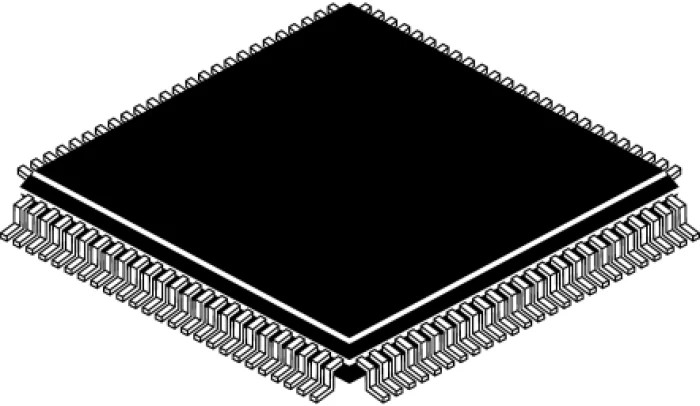

STMicroelectronics High-Performance 32-Bit ARM Cortex M3 Microcontroller 120 MHz 512kB FLASH 128kB RAM 100-Pin STM32F205VET6
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 24.1mm |
| Model | STM32F205VET6 |
| Width | 24.1mm |
| Mount Type | Surface |
| Series | STM32F2 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB OTG high-speed, USB OTG, CANs |
| Ram size | 128kB |
| Pin Count | 100 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 434mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | ARM Cortex M3 |
| Program Memory Size | 512kB |
| Maximum Clock Frequency | 120MHz |
| Number of Timers | 2, 12 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 12 Bit |
| Temperature ranges | -40 to +105 °C |
Key Features
- Features 100-Pin LQFP package suitable for surface mounting.
- Operates from 1.8V to 3.6V supply voltage range.
- Includes 16 channels of 12-bit ADC and 2 DACs for analog interfacing.
- Supports USB OTG high-speed, CAN, I2C, SPI, and USART interfaces.
- Designed for operation in temperature ranges from -40°C to 85°C.
- Incorporates advanced timers including PWM for motor control and real-time clock functionality.
- Low power consumption with multiple power-saving modes for efficient performance.
- Ideal for industrial, medical, automotive, HVAC, and control system applications.
Product Description
STMicroelectronics STM32F205VET6 is a high-performance 32-Bit ARM Cortex M3 microcontroller operating at 120 MHz with 512kB FLASH memory and 128kB RAM, offered in a 100-Pin LQFP surface mount package.
This microcontroller is designed for a wide range of embedded applications including motor drives, medical devices, industrial automation, alarm systems, video intercom, HVAC units, and home audio appliances.
The device features multiple integrated peripherals such as 16 channels of 12-bit ADCs, two 12-bit DACs, RTC, and advanced timers with PWM capabilities tailored for motor control applications.
It supports multiple communication interfaces including USB OTG high-speed, CAN, I2C, SPI, and USART, enabling flexible connectivity options.
Designed for robust operation in challenging environments, it supports an extended temperature range from -40°C to +85°C and offers multiple power-saving modes to enhance efficiency and battery life in embedded systems.
Features a 100-pin LQFP package for compact mounting and integration. Operates with supply voltage between 1.8V and 3.6V. Includes real-time memory accelerator (ART Accelerator™) for improved flash access time. Incorporates a true random number generator (RNG) to support security features.
Highly integrated with 12-bit ADCs, DACs, timers, and multiple communication ports. Optimized for industrial, laboratory, automotive, HVAC, and commercial embedded systems. Package dimensions: 24.1mm length x 24.1mm width x 1.45mm height.
Maximum power dissipation of 434mW ensures thermal reliability during complex tasks.
This microcontroller is a reliable choice for engineers and developers seeking to implement precise control, efficient processing, and versatile interfacing in embedded product designs.
Explore the STM32F2 series for advanced 32-bit ARM Cortex M3 Microcontrollers with pin-to-pin and software compatibility enabling scalable design solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F205VET6 microcontroller operates at a maximum clock frequency of 120 MHz.
This model features 128kB of RAM, providing ample memory for various embedded applications.
It operates with a supply voltage range of 1.8V to 3.6V, accommodating a variety of power supply configurations.
The STM32F205VET6 includes 16 channels of 12-bit ADC, enabling detailed analog interfacing.
This unit supports USB OTG high-speed, CAN, I2C, SPI, and USART interfaces for flexible connectivity options.
It comes in a 100-pin LQFP package type, suitable for surface mounting.
This microcontroller is designed to operate within a temperature range of -40°C to +85°C, making it suitable for various environments.
The maximum power dissipation for the STM32F205VET6 is 434mW, ensuring thermal reliability during operation.
Yes, it includes 2 DACs, each with 12-bit resolution, for analog output capabilities.
The dimensions of this microcontroller are 24.1mm in length, 24.1mm in width, and 1.45mm in height.
It belongs to the STM32F2 series, which is known for its high-performance ARM Cortex M3 microcontrollers.
This microcontroller is optimized for applications in industrial automation, medical devices, HVAC, and motor control, among others.
