STMicroelectronics 32 bit ARM Cortex M0 Microcontroller STM32F051K6U6TR, 48 MHz, 32kB FLASH, 32-Pin UFQFPN

STMicroelectronics STM32F051K6U6TR is a 32-bit ARM Cortex-M0 microcontroller designed for efficient embedded system applications. It operates at up to 48 MHz frequency and includes 32kB of Flash program memory and 4kB of RAM, packaged in a compact 32-pin UFQFPN surface mount package. This microcontroller supports a wide voltage range from 2V to 3.6V and can operate reliably across a temperature range of -40°C to 85°C, making it suitable for industrial and consumer electronic environments.

The STM32F0 series offers advanced peripherals such as multiple timers, analog-to-digital converters (13 x 12-bit ADC channels), a 12-bit digital-to-analog converter (DAC), and various communication interfaces including I²C, SPI, I²S, and USART. These peripherals enable complex signal processing, control, and interfacing capabilities in a small footprint device.

This microcontroller family includes 8 timers, such as 16-bit and 32-bit timers and an advanced control PWM timer, which are ideal for motor control and other timing-critical applications. The device also features two analog comparators and a maximum power dissipation of 526mW, ensuring efficient power management.

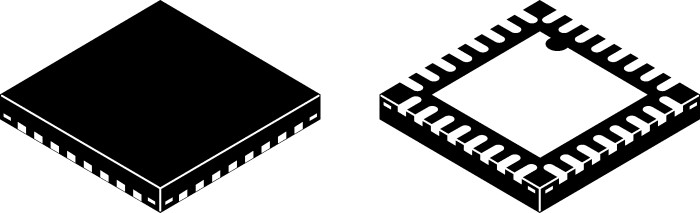

Its compact and thin UFQFPN package (5.1mm x 5.1mm x 0.55mm) facilitates high-density PCB layouts in space-constrained applications. The STM32F051K6U6TR is suited for a broad range of uses, including HVAC control, consumer electronics, handheld equipment, and PC peripherals, leveraging the ARM Cortex M0's real-time performance and low power consumption.

The STM32 platform is promoted for ease of development and integration, supported by design tools and a wide ecosystem. It is a reliable choice for designers seeking high performance at low cost and power for embedded applications.

Built on ARM Cortex-M0 core with 32-bit data bus width. Operates at a maximum clock frequency of 48 MHz for efficient processing. Includes 32kB Flash program memory and 4kB RAM for firmware and data storage. Features 13 channels of 12-bit ADCs and one 12-bit DAC for analog signal processing.

Offers 8 timers including 16-bit, 32-bit, and advanced control PWM timers. Wide operating voltage range from 2V to 3.6V ensuring flexible power supply options. Temperature range from -40°C up to 85°C suitable for various environments.

Compact dimensions of 5.1mm length by 5.1mm width and 550µm height package footprint. Suitable for embedded applications including HVAC, consumer appliances, and handheld devices. Program memory type is high-speed FLASH ensuring reliable execution and quick startup.
