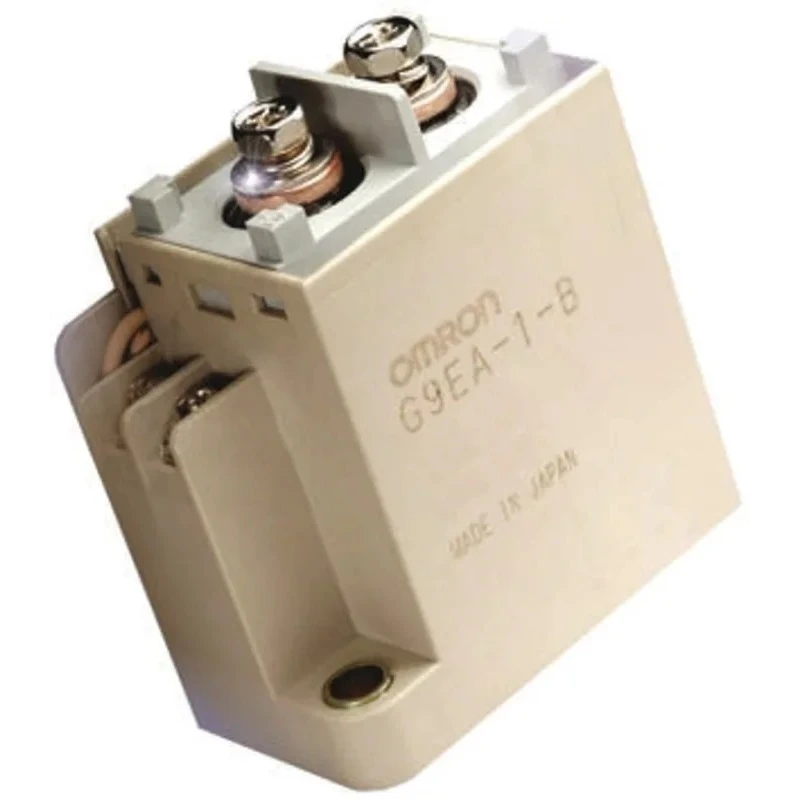

Omron Flange Power Relay 24V DC Coil 30A Switching Current SPST G9EA-1-B-CA DC24
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 67.2mm |
| Length | 73mm |
| Model | G9EA-1-B-CA DC24 |
| Width | 36mm |
| Mount Type | Flange |
| Series | G9EA |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 30A |
| Terminal type | Screw |
| Contact Resistance | 10mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 115.2Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 400V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 5W |
| Switching Power | 5W |
Key Features
- Capable of interrupting high capacity DC loads with gas injected and hermetically sealed construction.
- Compact size with dimensions of 73mm length, 36mm width, and 67.2mm height.
- Switching voltage rating up to 400V DC and 400V AC using screw terminals for connection.
- Operates reliably between -40°C to 70°C ambient temperature.
- Coil resistance of 115.2 Ω and coil power consumption of 5W.
- Contact resistance of 10 mΩ ensures low power loss.
- Meets CSA and UL safety standards with country of origin Japan.
Product Description
Omron G9EA-1-B-CA DC24 flange power relay features a robust 24V DC coil designed for switching currents up to 30A in a SPST contact configuration, delivering reliable performance in demanding industrial and automation applications.
This power relay is built with gas injected, hermetically sealed construction to safely interrupt high capacity DC loads, capable of switching up to 400V DC and 400V AC voltages. The compact form factor with dimensions measuring 73mm in length, 36mm in width, and 67.2mm in height suits compact panel assemblies.
The relay coil has a resistance of 115.2 Ω and consumes 5 watts of power. It operates efficiently in a broad temperature range from -40°C minimum to 70°C maximum operating temperature, ensuring durability under harsh environments.
The screw terminal type connection offers secure and maintenance-friendly wiring. The contact resistance is very low at 10 milliohms, minimizing energy losses during operation.
This relay conforms to internationally recognized safety approvals from CSA and UL, representing quality and safety compliance. It is manufactured in Japan, reflecting high build standards.
Robust DC power relay for industrial, electrical, automation, and control applications. Compact flange mounting enables flexible placement in control panels. Handles high voltage and current switching with low noise operation.
Wide temperature range supports varied environmental conditions. Certified to CSA and UL standards to ensure operational safety.
Suitable for use in manufacturing equipment control systems, power distribution panels, HVAC systems, and other electrical automation installations. Find more power relay options and industrial electrical components in EnvMart's comprehensive catalog.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle a switching current of up to 30A.
It has dimensions of 73mm in length, 36mm in width, and 67.2mm in height.
The coil voltage for this relay is 24V DC.
It can switch voltages up to 400V DC and 400V AC.
The relay features screw terminals for secure connections.
The contact configuration is SPST (Single Pole Single Throw).
It operates efficiently within a temperature range of -40°C to 70°C.
The contact resistance is 10 milliohms, which minimizes energy losses during operation.
The coil resistance is 115.2 Ω, and it consumes 5W of power.
It meets CSA and UL safety standards, ensuring quality and safety compliance.
This model is manufactured in Japan.
It is suitable for use in manufacturing equipment control systems, power distribution panels, and HVAC systems.
