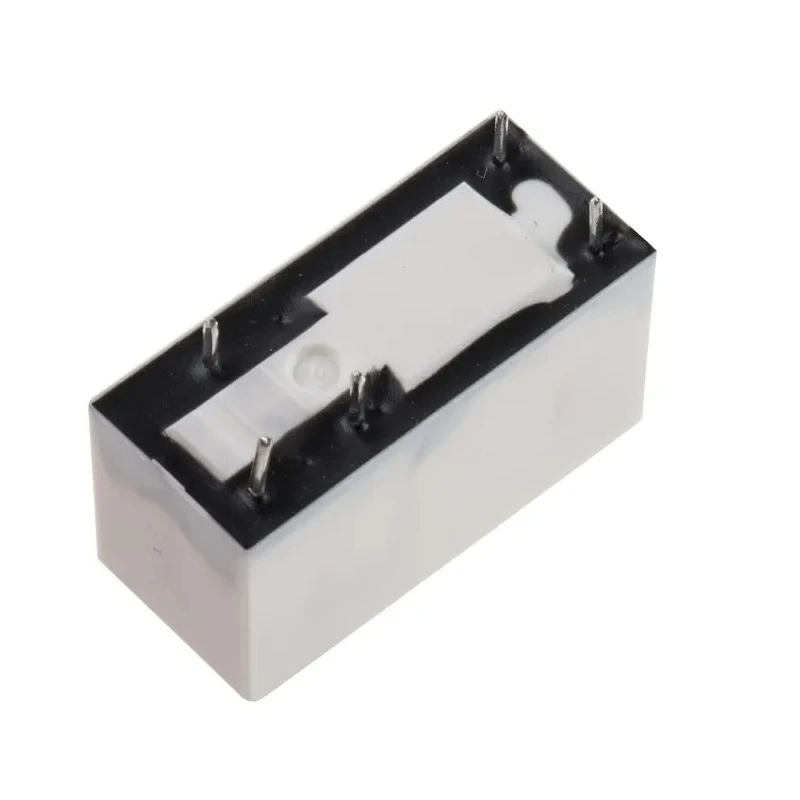

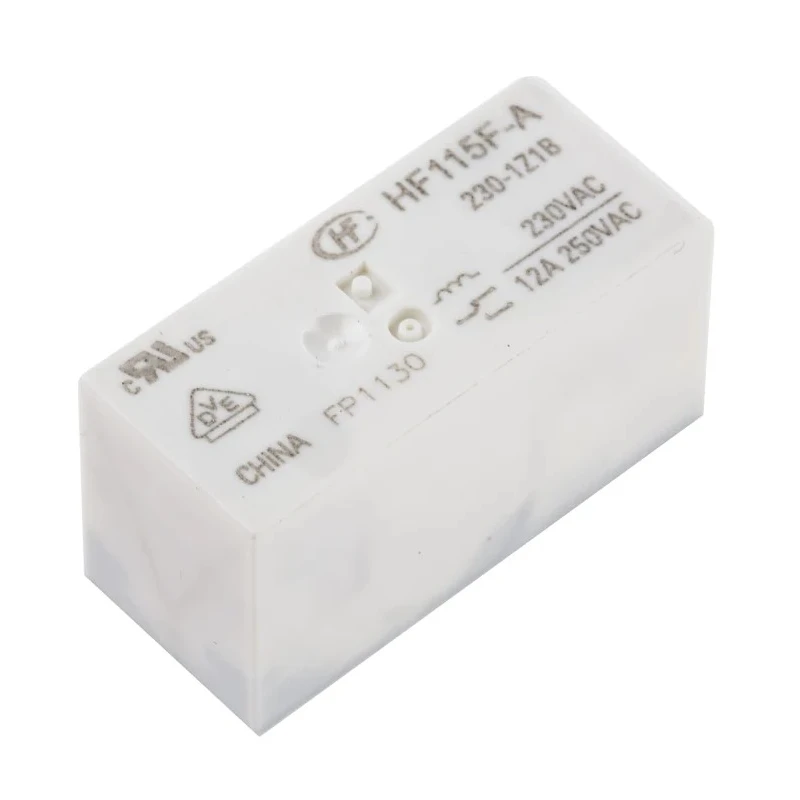

RS PRO PCB Power Relay 230V AC Coil 12A Switching Current SPDT 800-4479

RS PRO model 800-4479 is a high quality PCB power relay designed for industrial and electronic applications requiring reliable switching capabilities. It features a 230V AC coil voltage and SPDT contact configuration with 12A switching current capacity. This relay supports a switching power of up to 3kVA, making it suitable for handling moderately high power electrical loads.

Constructed with silver alloy contacts, it ensures low contact resistance of 100mΩ for efficient signal and power transfer. The coil resistance is 32.5kΩ and it consumes a coil power of 750mW for activation. This product exhibits a low profile form factor with a maximum height of 15.7mm, length of 29mm, and width of 12.7mm for easy integration on PCBs.

Equipped to handle a high inrush current rated TV-5 80A at 125Vac, the relay can switch demanding loads with short duration surges without degradation. The relay mechanism includes a solder terminal type and 5mm pinning suitable for secure soldered installation on printed circuit boards.

The component is designed for operation in industrial temperature ranges from -40°C to 70°C, allowing usage in harsh environmental conditions. Electrical insulation and robustness are ensured with a dielectric strength of 5kV between coil and contacts and surge voltage resistance up to 10kV, enhancing longevity and safety.

This relay complies with international safety and quality standards including IEC 60335-1, UL (File no. E134517), VDE (File no.116934), and CQC (File no. CQC02001001951), assuring compliance with stringent industrial regulations.

Designed for PCB mounting with solder terminals for secure installation. 230V AC coil voltage and SPDT contact configuration. Switching current up to 12A and switching power of 3kVA. Compact size with dimensions 29mm x 12.7mm x 15.7mm (LxWxH).

High inrush current rating of 80A at 125Vac. Low contact resistance of 100mΩ and silver alloy contacts. Wide operating temperature range from -40°C to 70°C. High dielectric strength and surge voltage tolerance. Certified to UL, VDE, CQC, and IEC standards.

Ideal for automation, power management, and control applications.

This RS PRO power relay is ideal for use in industrial automation, HVAC systems, manufacturing control panels, and other electronic equipment requiring reliable high-current switching. Its robust construction and international approvals make it a dependable component for engineers and system integrators.
