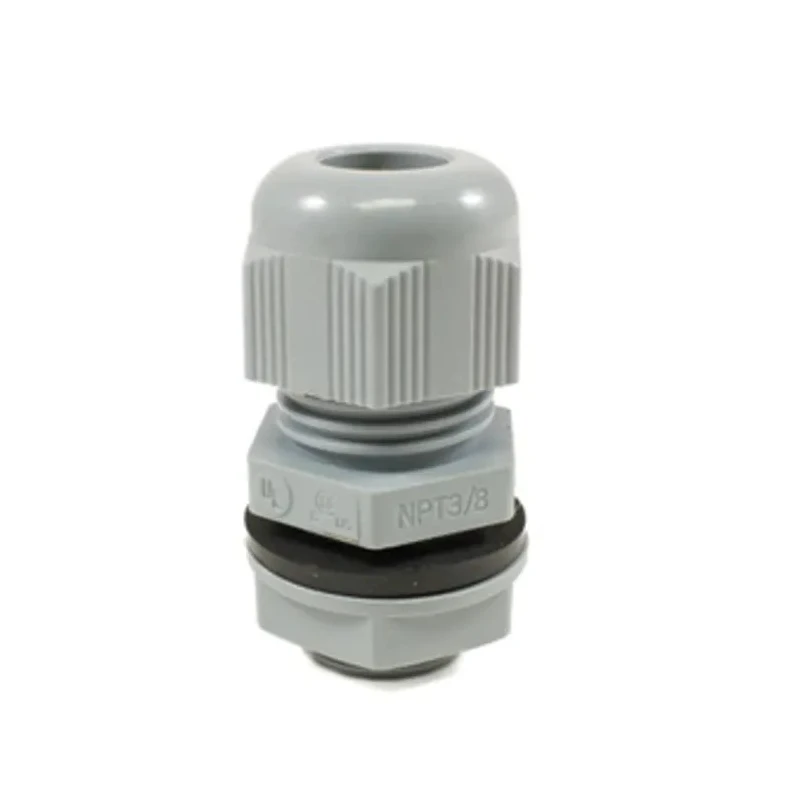

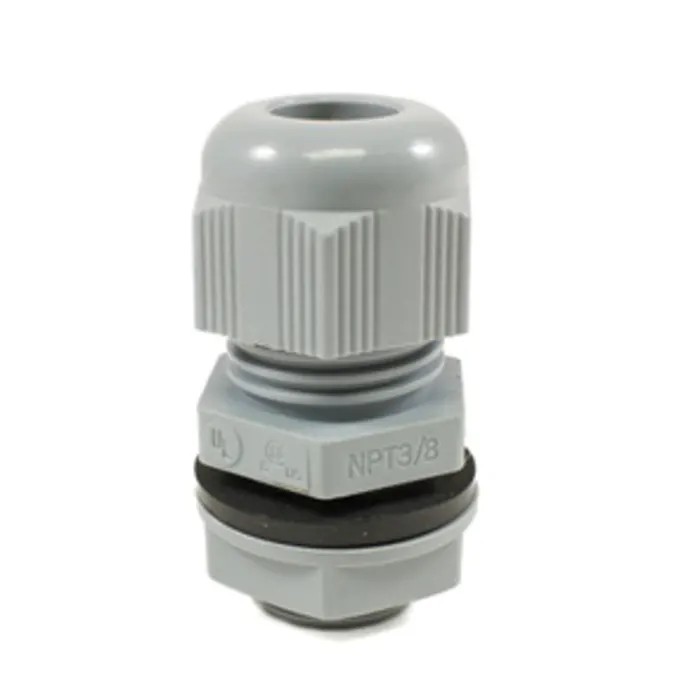

Alpha Wire FIT Wire Management Series Slate Chloroprene Rubber Polyamide Cable Gland PG13.5 Thread Size 6-12 mm PPC13 SL080
Specifications
| Country of Origin | India |
|---|---|
| Brand | Alpha Wire |
| Material | Chloroprene Rubber, Polyamide |
| Colour | Slate |
| Temperature range | -20°C to +100°C (Permanent), -30°C to +150°C (Intermittent) |
| Model | PPC13 SL080 |
| IP Rating | IP66, IP68 |
| Series | FIT Wire Management |
| Maximum Operating Temperature | 150°C |
| Thread Size | PG13.5 |
| Minimum Operating Temperature | -20°C |
| Thread Length | 10 mm |
| Clamping Range | 6 - 12 mm |
| Thread Diameter | 20.4 mm |
| Standards/Approvals | CSA, UL 514, UL 94V-2 |
| Maximum Cable Diameter | 12mm |
| Minimum Cable Diameter | 6mm |
| Flammability | V2 (According to UL94) |
Key Features
- The gland provides robust strain relief and protection against dust and water ingress.
- Constructed with durable Chloroprene Rubber O-ring and Polyamide 6 body for long-lasting use.
- Suitable for cables with diameters between 6 mm minimum and 12 mm maximum.
- Rated IP66 and IP68, offering excellent resistance in demanding industrial environments.
- Supports operating temperatures ranging from -20°C to +150°C intermittently.
- Includes a locknut for secure installation and maintains reliable mechanical strength.
- Designed according to CSA and UL standards including UL 514 and UL 94V-2 flammability rating.
- Thread length of 10 mm and thread diameter of 20.4 mm ensure compatibility and firm fixing.
Product Description
Alpha Wire PPC13 SL080 is part of the FIT Wire Management Series offering precision-engineered Cable Glands. This cable gland features a PG13.5 size thread and is constructed from high-quality Polyamide 6 along with a Chloroprene Rubber O-ring seal in a distinctive Slate color.
It is engineered to provide excellent strain relief, mechanical protection, and environmental sealing for cable installations in industrial, electrical, automation, and telecommunications applications.
The gland supports clamping cable diameters ranging from 6 mm minimum to 12 mm maximum and has a thread length of 10 mm and diameter of 20.4 mm for secure mounting. It is designed to withstand operating temperatures from -20°C to +100°C for continuous use and up to +150°C intermittently, accommodating harsh conditions.
Rated IP66 and IP68, it offers outstanding protection against dust, dirt, and water ingress, making it ideal for durability in outdoor and industrial setups. The gland includes a locknut to ensure stable fixation and superior sealing performance.
Compliance with standards such as CSA, UL 514, and UL 94V-2 flammability rating, ensures safety and reliability in electrical and instrumentation environments. The flammability rating V2 indicates the material self-extinguishes within 30 seconds, enhancing safety in demanding applications.
The gland ensures reliable strain relief and cable protection. Constructed with durable Polyamide and Chloroprene Rubber for sealing. Supports cable diameters between 6 to 12 mm. Rated for harsh environments with IP66 and IP68 protection.
Temperature range supports operation up to 150°C intermittently. Includes locknut for secure installation. Compliant with CSA and UL electrical standards. Features a 10 mm thread length and 20.4 mm thread diameter.
This Alpha Wire Cable Gland is suitable for telecommunications, control, instrumentation, electrical power, and data cable applications requiring secure and protected cable entry and strain relief solutions.
Explore more high-quality wire and cable management products in the Alpha Wire range at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a clamping range for cables with diameters between 6 mm minimum and 12 mm maximum.
It is rated IP66 and IP68, providing excellent protection against dust and water ingress in demanding environments.
The gland is constructed from Chloroprene Rubber for sealing and Polyamide for the body.
It operates at temperatures ranging from -20°C to +100°C for continuous use and can withstand up to +150°C intermittently.
The thread size is PG13.5, with a thread length of 10 mm and a thread diameter of 20.4 mm.
It complies with CSA, UL 514, and has a UL 94V-2 flammability rating.
Yes, it includes a locknut to ensure secure installation and stable fixation.
It is suitable for telecommunications, control, instrumentation, electrical power, and data cable applications.
The flammability rating is V2 according to UL 94, indicating it self-extinguishes within 30 seconds.
The country of origin is India.
This cable gland is part of the FIT Wire Management Series by Alpha Wire.
