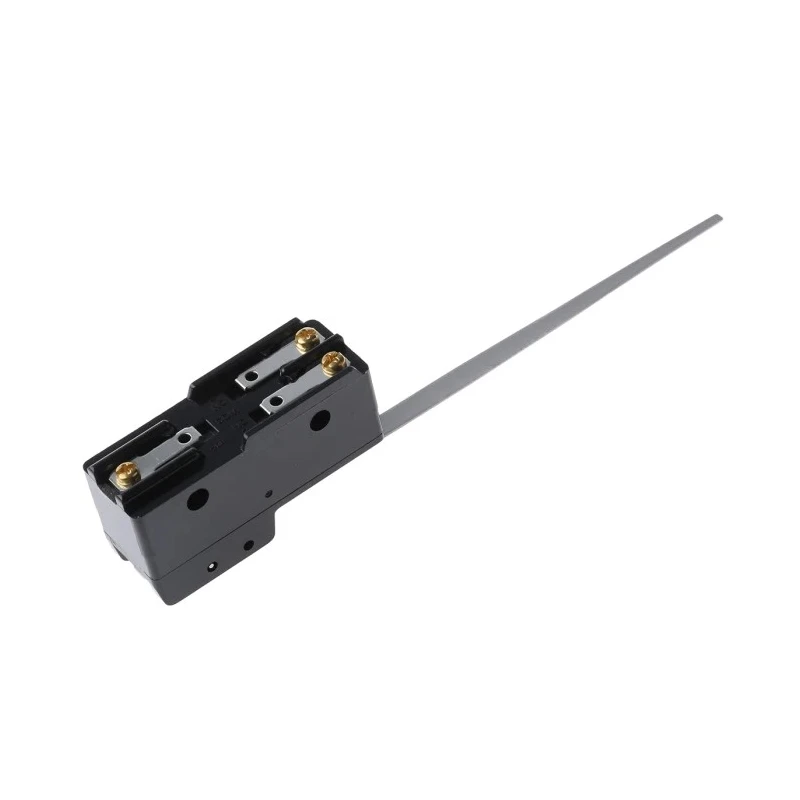

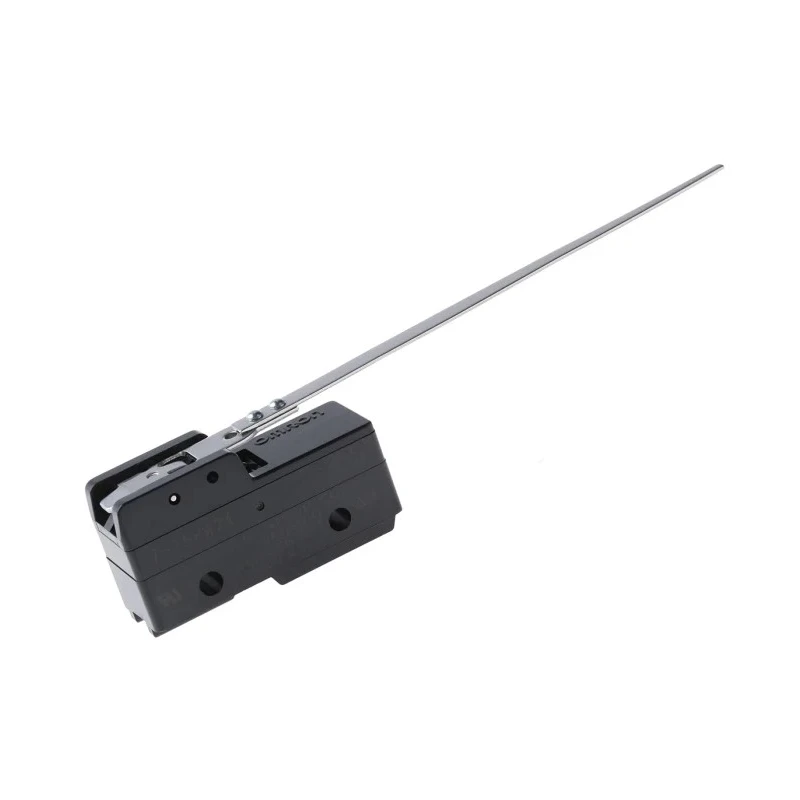

Omron Z Series Lever Limit Switch SPDT 15A 500V AC Thermosetting Resin Housing IP00
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Length | 49.2mm |
| Model | IP00 |
| Depth | 17.45mm |
| IP Rating | IP00 |
| Width | 29.4mm |
| Housing Material | Thermosetting Resin |
| Series | Z |
| Maximum Operating Temperature | 80°C |
| Mounting Orientation | Multi Directional |
| Contact Configuration | SPDT |
| Actuator Type | Lever |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 15A |
| Terminal type | Solder |
| Standards/Approvals | CCC, CE, CSA, UL |
| Operating Force | 58.8mN |
| Mechanical Life | 20000000Operations |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 500V ac |
Key Features
- Features a lever actuator for manual operation flexibility.
- Utilizes thermosetting resin housing rated IP00 for durable insulation.
- Operates reliably up to 500V AC and 250V DC voltage levels.
- Equipped with solder terminals for secure electrical connections.
- Designed for a mechanical life of 20 million operations.
- Suitable for multi-directional mounting and diverse industrial applications.
- Complies with CCC, CE, CSA, and UL standards and approvals.
- Operates effectively within a temperature range of -25°C to 80°C.
Product Description
Omron Z Series Lever Limit Switch model Z-15HW24 is engineered for precise and reliable operation in demanding industrial automation systems. This lever actuator switch features a Single Pole Double Throw (SPDT) contact configuration with snap action contact type, ensuring fast and consistent switching performance critical for machinery safety and control.
The switch housing is constructed from a durable thermosetting resin material providing robust insulation and protection. It supports a maximum switching current of 15A and can safely handle switching voltages of up to 500V AC and 250V DC, making it suitable for a wide range of electrical control circuits.
Designed for longevity, the switch supports a mechanical life expectancy of 20 million operations coupled with a low operating force of 58.8 mN for smooth actuation. Its multi-directional mounting adaptability facilitates flexible installation in various machine assemblies and conveyor systems. The solder terminal type ensures secure and reliable electrical connections.
This model complies with prominent safety and quality certifications including CCC, CE, CSA, and UL, assuring compliance with international standards. It operates efficiently within the ambient temperature range of -25°C to +80°C, suitable for diverse industrial environments.
Common applications include precision positioning, safety interlocks, and motor control in automated manufacturing, packaging, and material handling systems. The compact form factor with dimensions approximately 49.2 mm length, 29.4 mm width, and 17.45 mm depth supports integration into space-constrained control panels.
Features a lever actuator for manual operation flexibility. Utilizes thermosetting resin housing rated IP00 for durable insulation. Operates up to 500V AC and 250V DC for versatile electrical circuits. Equipped with solder terminals for secure electrical connections.
Designed for a mechanical life of 20 million operations. Supports multi-directional mounting orientation. Complies with CCC, CE, CSA, and UL international standards. Operating temperature range from -25°C to 80°C. Explore more Omron Limit Switches and related automation components in our comprehensive category to meet your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 15A.
It can safely handle switching voltages of up to 500V AC and 250V DC.
This limit switch is designed for a mechanical life of 20 million operations.
It operates efficiently within a temperature range of -25°C to +80°C.
This model features a lever actuator for manual operation flexibility.
The dimensions are approximately 49.2 mm in length, 29.4 mm in width, and 17.45 mm in depth.
It is equipped with solder terminals for secure electrical connections.
Yes, it supports multi-directional mounting orientation.
It complies with CCC, CE, CSA, and UL standards and approvals.
The contact configuration is Single Pole Double Throw (SPDT).
The housing is constructed from thermosetting resin, providing robust insulation.
It uses a snap action contact type for fast and consistent switching performance.
