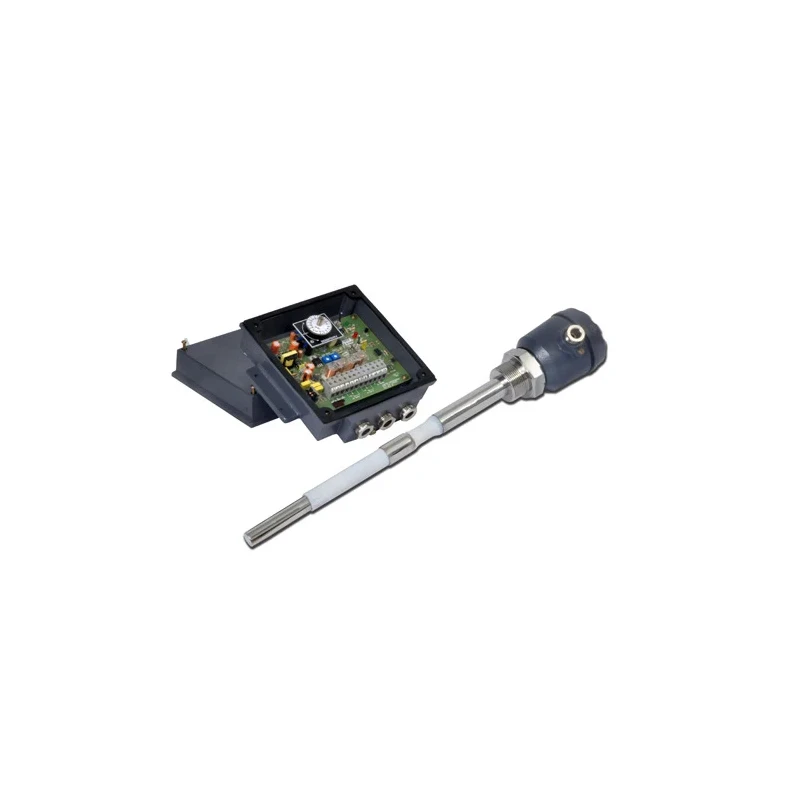

Intelligent Admittance Level Limit Switch 5 VA Power Consumption with LCD Display
Specifications
| Country of Origin | India |
|---|---|
| Power Consumption | 5 VA approx. |
| Response time | 0.2 Second. Typical. |
| Ambient Temperature (ºC) | 20 ºC to 60 ºC |
| Housing | Cast aluminum Weather-proof Stoving enamel painted suitable for back panel/wall mounting. |
| Cable entry | 3 Nos. of BSP/NPT/NG20 |
| Switching delay | Programmable up to 99 Second. For probe covered/uncovered condition for each set point. |
| Switching Hysteresis | Approx. 0.5 pF at initial Programmable over |
| Mains | 110/230 V AC (-10 to + 10%) 50 Hz (as specified in order). |
| Indication (Switching) | Red LED for each level alarm red LED for fault alarm flashing green LED as heart-beat for healthy condition. |
| Indication (Calibration) | LCD one digit for mode field and two digits for data field. |
| Connection to | 2-core ordinary cable |
| Electronic Insert | Having max. resistance of 25 W per core. |
| Initial Capacitance | 20 to 1200 pF. |
| Single Point Operation | Capacitance of 30 pF. |
| Two Point Pump Control | Entire setting range. |
Key Features
- Excellent Performance
- Light in weight
- Accurate measurement
- Easy and fast installation
Product Description
SIPL Intelligent Admittance Level Limit Switch 5 VA Power Consumption with LCD Display, A level switch is an electrical or mechanical method for measuring the level of a liquid, powder, or granule material. Level switches are an essential part of production operations and are used in harsh conditions with extremes in temperature, pressure, and vibrations.
- Resistant to variation in process temperature
- Self Diagnosis
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power consumption is approximately 5 VA.
It operates within an ambient temperature range of 20 ºC to 60 ºC.
The housing is made of cast aluminum, weather-proof, and stoving enamel painted, suitable for back panel or wall mounting.
The switching delay is programmable up to 99 seconds for probe covered/uncovered conditions for each set point.
It requires a 2-core ordinary cable for connection.
The typical response time is 0.2 seconds.
It features a red LED for each level alarm, a flashing red LED for fault alarms, and a flashing green LED indicating a healthy condition.
The initial capacitance range is between 20 to 1200 pF.
It operates on 110/230 V AC with a tolerance of -10 to +10% at 50 Hz, as specified in the order.
The LCD provides one digit for mode field and two digits for data field, facilitating easy calibration and monitoring.
The switching hysteresis is approximately 0.5 pF at initial settings and is programmable.
The Intelligent Admittance Level Limit Switch is manufactured in India.
