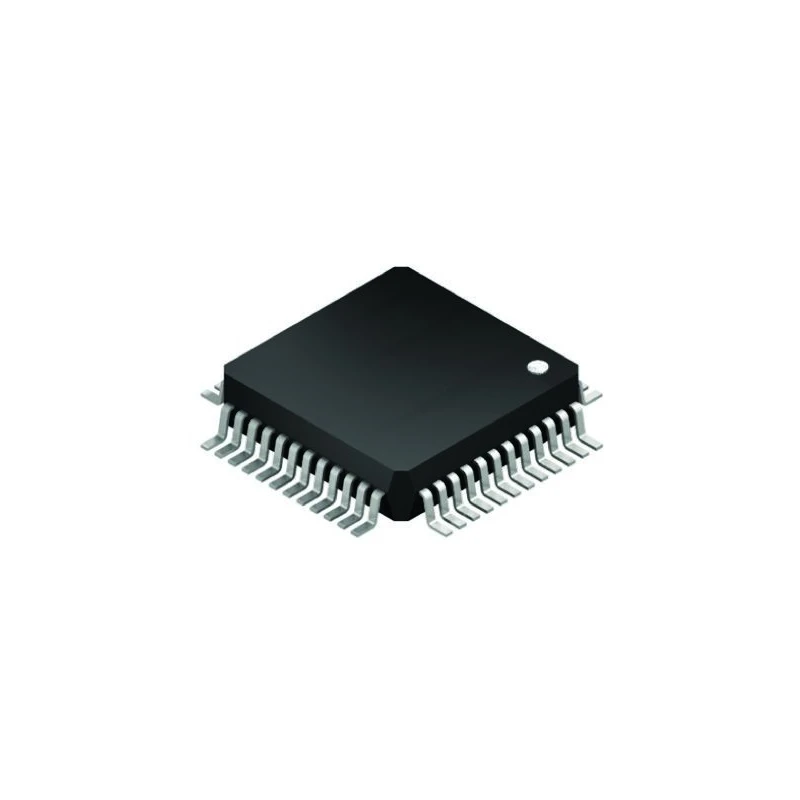

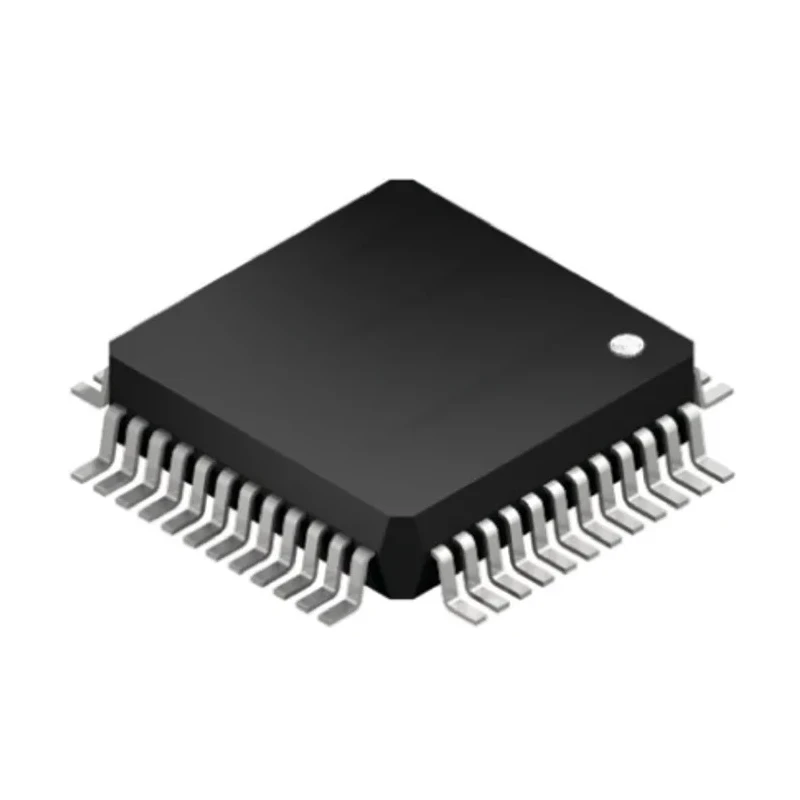

STMicroelectronics 32 bit ARM Cortex M0 Microcontroller STM32F051C4T6 48 MHz 16kB FLASH 48-Pin LQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 7.2mm |
| Model | STM32F051C4T6 |
| Width | 7.2mm |
| Mount Type | Surface |
| Series | STM32F0 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 4kB |
| Pin Count | 48 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 364mW |
| Minimum Supply Voltage | 2V |
| Device Core | ARM Cortex M0 |
| Program Memory Size | 16kB |
| Maximum Clock Frequency | 48MHz |
| Analogue Comparators | 2 |
| Number of Timers | 8 |
| Instruction Set Architecture | RISC |
| ADCs | 13 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 12 Bit |
| Temperature ranges | -40°C to +85°C or -40°C to +105°C temperature |
| Cortex™-M0 | 48MHz Frequency |
| STM32F05 | Flash memory up to 32kB, SRAM up to 4kB |
Key Features
- The ARM Cortex M0 core operates at 48 MHz frequency for efficient processing.
- Includes 16kB of Flash program memory with 4kB RAM for fast data access.
- Equipped with multiple timers including eight timers and advanced PWM timer.
- Features 13 ADC channels with 12-bit resolution and one 12-bit DAC for analog interfacing.
- Operating voltage ranges from 2V to 3.6V supporting low power applications.
- Compact LQFP package with 48 pins measuring 7.2 x 7.2 x 1.45 mm for easy surface mounting.
- Wide operating temperature range from -40°C to +85°C suitable for industrial environments.
- Supports communication interfaces including I²C, SPI, I²S, and USART.
Product Description
STMicroelectronics STM32F051C4T6 is a high-performance 32-bit ARM Cortex M0 microcontroller designed for embedded system applications. Operating at a maximum frequency of 48 MHz, this microcontroller features 16kB of Flash memory and 4kB of RAM, housed in a compact 48-Pin LQFP package measuring 7.2 mm in length and width, and 1.45 mm in height, allowing surface mount implementation.
The STM32F051C4T6 supports versatile peripherals such as 13 channels of 12-bit ADCs and one 12-bit DAC, enabling precise analog signal processing. It includes 8 timers, including 16-bit and 32-bit timers, and an advanced control PWM timer, suitable for real-time control tasks.
This microcontroller operates on a power supply range of 2V to 3.6V and can function reliably in temperatures from -40°C to +85°C, ensuring suitability for industrial and commercial applications. Communication interfaces supported include I²C, SPI, I²S, and USART, facilitating integration with other embedded systems.
Its RISC-based 32-bit ARM Cortex M0 core provides efficient processing capabilities with low power consumption, making it ideal for HVAC control systems, consumer appliances, handheld electronics, PC peripherals, and many other embedded applications.
The ARM Cortex M0 core runs at up to 48 MHz frequency. Equipped with 16kB FLASH memory and 4kB RAM for program and data storage. Includes 13 channels of 12-bit ADCs and 1 x 12-bit DAC for analog interfacing. Features multiple timers including 8 standard timers and a PWM advanced control timer.
Supports communication protocols such as I²C, SPI, I²S, and USART for versatile interfacing. Compact 48-pin LQFP surface mount package measuring 7.2 x 7.2 x 1.45 mm. Operates over a voltage range of 2V to 3.6V and temperature range of -40°C to +85°C.
Designed for embedded, industrial, HVAC, consumer electronics, and application control uses.
STMicroelectronics STM32F051C4T6 microcontrollers embody a balance of real-time performance and low power consumption on the STM32 platform with broad industrial and commercial applications. Browse EnvMart's selection of Microcontrollers for efficient embedded solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F051C4T6 microcontroller operates at a maximum frequency of 48 MHz.
It includes 16kB of Flash program memory and 4kB of RAM for data storage.
This microcontroller is housed in a 48-Pin LQFP package, measuring 7.2 mm x 7.2 mm x 1.45 mm.
The operating voltage range is from 2V to 3.6V.
It supports I²C, SPI, I²S, and USART communication interfaces.
The STM32F051C4T6 operates reliably in temperatures ranging from -40°C to +85°C.
It features 13 channels of 12-bit ADCs for analog signal processing.
It includes eight timers, which consist of both 16-bit and 32-bit timers, along with an advanced control PWM timer.
This microcontroller is based on the ARM Cortex M0 core architecture.
The maximum power dissipation for the STM32F051C4T6 is 364 mW.
It is suitable for embedded applications including HVAC control systems, consumer appliances, and handheld electronics.
The instruction set architecture for this model is RISC.
